CORRRUGATE Matrix for Elimination of Cracking, Registration, Runnability and Adhesion Problems in Corrugated Board

FOB Price

Negotiable / Box

5 Boxes(Min. Order)

Port Beijing/Tianjin/Shanghai/Guangzhou
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Plastic	Industrial Use	Other, Printint and packaging
Place of Origin	Beijing, China	Brand Name	Shengli, Shengli
Model Number	0.6 x 2.5, 0.6 x 2.5

Product Description

Specifications

1. Easiest operation
2.Larger range of sizes.
3.Greatly improve the overall result of a job and is quickly becoming the norm.

CORRUGATE - Standard

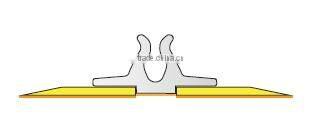

Corrugate matrix reduces knuckling by creating a holding form in which to crease, the result is a more accurate and better-defined crease, while overall appearance is improved.

Corrugate has a base that was much wider than traditional products, giving stronger adhesion to the plate and reducing movement of the matrix, poor registration and even failure to crease.

Corrugate eliminated unsightly parallel ‘witness’ marks and cushioned the impact of the crease.

• All sizes stated come with a standard 3/4 point locator.
• All sizes are positioned on a 20mm base.
• Box holds 32 x 75cm strips = 24 metres.

Dimensions	H x W (mm)	H x W (mm)	H x W (mm)	H x W (mm)
Base colour	Yellow	Orange	Green	Blue
	0.6 x 2.5	0.7 x 2.5	0.8 x 2.5	1.0 x 2.5
	0.6 x 2.7	0.7 x 2.7	0.8 x 2.7	1.0 x 2.7
	0.6 x 3.0	0.7 x 3.0	0.8 x 3.0	1.0 x 3.0
	0.6 x 3.2	0.7 x 3.2	0.8 x 3.2	1.0 x 3.2
	0.6 x 3.5	0.7 x 3.5	0.8 x 3.5	1.0 x 3.5
	0.6 x 4.0	0.7 x 4.0	0.8 x 4.0	1.0 x 4.0
	0.8 x 5.0	1.0 x 5.0
	0.8 x 6.0	1.0 x 6.0
	1.0 x 7.0
	1.0 x 8.0
	1.0 x 9.0
	1.0 x 10.0
