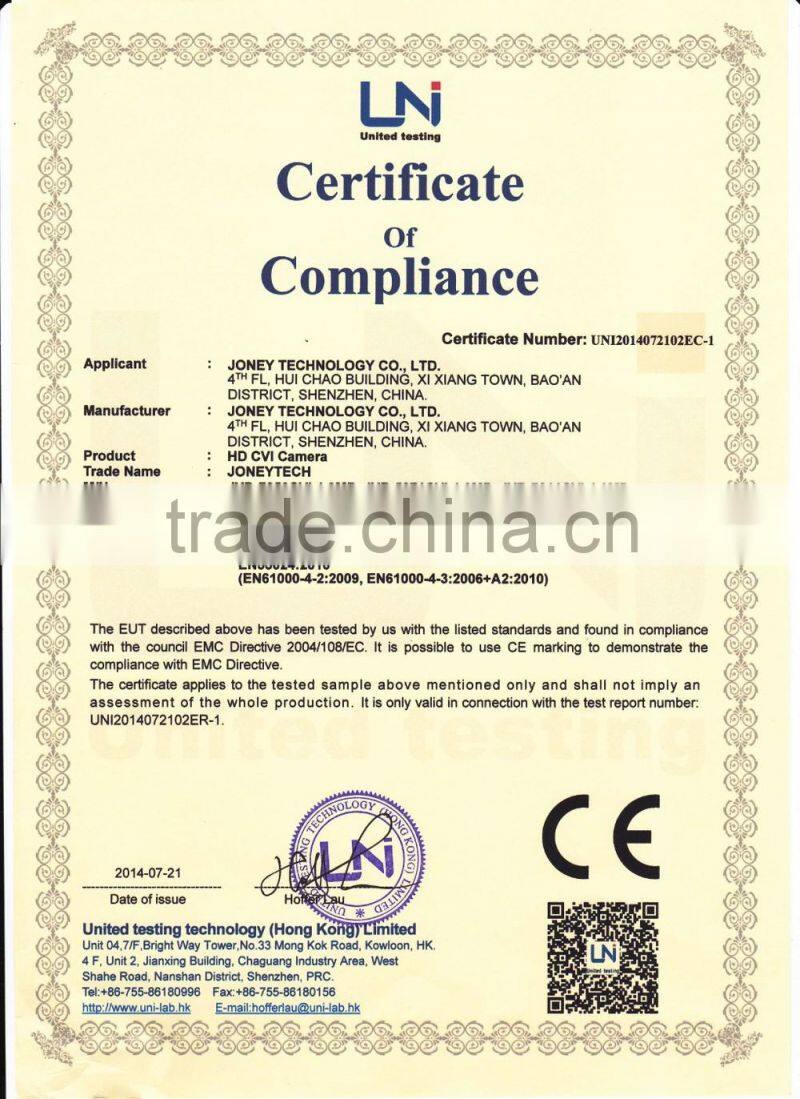

CE Certificate

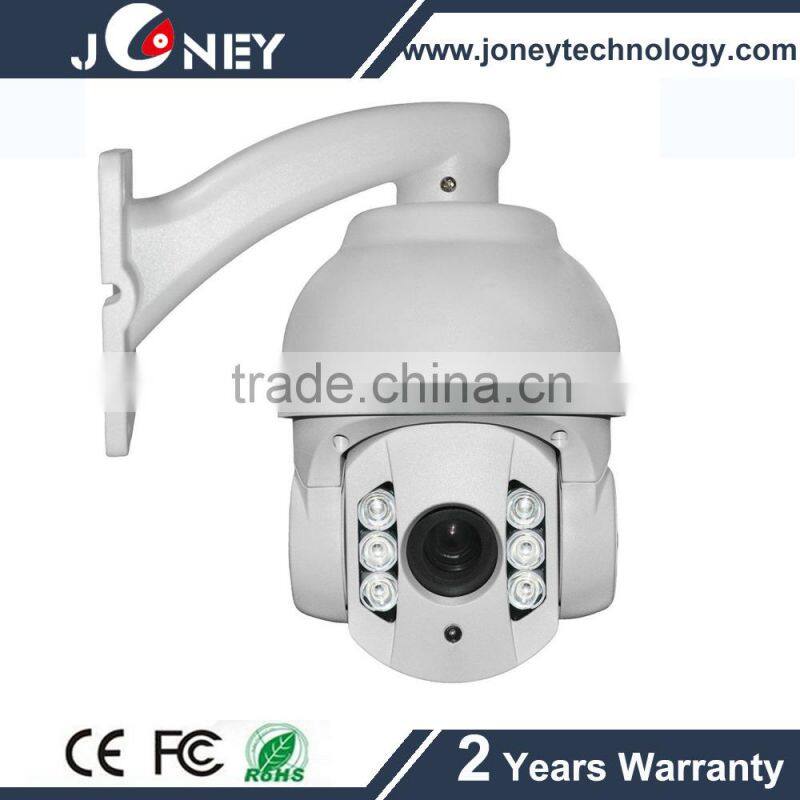

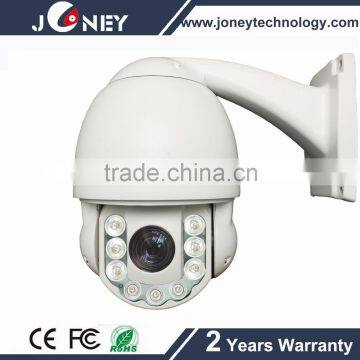

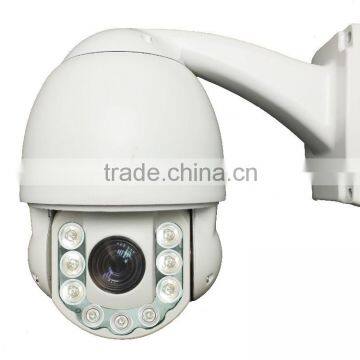

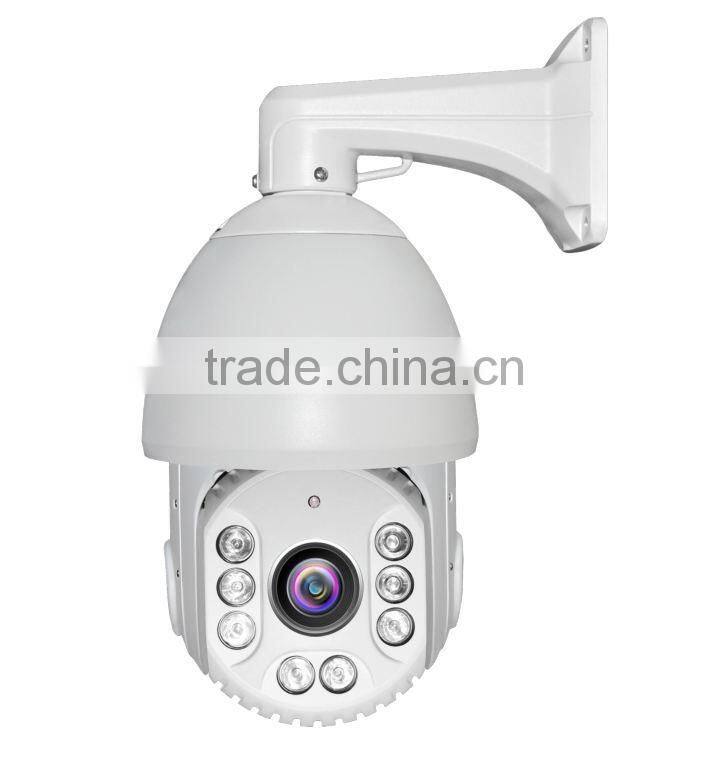

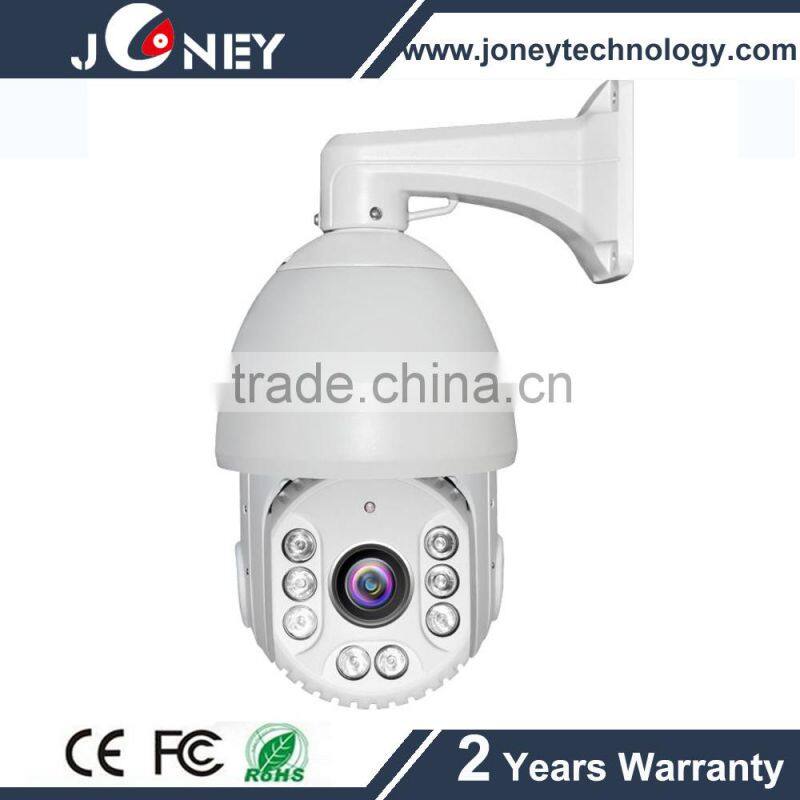

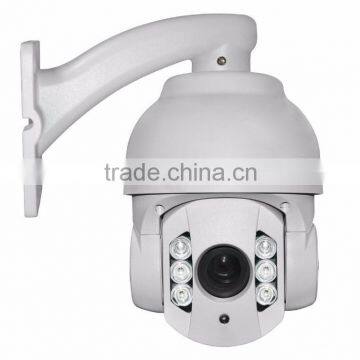

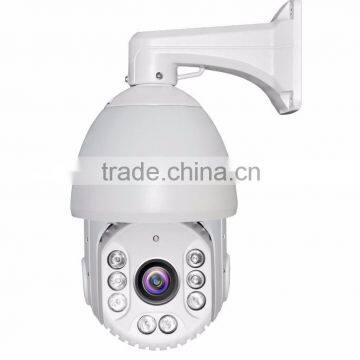

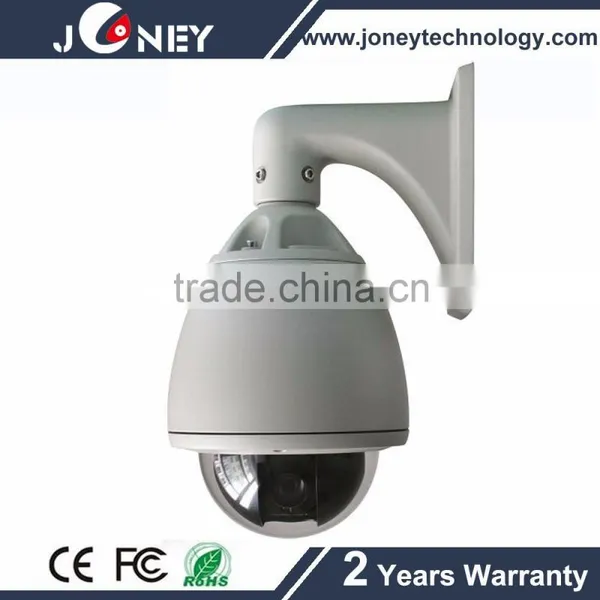

Automatic identify 20X optial zoom HD-CVI PTZ Camera with RS485 control. (HD-PTZ6700-CVI/1.3/2.0MP)
| Model | HD-PTZ6700-CVI/1.3MP | HD-PTZ6700-CVI/2.0MP |
| Camera | ||
| Image Sensor | 1.3MP ,Color 1/3" SONY CMOS | 2.0MP ,Color 1/2.8" SONY CMOS |
| Effective Pixels | 1280(H) x 960(V) | 1920(H)x1080(V) |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1s ~1/30,000s | |
| Min. Illumination | Color: 0.05 Lux/F1.4; B/W: 0.005Lux/F1.4; 0Lux (IR on) | |
| S/N Ratio | More than 55dB | |
| Resolution | 25/30fps@960P | 25/30fps@1080P |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 2D / 3D | |
| Privacy Masking | Up to 24 areas | |
| Lens | ||
| Focal Length | 4.7mm~94mm | |
| (20x Optical zoom) | ||
| Max Aperture | F1.4~ F2.6 | |
| Focus Control | Auto / Manual | |
| Angle of View | H: 54.1° ~ 3.2° | |
| Close Focus Distance | 100mm~1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s | |
| Preset Speed | Pan: 400° /s; Tilt: 300° /s | |
| Preset | 255 presets | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | Pelco-d, Pelco-p, Hikvision, Dahua protocol self-adaptive | |
| IR Distance | N/A | |
| Alarm | ||
| Interface | 2 input/ 1 output alarm ports optional | |
| Auxiliary Interface | ||
| RS485 | 1 | |
| General | ||
| Power Supply | AC24V/3A (±10%) | |
| Power Consumption | 12W, 25W(IR on) | |
| Working Environment | -40ºC ~ 70ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |
*Quick Professinal Reply
Your inquiry related to our products or price will be reply within 24 hours(Except weekend or holiday in China)
*OEM&ODM
Any of your idea on camera,we can help put it into real products.
*Delivery Time
3-7 working days,7-15 working days for bulk quantity.
We are all ready to serve you.
*MOQ
Lower MOQ,and we suggest our partner can test our sample first.
Sample order is accepted.
*Warranty
2 years warranty & life long technical support.All products have been passed through strict quality control.
*Payment
We accept Paypal,Western Union or T/T before production.
If buyer have any problems about payment,please contact us ASAP.

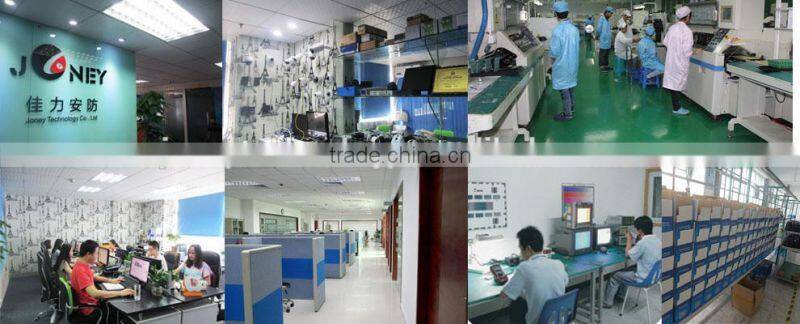

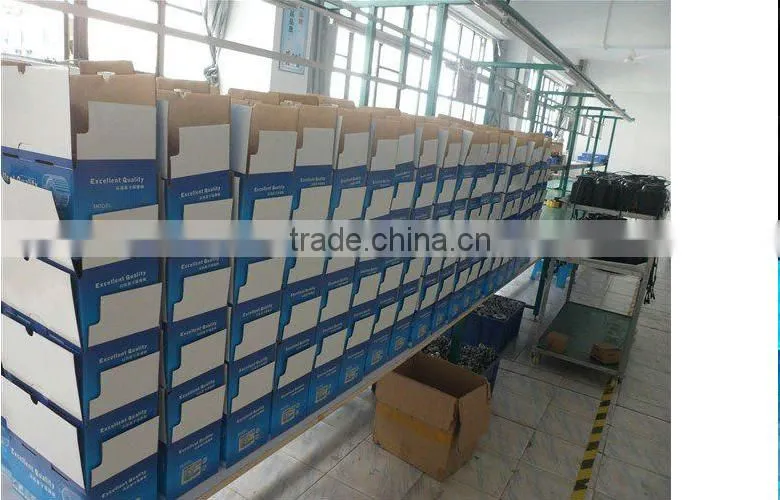

Joney Technology - main introduction
Joney Technology Co.,Ltd is establish in 2009 in Hong Kong .
Shen zhen company is established in 2012 . The main business is developing and producing security products .
