SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X)

SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) thumbnail-1
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) thumbnail-2
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) thumbnail-3
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) thumbnail-4
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) thumbnail-5
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) thumbnail-6
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) photo-1
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) photo-2
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) photo-3
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) photo-4
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) photo-5
SONY CMOS Sensor Auto Tracking 2 Mega Pixels IP PTZ Camera With IR Cut Filter(IPC-PTZ1005AT-20X) photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Joney
Model Number:
IPC-PTZ1005AT-20X
Type:
Other, IP Camera, IP PTZ camera
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Joney
Model Number IPC-PTZ1005AT-20X
Type Other, IP Camera, IP PTZ camera
Style Mini Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Vandal-proof

Auto tracking 2 Mega pixels SONY CMOS sensor IP PTZ camera  with IR Cut filter(IPC-PTZ1005AT-20X)



Product Description



2.0MP(1920*1080@30/25fps
Outdoor 120M IR Wipers
1)Encoding chip:TI DM368
2)Image sensor:1/3" Progressive Scan CMOS
3)1920*1080 (1080P) ;Focus F=5.5mm~55mm10X optical zoom
4)IR distance 100 meter
5)audio and SD card function optional
Wall mount or Ceiling mount bracket.



Model IPC-PTZ1005AT-20X
Camera
Image Sensor 1/3" Progressive Scan CMOS
Effective Pixels 1920*1080
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination Color: 0. 1Lux, B/W: 0.003Lux ; 0Lux(IR on)
S/N Ratio >50dB
Camera Features
Max. IR LEDs Length IR Range 100 m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 2D
Privacy Masking N/A
Lens
Focal Length 10X Zoom 5.5mm~55mm
Max Aperture F1.6
Angle of View H:55.2-2.9°
Mount Type MTV  mount (Interchangeable Lens)
Video
Compression H.264 / MJPEG
Frame Rate Main Stream 1920*1080  30fps
Sub Stream VGA 640*360 30FPS
Bit Rate 128Kbps~8Mbps,Supports CBR/VBR
Audio
Compression G.711
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP
ONVIF ONVIF Ver. 2.0
Max. User Access 10 users
Smart Phone iPhone, iPad, Android
General
Power Supply DC12V
Power Consumption <6W
Working Environment -10°C~+60°C, 10%~90%
Ingress Protection IP66
Dimension 30*30*37(cm)
Package Weight 7 KG
Approvals CE FCC RoHS



Detailed Images

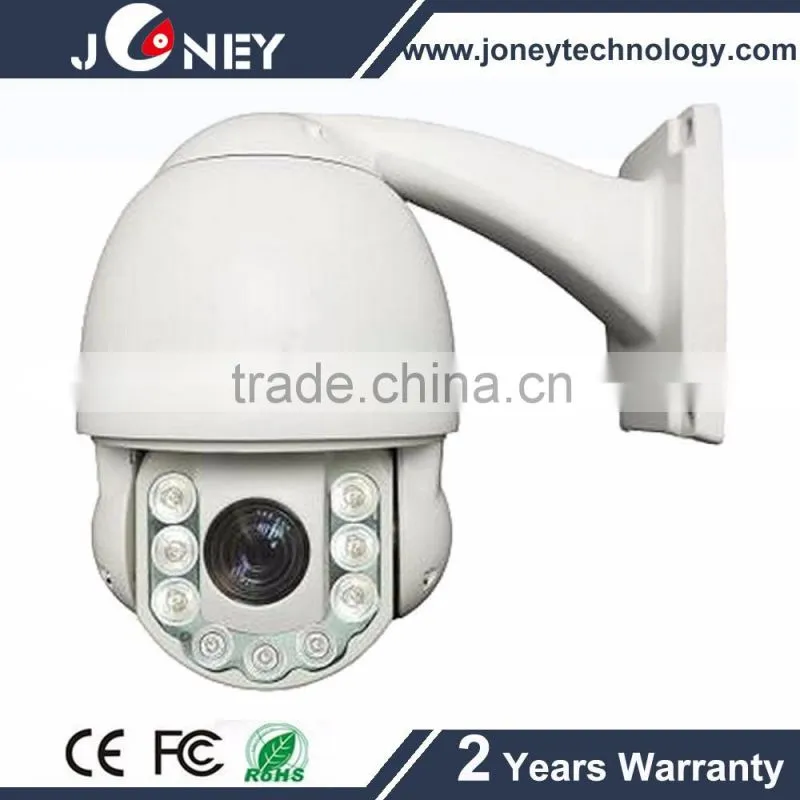

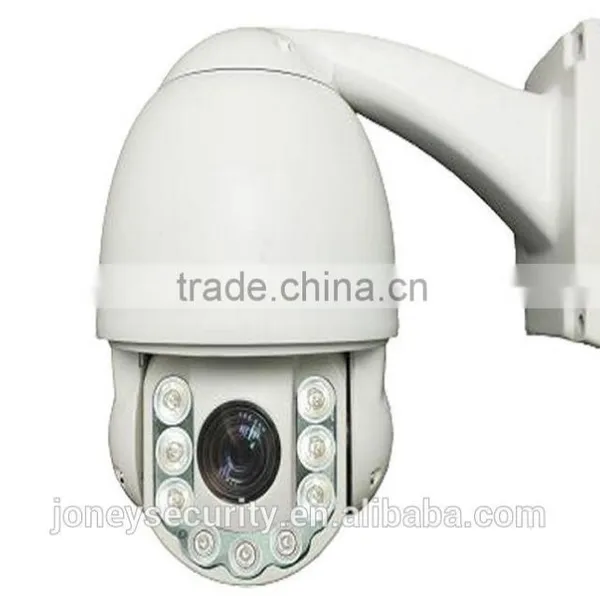

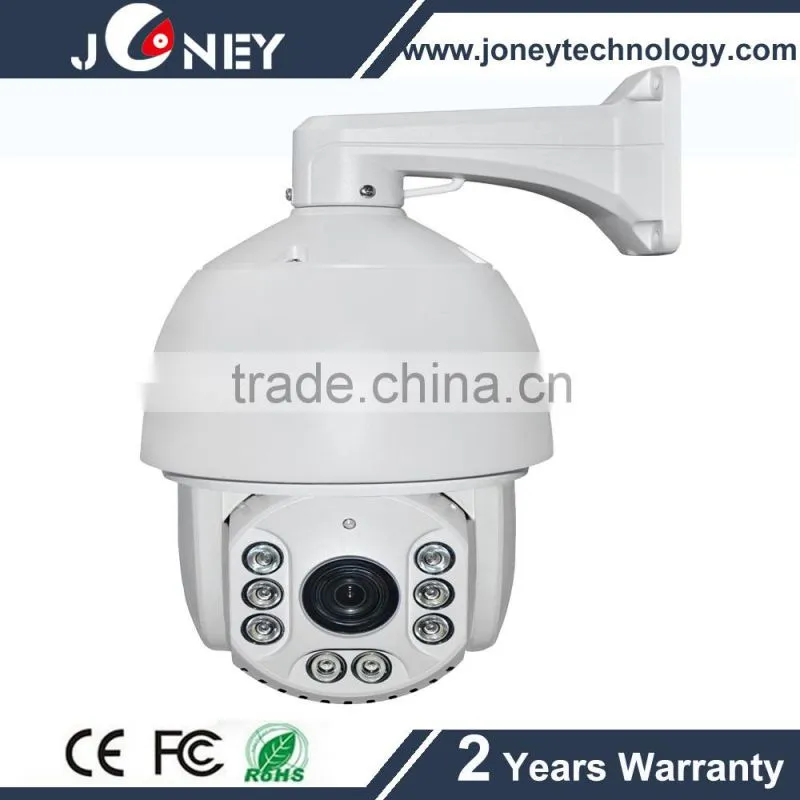

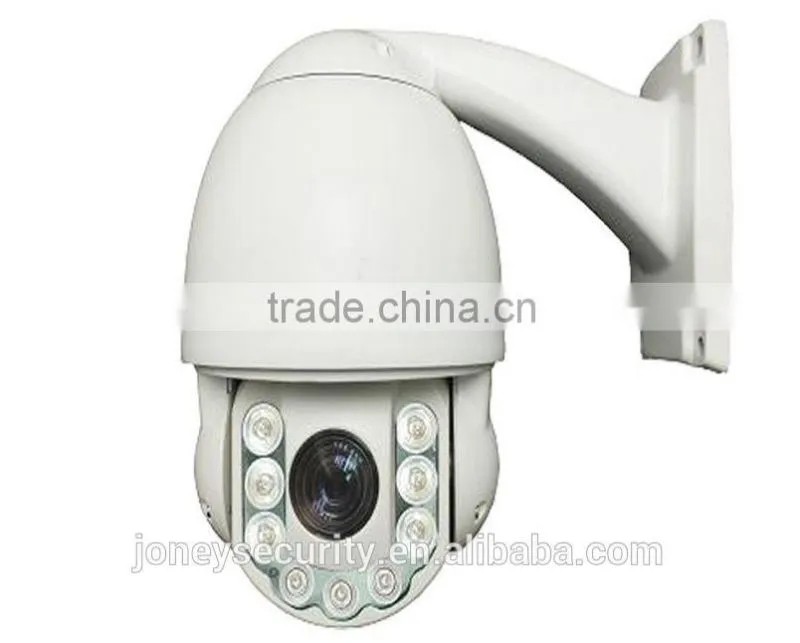

 SONY CMOS sensor Auto tracking 2 Mega pixels IP PTZ camera with IR Cut filter(IPC-PTZ1005AT-20X)SONY CMOS sensor Auto tracking 2 Mega pixels IP PTZ camera with IR Cut filter(IPC-PTZ1005AT-20X)SONY CMOS sensor Auto tracking 2 Mega pixels IP PTZ camera with IR Cut filter(IPC-PTZ1005AT-20X)SONY CMOS sensor Auto tracking 2 Mega pixels IP PTZ camera with IR Cut filter(IPC-PTZ1005AT-20X)SONY CMOS sensor Auto tracking 2 Mega pixels IP PTZ camera with IR Cut filter(IPC-PTZ1005AT-20X)SONY CMOS sensor Auto tracking 2 Mega pixels IP PTZ camera with IR Cut filter(IPC-PTZ1005AT-20X)

Packaging & Shipping



Based on customer's demands to choose the most economical shipping terms.

Suggest:For sample order ship by Express,for mass order shipping by Air cago or by sea.

We have strong cooperation with DHL,FedEX,UPS,EMS,TNT.

Our Services



*Quick Professinal Reply

Your inquiry related to our products or price will be reply within 24 hours(Except weekend or holiday in China)

*OEM&ODM

Any of your idea on camera,we can help put it into real products.

*Delivery Time

3-7 working days,7-15 working days for bulk quantity.

We are all ready to serve you.

*MOQ

Lower MOQ,and we suggest our partner can test our sample first.

Sample order is accepted.

*Warranty

2 years warranty & life long technical support.All products have been passed through strict quality control.

*Payment

We accept Paypal,Western Union or T/T before production.

If buyer have any problems about payment,please contact us ASAP.



Trading process



1.First send us an inquiry for quote or through trademanager,please be specific on products catagoy,products name ,color,quantity and your requirement about the products.

2.Then we will response to your request within 24 hours with an quotation sheet,payment term and delivery time .

3.After confirming all the information by you,we will prepare a copy of PI(proforma    Invoice) or purchase agreement,we will attached the bank information in the PI.

4.After confirm your payment, we will arrange the products for you as soon as possible.



Company Information



Joney Technology - main introduction



Joney Technology Co.,Ltd is establish in 2009 in Hong Kong .

Shen zhen company is established in 2012 . The main business is developing and producing security products .

Our products include two main part

  1. 1. CCTV

IP cameras ,HD analog cameras ,DVR ,NVR ,cctv accessories . We provide the whole system for video surveillance system .Besides the manufacturer for OEM products ,We are also the distributor for Dahua and Hikvision brand .

  1. 2. Access control

Biometric access control and time attendance device .Rfid access control system like access controller ,Rfid cards /tags ,long range reader for parking system . Magnetic/Electric locks ,Hotel locks and Fingerprint locks . Besides the manufacturer for OEM products.
