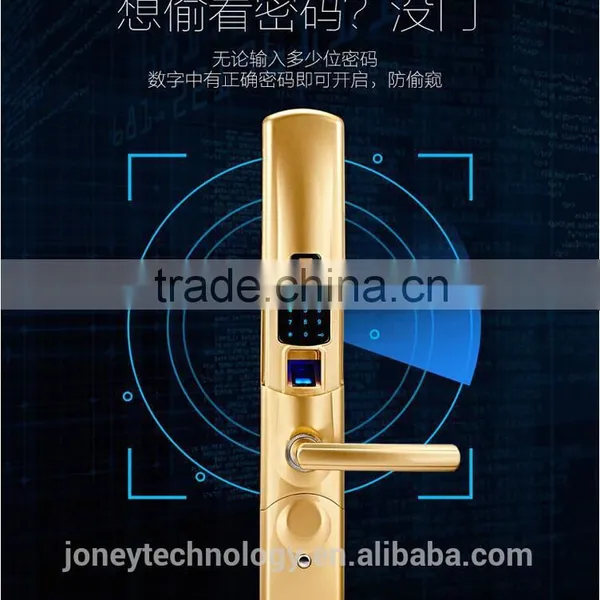

2016 New Fingerprint Passwords Door Lock can Remote Control
Main Features:
1. Support Fingerprint, password, card and mechanical

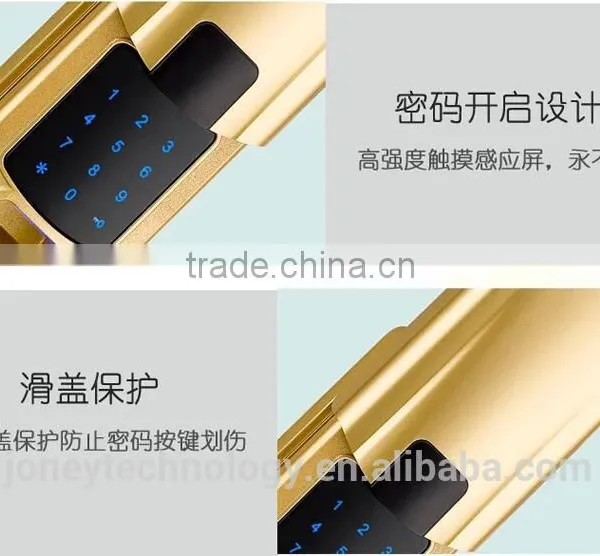

2. Touch Screen
3. Fingerprint capacity: 100pcs
4. Password capacity: 10 pcs
5. pasowrd combination: 8 number
6. Unlock records: 350 7. Color: Silver, golden, anti-red 8. optional: remote control
What is specification of fingerprint door lock ?
Specification for fingerprint password door lock | |
Color |
Silver, golden, anti-red |
Unlock method |
Fingerprint, password,Remote control, Cards and mechanical key |
Material |
zinc alloy |
Power |
4 pcs 1.5V LR6 AA Alkaline Batteries, DC 6V |
|
normally continuous opening |

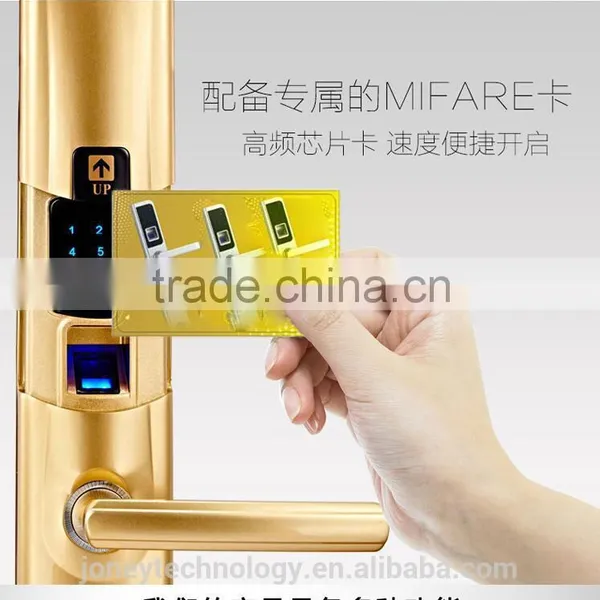

Card type |
MF1 |
Password battery life |
6000 times |
Password capacity |
10pcs |
Password combination |
8 numbers |
Fingerprint battery life |
5000 times |
Fingerprint capacity |
100pcs |
Fingerprint identifying angle |
360° |
False acceptance rate |
≤0.0001% |
Working temperature |
-20 degree-70 degree |
Working humidity |
20%-95% |
Accepted for door thickness |
35~55mm |
Lock weight |
6.2-6.5kg |
Static working current |
≤30μA |
Dynamic working current |
≤200mA |
Reading distance |
≤3mm |
Reading Time |
less than 1s |
Unlock records |
Lastest 350pcs unlock records |
System protection function |
Automatically enter the power saving mode without 10s operation |
Antistatic interference ability |
≤15KV |
Low power alarm |
less than 4.8V(100 times at least) |

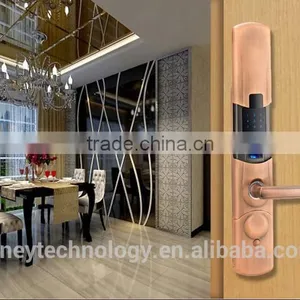

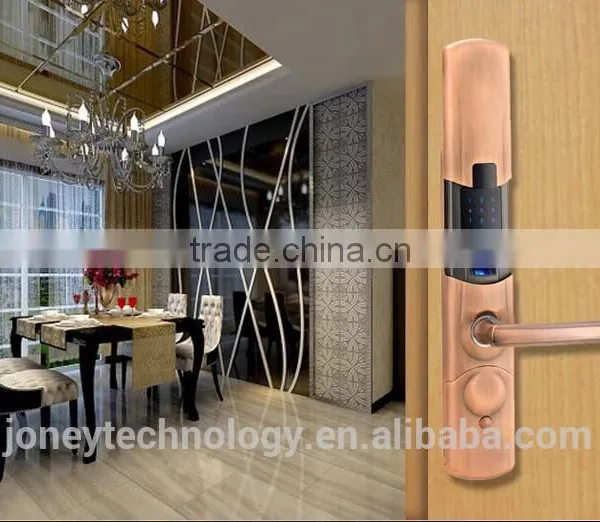

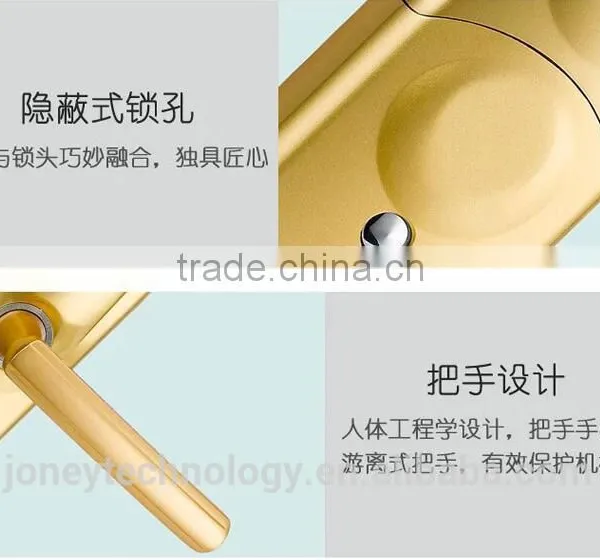

Door Lock products show

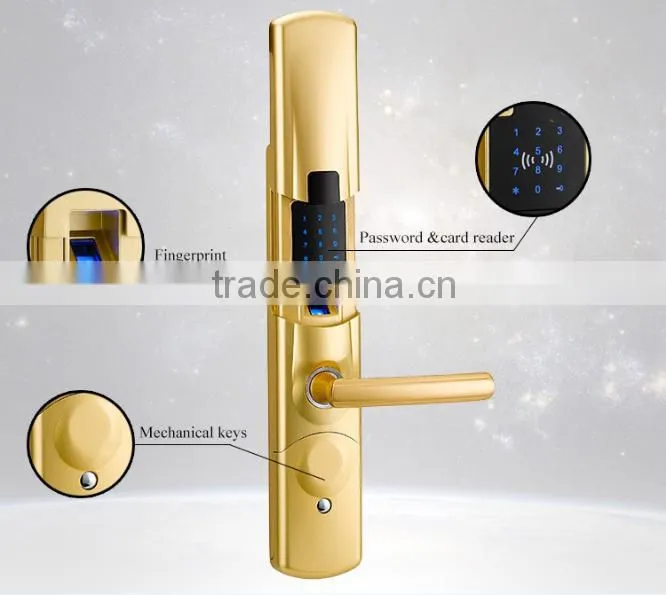

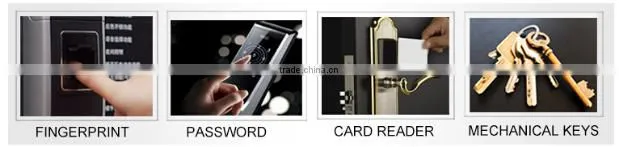

4.Unlock methods: fingerprint, password, cards and mechanical keys

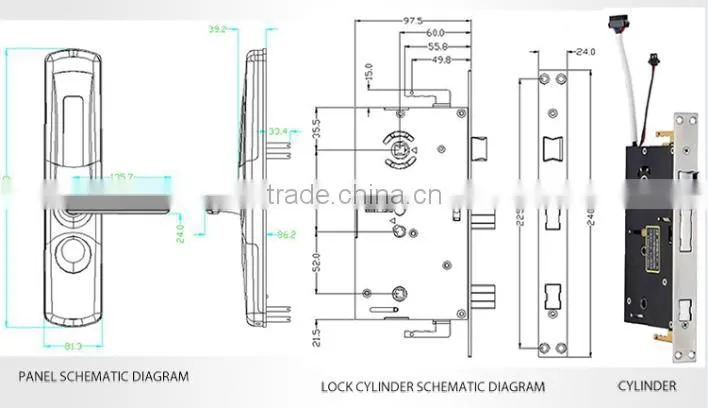

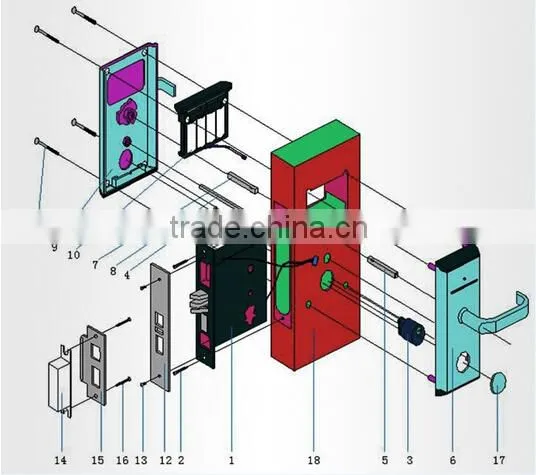

Panel and lock cylinder schematic diagram

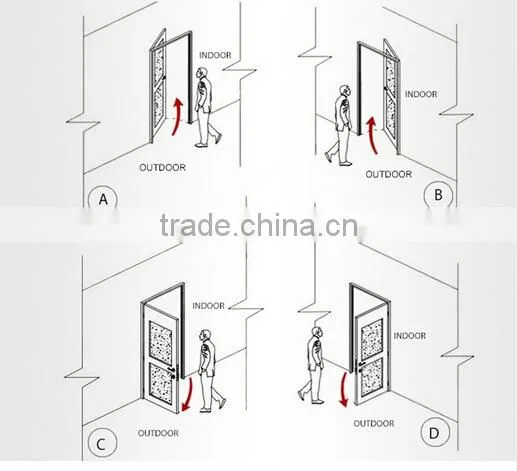

The handle installation directions for door locks
How to install the door locks?
1 |
Llock cylinder |
10 |
Battery Pack (includes batteries) |
2 |
Cross recessed round head wood screws |
11 |
Inner hexagon screw |
3 |
Mechanical Headlock |
12 |
Side trim panels |
4 |
Inner hexagon screw (headlock) |
13 |
Cross recessed countersunk head tapping screws |
5 |
Big square axis |
14 |
Pinch plat plastic case |
6 |
Front Panel |
15 |
Lock pinch plate |
7 |
Big square axis |
16 |
Cross recessed round head wood screws |
8 |
Long square axis |
17 |
Headlock cover |
9 |
Rear Panel |
18 |
Door |
Door lock Package
Shipment Terms
1. FedEx/DHL/UPS/TNT/EMS for samples, Door-to-Door;
2. By Air or by Sea for bulk goods, for sea freight; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
5, Port: Shenzhen or any port which you want.
Payment Terms 1.Payment: T/T, Western Union, MoneyGram,PayPal;
2. MOQ: 1pcs
3. Warranty :2 years
