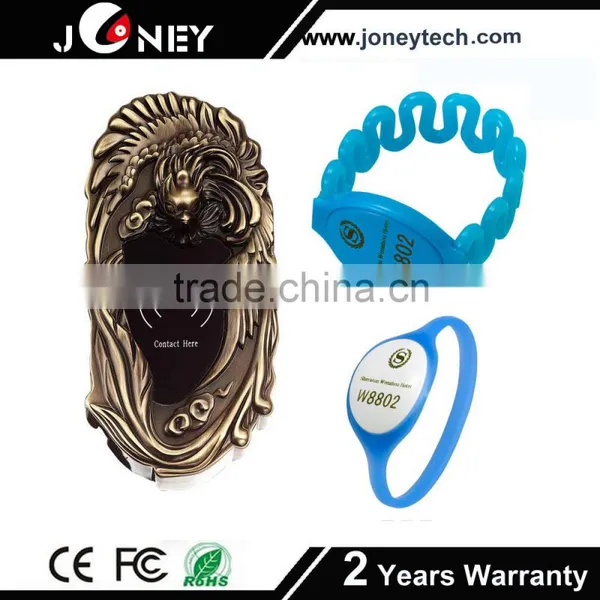

safe lock & lock door lock set Closet Lock with RFID Locking system

safe lock & lock door lock set Closet Lock  with RFID Locking system

Features & Technical

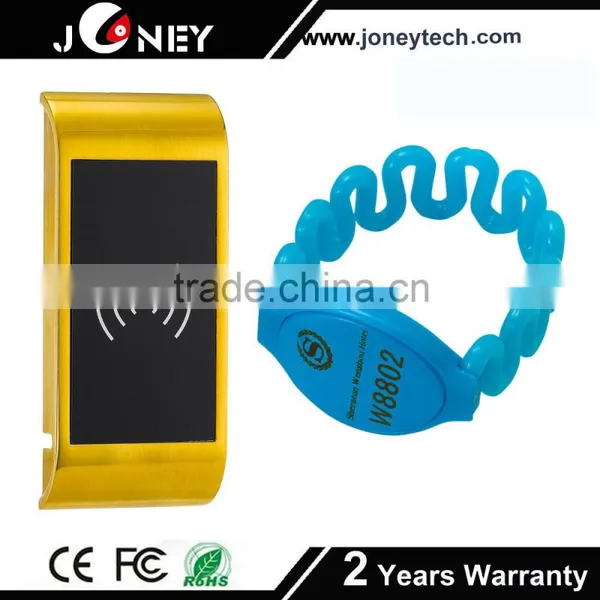

Locker lock(Closet Lock) with RFID Locking system

(NOTE: if you need software and encoder to program keys, please advise us, we can design)

1.No software needed, set RFID key on the lock directly
2.Powered by 4pcs AA alkaline batteries, last 5-10months

3.Equipped with 6V external power interface
4.Single card or dual cards unlocking

5.Non-auto locked function optional

6.Material: Zinc alloy or ABS
7.Color: Silver, Golden, etc
8.Applicable door thickness:15~25mm
9.Working voltage: 6V (4pcs AA alkaline batteries)
10.Battery life: 5-10 months, more than 15, 000 times normal continuous opening
11.Card type: token, key tag, card, wristband
12.Card frenquency: 125KHz by default, 13.56MHz optional
13.Low voltage alarm: <4.8V, still can open about100 times
14.Application: school, SPA center, swimming pool, gym, golf course, supermarket

safe lock & lock door lock set Closet Lock  with RFID Locking system

Lock Assembly Body for Electronic Closet Lock, Black or White for your options.

Size of Lock Assembly Body

                                Size of Side Catch

NTOE: If you need METAL FRAME to protect the LOCK ASSEMBLY BODY. Please advise us in advance.

Power For Locker Lock/Cabinet Lock

Powered by 4 AA batteries, last about 5~10 months with high quality batteries.it can open about 15000 time continuously.

EXTERNAL POWER PACK

If the batteries are totally dead, use external power pack to supply power to open the closet lock and replace batteries.

Supply Power Centrally

NOTE: If you want to supply power centrally, then you can use this small Lock Assembly Body for locker locks.

Left: plastic Lock Body

Right: Lock Body with Metal Frame

RFID KEY

For the RFID KEY, we supply 1 WRISTBAND for each locker lock by default.

(125Khz by default, 13.56Mhz Mifare1K for options.)

1.There are 4 color for your options: black, red, yellow, orange

2.We can make number on the wristband if needed, eg: 001 002 003 004........

3.If need other RFID keys, such as RFID Key Card, Key Tag, Key Token etc, please advise us.

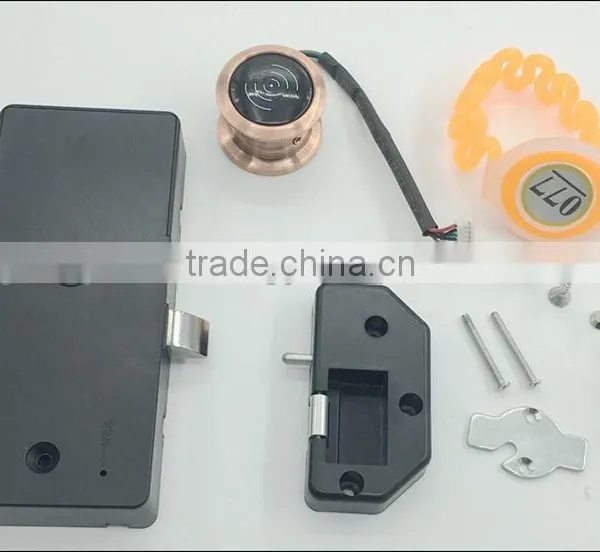

Part List

Take EM115 as example

1 complete set of locker lock includes:

1.Lock * 1

2.Lock Assembly Body * 1

3.Side Catch * 1

4.Wristband * 1

5.Tool pack * 1

External Power Pack optional.
