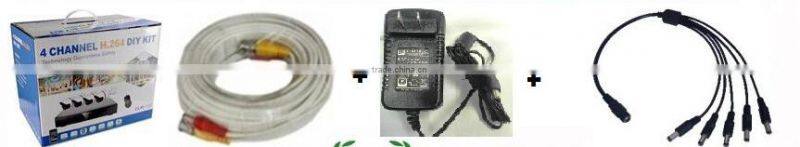

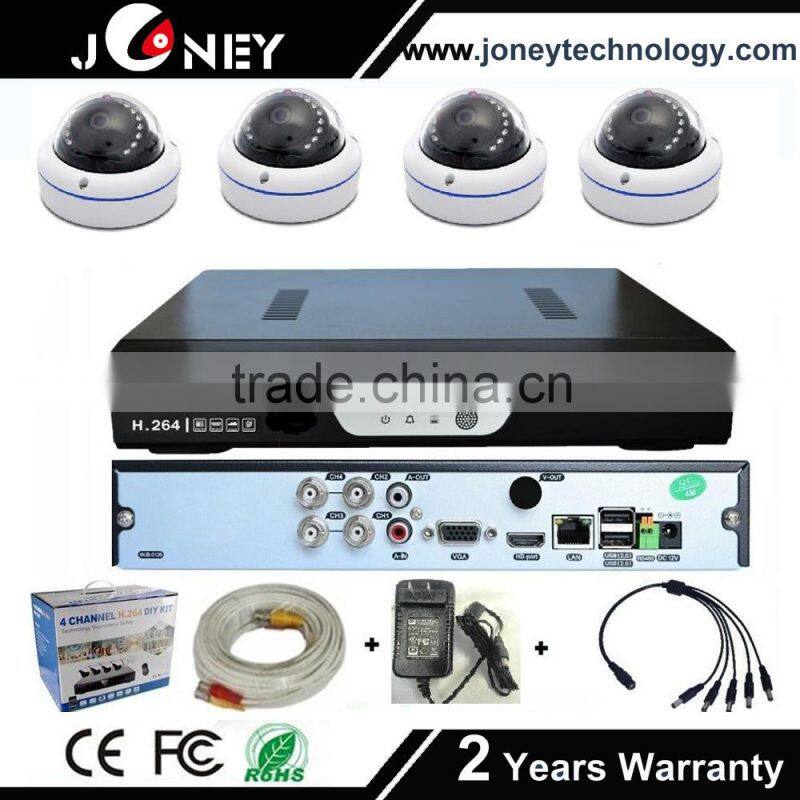

New 4 Channel Dome HD Camera P2P AHD DVR KIT H.264 DIY DVR KIT

Name: New 4 Channel Dome HD Camera P2P AHD DVR KIT H.264 DIY DVR KIT
Brand: joney
SKU: 133205907
Availability: InStock

US$ 175 - 180 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

joney

Model Number:

JYD-8300AHD-Kit

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name joney

Model Number JYD-8300AHD-Kit

New 4 Channel Dome HD Camera P2P AHD DVR KIT H.264 DIY DVR KIT

Product Description

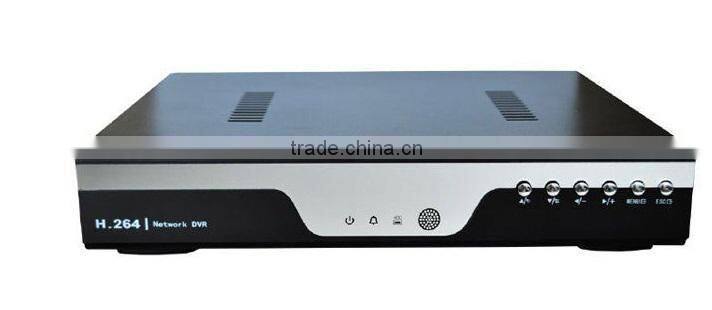

AHD DVR: AHD Camera

Playback channel & Resolution:4CH 720P Realtime Water proof Metal IR Bullet Camera

Support 3G,Wifi,Cloud. Lens:Board Lens 3.6mm/F2.0
With HDMI,VGA,Support 1pcs HDD IR LED: 15x F5 IR LED

Video recording channels & Resolution:4CH 720P Realtime IR Range:>10M
Audio Input/Output:4/1 720P 25fps@1280H(1280*720)

Alarm Input/Output:2/1 Color 1/4" CMOS,1.0 Megapixels,IR-CUT
Support HDD:1pcs

Video split:1/4

Specification

Video Compression Format	H.264
Video System	NTSC / PAL
GUI OSD	YES
Video Input	4CH BNC input(composite video signal 1Vp-p 75Ω BNC)
Video Output	1CH VGA/1CH HDMI/1CH BNC
Audio Input/Output	1CH audio input,1CH audio output(RCA)
Maximum Recording Rate	720P:1280×720 pixels with 30FPS <NTSC> /1280×720 pixels with 25FPS <PAL>
Image Quality Setting	Supper Best,Well,Good,Medium,Normal and Bad
Hard DisHard Disk Storagek Storage	Support 1 SATA HDD
Alarm Input/Output	NO
Multiplex Operation	Live display/record/playback/backup/network transmit
Recording Mode	Manual/Timer/Motion/Alarm
Playback Mode	Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set
Backup Device	USB flash drive,USB hard disk and network backup
Pre-alarm Recording	Recording for 10 seconds before alarming
Network Protocol	TCP/IP,PPPOE ,DDNS and NTP
Ethernet remote view	Support remote surveillance up to 10 users simultaneously
CMS software	YES
Mobilephone View	YES
Electronic zoom	YES
VGA Interface	YES
Log record function	YES
Image Tour	YES
IR Remote control	YES
Video Loss Detection	YES
Video Adjustable	Hue /Saturation /Contrast /Brightness adjust
PTZ Control	YES
USB Mouse	YES
Power Source	12V/2A
Key Lock(Password Protection)	YES
Power-down recovery function	YES
Size(mm)	260(L) x 44(H) x 221(W)
