Hotselling Cheap CCTV H.264 16ch Ahd DVR

Hotselling Cheap CCTV H.264 16ch Ahd DVR thumbnail-1
Hotselling Cheap CCTV H.264 16ch Ahd DVR thumbnail-2
Hotselling Cheap CCTV H.264 16ch Ahd DVR thumbnail-3
Hotselling Cheap CCTV H.264 16ch Ahd DVR thumbnail-4
Hotselling Cheap CCTV H.264 16ch Ahd DVR thumbnail-5
Hotselling Cheap CCTV H.264 16ch Ahd DVR thumbnail-6
Hotselling Cheap CCTV H.264 16ch Ahd DVR photo-1
Hotselling Cheap CCTV H.264 16ch Ahd DVR photo-2

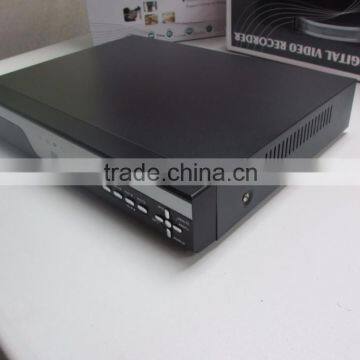

Hotselling Cheap CCTV H.264 16ch Ahd DVR photo-3
Hotselling Cheap CCTV H.264 16ch Ahd DVR photo-4
Hotselling Cheap CCTV H.264 16ch Ahd DVR photo-5
Hotselling Cheap CCTV H.264 16ch Ahd DVR photo-6
US$ 108 - 111 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
joney
Model Number:
DVR-6316-AHD
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name joney
Model Number DVR-6316-AHD

Hotselling cheap CCTV H.264  16ch ahd DVR



Product Description



 Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources

 GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly

 Support 16ch 720P realtime recording resolution

 Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.

 Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view

 Multiple record mode:Auto,timer,motion and alarm recording mode

 Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play

 Support drag the progress bar can be targeted playback time directly

 Support 16CH 720P  playback,each channel can be enlarge to full screen

 Support Network function:one IE browser centralized monitoring and CMS Software for multiple DVR

 Support DHCP,DDNS,PPPoE and NTP network service

 Supports remote surveillance up to 10 users simultaneously via the Enternet Explorer web browser

 Support more than 17 kinds protocol of the PTZ control

 Supports Multiple backup mode: USB flash drive,USB hard disk and network backup

 Support pre-alarm recording (before 10 sec),not lose any suspicious screen

 Support Mobile phone remote view by Android,Iphone

 Support High-Definition VGA/HDMI output(VGA and HDMI can work at the same time)

 Support alarm triggered recording will send alerts matter to the designated email.

 Support TWO HDD

 Support super cloud service ( specialized website for super cloud service: ), one step to do remote control easily & conveniently without any complicated setting.

Support 3G & WIFI extension

System auto recovery to power after power reconnected,and return to the pre-power-down state










Specification



Model

DVR-6316AHD

Video Compression Format

H.264

Video System

NTSC / PAL

GUI OSD

YES

Video Input

16CH BNC input(composite video signal 1Vp-p 75Ω BNC)

Video Output

1CH VGA/1CH HDMI/1CH BNC

Audio Input/Output

4CH audio input,1CH audio output(RCA)

Maximum Recording Rate

720P:1280×720 pixels with 30FPS <NTSC> /1280×720 pixels with 25FPS <PAL>

Image Quality Setting

Supper Best,Well,Good,Medium,Normal and Bad

Hard Disk Storage

Support 2 SATA HDD(each max4TB)

Alarm Input/Output

4/1

Multiplex Operation

Live display/record/playback/backup/network transmit

Hybrid mode

8x 720P AHD + 8 x 720P ip camer/normal analog camera

Recording Mode

Manual/Timer/Motion/Alarm

Playback Mode

Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.



Backup Device

USB flash drive,USB hard disk and network backup

Pre-alarm Recording

Recording for 10 seconds before alarming

Network Protocol

TCP/IP,PPPOE ,DDNS and NTP

Ethernet remote view

Support remote surveillance up to 10 users simultaneously

CMS software

YES

Mobilephone View

YES

Electronic zoom

YES

VGA Interface

YES

Log record function

YES

Image Tour

YES

IR Remote control

YES

Video Loss Detection

YES

Video Adjustable

Hue /Saturation /Contrast /Brightness adjust

PTZ Control

YES

USB Mouse

YES

Power Source

12V/2A

Key Lock(Password Protection)

YES

Power-down recovery function

YES

Size(mm)

260(L) x 44(H) x 221(W)





Photo shop



Packaging & Shipping

 Hotselling cheap CCTV H.264 16ch ahd DVRHotselling cheap CCTV H.264 16ch ahd DVR

Software

 Hotselling cheap CCTV H.264 16ch ahd DVRHotselling cheap CCTV H.264 16ch ahd DVRHotselling cheap CCTV H.264 16ch ahd DVR

Our Services

 Hotselling cheap CCTV H.264 16ch ahd DVRHotselling cheap CCTV H.264 16ch ahd DVR

Trading Progress



 1.First send us an inquiry for quote or through trademanager,please be specific on products catagoy,products name ,color,quantity and your requirement about the products.

2.Then we will response to your request within 24 hours with an quotation sheet,payment term and delivery time .

3.After confirming all the information by you,we will prepare a copy of PI(proforma    Invoice) or purchase agreement,we will attached the bank information in the PI.

4.After confirm your payment, we will arrange the products for you as soon as possible
