Specification &Details
Factory best prices Intel Atom N2800 fanless industrial motherboard for car pc X86 embedded linux board hot selling
Specifications:
Model NO. |
ITX-H25_28 VER:1.5A |
CPU |
Intel® Atom N2800/1.86GHz dual core CPU, TDP 7.5W |
Chipset |
Intel® NM10 chipset |
Memory |
1*SO DDRIII slot, support 1600/1333/1066MHz memory, max. Up to 4GB |
Graphics |
Intel®3650 Graphics |
|
Support 1*VGA,1*LVDS (support single channel 24BIT) |
|
VGA;LVDS support synchronous/asynchronous display |
LAN |
1* RTL8105E 100Mbpst LAN controller, support Wake-on-LAN/PXE |
Storage |
2* SATAII , transfer rate up to 3Gbps |
Audio |
ALC662 6channel HD audio controller, support MIC/Line-out / amplifier |
Expansion Slots |
1* 52pin PCIEx1 slot, support WIFI module |
|
1* MSATA slot, support SSD,SSD transfer rate up to 3Gbps |
|

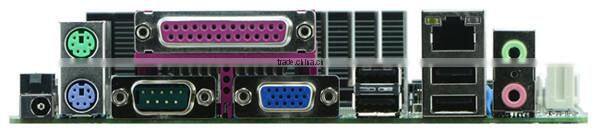

Rear I/O
|
1* 12V DC_JACK input |
|
1* PS/2( KB&MS) |
|
1* COM (1st/ 9th pin support 5V/12V charged function) |
|
1* VGA |
|
1* LPT |
|
4* USB2.0 |
|
1* RJ-45 |
|
1* Audio (Line out / MIC) |
|
Internal I/O |
1* LVDS(2*10pin),support single channel 24 BIT LCD display |
|
1* LVDS INVERTER (1*6pin) |
|
1* JVGA1 (2*5pin) , same signal with DB15 |
|
5* COM header (1st /9th pin support 5V/12V charged function ) |
|
4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0) |
|
1* PS/2, KB/MS connector (1*6Pin) |
|
1* AUDIO front panel audio connector (2*5pin) |
|
1* SIM card socket |
|
2* PWROUT (HDD power connector) |
|
1* FP1 front panel function buttons and indicator connector (2*5pin) |
|
1* ATX_12V |
Fan Interface |
1* CPUFAN 3pin; 1* SYSFAN 3pin |
BIOS |
AMI 16MB Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12V single power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
5%-95% (relative humidity; non-condensing) |
Dimension |
170mm x 170mm |

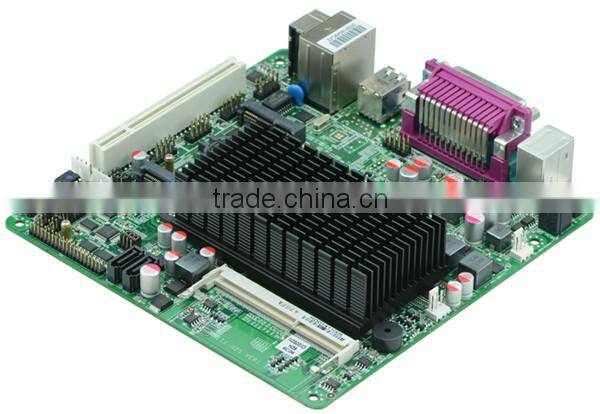

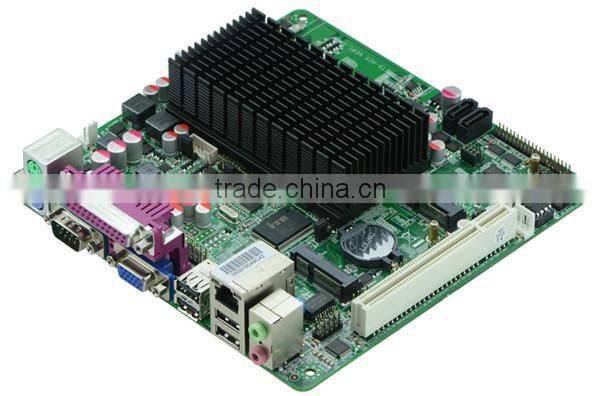

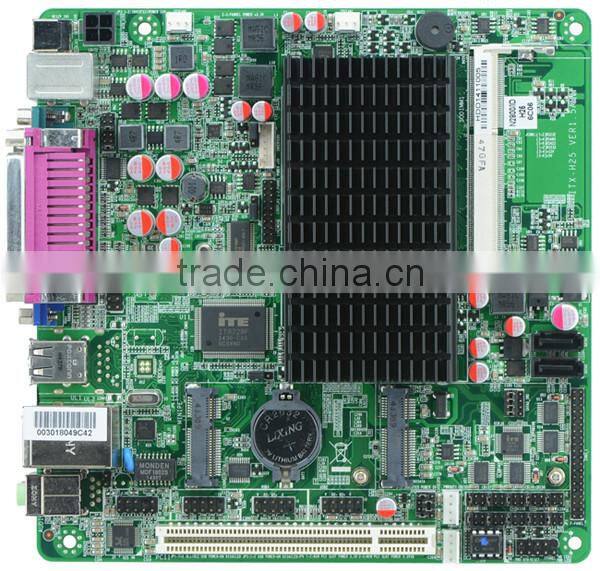

Images of product:
Order Information:
No. |
Model No. |
CPU |
Memory |
Display |
LVDS |
LAN |
USB |
COM |
RS485/422 |
Power |
1 |
ITX-H25_28 VER:1.5A |
N2800/1.86G |
1*SODDR3 |
1*VGA |
1*24BIT |
1*RTL8105E |
8 |
6 |
X |
DC12V |
2 |
ITX-H25_D27 VER:1.5A |
D2700/2.13G |
1*SODDR3 |
1*VGA |
1*24BIT |
1*RTL805E |
8 |
6 |
X |
DC12V |
3 |
ITX-H25_26 VER:1.5A |
N2600/1.66G |
1*SODDR3 |
1*VGA |
1*24BIT |
1*RTL805E |
8 |
2 |
X |
DC12V |
4 |
ITX-H25_D25 VER:1.5A |
D2550/1.86G |
1*SODDR3 |
1*VGA |
1*24BIT |
1*RTL805E |
8 |
6 |
X |
DC12V |
5 |
ITX-H25_2D6 VER:1.5A |
D2550/1.86G |
1*SODDR3 |
1*VGA |
1*24BIT |
2*RTL8111E |
8 |
6 |
X |
DC12V |
