Help CenterSurface Mounting Led Downlight Diameter 300mm Round 24W,>1800LM,100-240v AC, 50/60hz,Aluminium Alloy Frame
Related Products
-
Surface Mounting Led Downlight Diameter 300mm Suquare 24W,>1800LM,100-240v AC, 50/60hz,Aluminium Alloy FrameUS$ 1 - 7MOQ: 3000 Pieces -
2015 New Products Down Light Ra80 90-265V IP22 Smd Led Light Taiwan Epistar ChipUS$ 1 - 10MOQ: 3000 Pieces
-
LED Light 12W 24W LED Down Light Surface SMD2835 Save Energy CRI>80,with ROHS, CEUS$ 1 - 10MOQ: 3000 Pieces
-
High Lumen Recessed LED Downlight 7W With Samsung SMD5630 IP65 Waterproof LED Down LightUS$ 6.6 - 7.6MOQ: 1 Piece
-
Waterproof IP65 10W LED Downlight With Samsung SMD5630 Size : 110*H70mm Cut Hole:95mmUS$ 6.6 - 7.6MOQ: 1 Piece
1.Name of Product: surface mounting led downlight diameter 300mm round 24W,>1800LM,100-240v AC, 50/60hz,Aluminium Alloy Frame ,led downlight ,led light ,led panel light
Model No |
12W Round |
12W Square |
24W Round |
24W Square |
Rated Wattage |
12.6W(12.2 -13.4) |
12.6(12.2-13.4) |
24W(22.5-26.5) |
24W(22.5-26.5) |
Rate Voltage |
100-240Vac |
100-240Vac |
100-240Vac |
100-240Vac |
Input Current |
250mA |
250mA |
500mA |
500mA |
Frequency |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
Power Factor |
≥0.4 |
≥0.4 |
≥0.4 |
≥0.4 |
Driver Efficiency |
≥87% |
≥87% |
≥87% |
≥87% |
EMC/EMI |
/ |
/ |
/ |
/ |
Lumen |
≥900Lm |
≥900 Lm |
≥1800 Lm |
≥1800 Lm |
CCT |
3000K/6500K |
3000K/6500K |
3000K/6500K |
3000K/6500K |
SDCM |
<6 |
<6 |
<6 |
<6 |
CRI Ra |
≥70 |
≥70 |
≥70 |
≥70 |
Beam Angle |
120° |
120° |
120° |
120° |
LEDs |
SMD 2835 |
SMD 2835 |
SMD 2835 |
SMD 2835 |
Lighting Source |
Sideway leds |
Sideway leds |
Sideway leds |
Sideway leds |
Way of Installation |
Surface mounting |
Surface mounting |
Surface mounting |
Surface mounting |
Fixture Color |
White painting |
White painting |
White painting |
White painting |
Material |
Al Alloy +PC |
Al Alloy +PC |
Al Alloy +PC |
Al Alloy +PC |
Working Temperature |
-20~45℃ |
-20~45℃ |
-20~45℃ |
-20~45℃ |
Storage Temerature |
-40~80℃ |
-40~80℃ |
-40~80℃ |
-40~80℃ |
Life Time |
20000hrs |
20000hrs |
20000hrs |
20000hrs |
Protection |
IP20 |
IP20 |
IP20 |
IP20 |

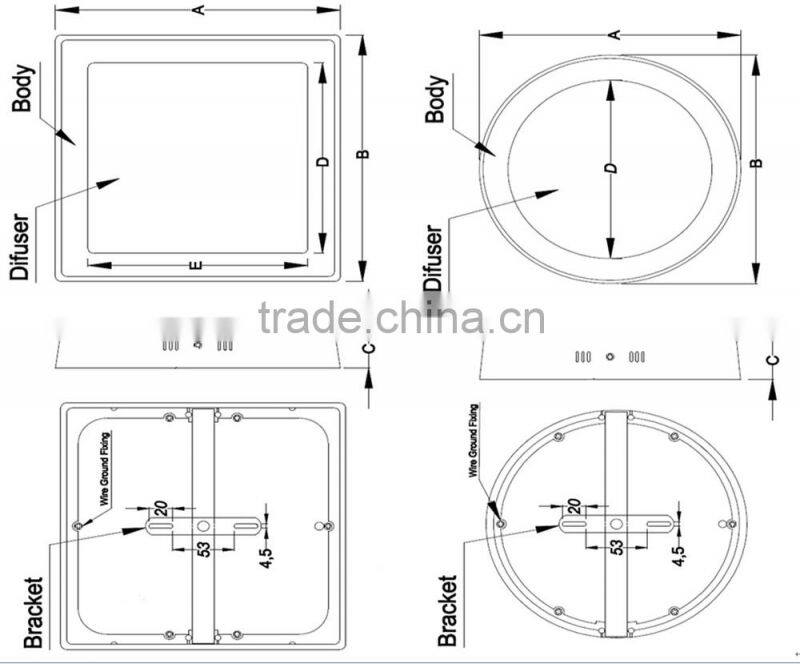

4.Size of Product
|
Measurement(mm) Tolerence±2 |
12W Square |
24W Square |
12W Round |
24W Round |
A |
172 |
301 |
172 |
301 |
B |
172 |
301 |
172 |
301 |
C |
39 |
39 |
39 |
39 |
D |
123 |
249 |
125 |
249 |
E |
123 |
249 |
/ |
/ |
F |
170 |
300 |
/ |
/ |
G.W of Each Lamp |
500g±50g |
600g±50g |
1150g±100g |
1300g±100g |
Package |
Color Box |
Color Box |
Color Box |
Color Box |
Measurement |
190mmx45mmx190mm |
190mmx45mmx190mm |
307mmx45mmx190mm |
307mmx45mmx190mm |
Carton Size, NOS/CTN |
201mmx100mmx201mm/2 |
201mmx100mmx201mm/2 |
308mmx100mmx308mm/2 |
308mmx100mmx308mm/2 |
G.W of Each Carton |
1200g±100g |
1400g±100g |
2800g±100g |
3100g±100g |
1) Building or home decoration
2) Home use for lighting
3) Commercial Lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room etc
