US$ 500 - 800 MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Material:
Other, Steel, Steel
Application:
Manual Packing, WOODEN,STEEL
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Dongguan Ming Ye Packing Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
The port of Shen Zhen & Guang Zhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Steel, Steel
Place of Origin Guangdong, China
Brand Name joypack
Model Number Steel strapping bands

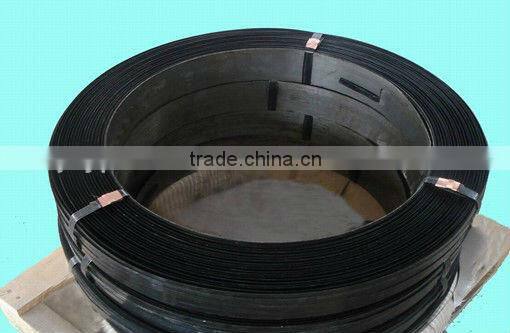

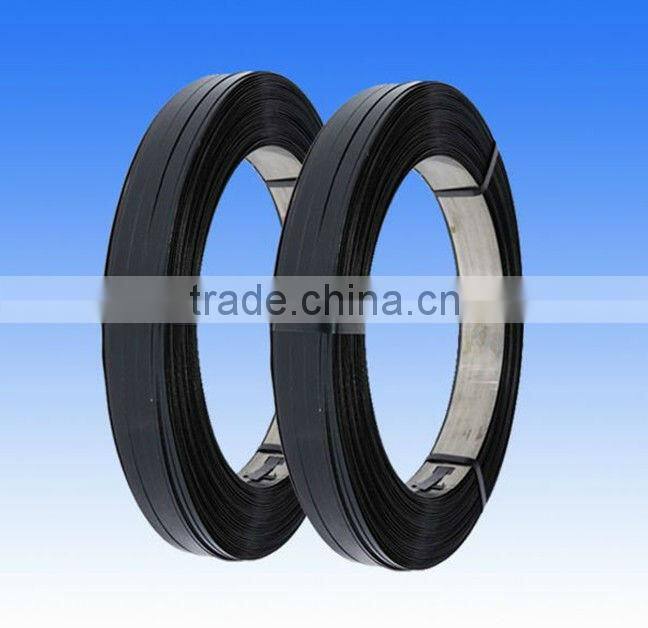

Black Steel strapping bands


Painted Surface Treatment: color painted& waxed

Painted Corlors:black green,red,yellow,grey,etc

Wound Way: Ribbon wound and Oscillated wound

Matercial: Q195, Q215, Q215B, Q235, Q235B, Q345, 20MnSi steel.



Technical Parameters:

Ordinary steel strapping

σb≥65-75kg/mm2(650-750Mpa),

elongation:δ5≥3%-5%

Ordinary steel strapping

σb≥75-85kg/mm2(750-850Mpa),

elongation:δ5≥4%-6%

High quality steel strapping

σb≥85-1000kg/mm2(8501000Mpa),

elongation:δ5≥5-8%


Specifications:(ThicknessxWidth)

BWG27X3/8",  1/2",   5/8"(0.40mmx12.7mm,     16.0mm)

BWG26X1/2",  5/8",  3/4"(0.45mmx12.7mm,    16.0mm      19.0mm)

BWG25X1/2",  5/8",  3/4"(0.50mmx12.7mm,    16.0mm,     19.0mm)

BWG24x1/2",  5/8",  3/4"(0.55mmx12.7mm.    16.0mm,     19.0mm)

BWG23x1/2",  5/8",  3/4"(0.60mmx12.7mm,    16.0mm,     19.0mm)

BWG22x3/4",   1"     5/4"(0.70mmx19.0mm,    25.4mm,     32.0mm)

BWG21x3/4",   1"     5/4"(0.80mmx19.0mm,    25.4mm,     32.0mm)

BWG20x3/4",   1"     5/4"(0.90mmx19.0mm,    25.4mm,     32.0mm)

BWG19x3/4",   1".    5/4"(1.00mmx19.0mm,    25.4mm,     32.0mm)

Coils ID:Ribbon wound=200mm/300mm/406mm;Oscillated wound=406mm.





Sort of the steel packing strips
(1) Blue steel packing strips
(2) Painted steel packing strips(black, green and so on)
Mechanical Properties
(1) Ordinary steel: The product is made from ordinary carton structured and high quality carbon structured steel via cold-rolled, it applys to pack wood, paper, glass, stone, textile, pallet, box and so on.
Ordinary (1) tensile strength σb ≥ 58-70kg/mm2 (Mpa) ≥ 568-686mm2  elongation ≥3-5%
Ordinary (1) tensile strength σb ≥ 70-80kg/mm2 (Mpa) ≥ 686-784mm2  elongation ≥3-5%
(2)Standard steel: The product is made from ordinary carbon structured and hing quality carbon structeued steel via cold-rolled, it applys to pack profiled bar,tube steel,strip,cotton textile,timbering,metel and so on.
Standard(1):tensile strength σb ≥80-90kg/mm2 (Mpa) ≥ 784-882mm2 elongation ≥ 4-8%
Standard(11):tensile strength σb ≥90-100kg/mm2 (Mpa) ≥ 882-980mm2 elongation ≥ 5-10%
Wound type

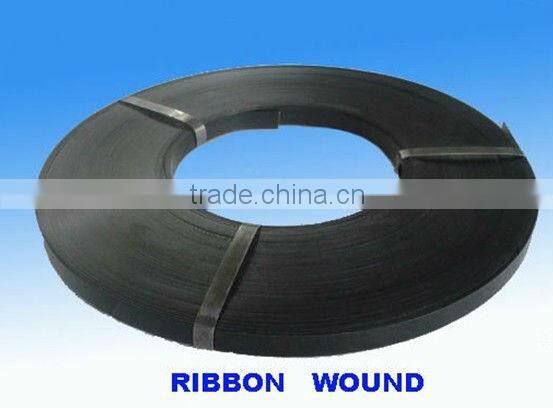

(1)Ribbon wood
ID200mm, 300mm, 406mm
Sizethickness0.3-0.9mm, width12.7mm, 16mm, 19mm, 25mm, 32mm
Coil weightwidth12.7mm,10-25kg/bundle; width16mm, 19mm, 25mm, 25kg/bundle; width32mm 50kg/bundle, ±1kg, can produce it as per customer's request,

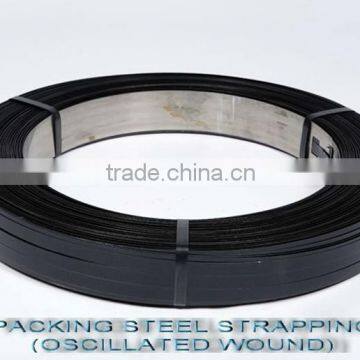

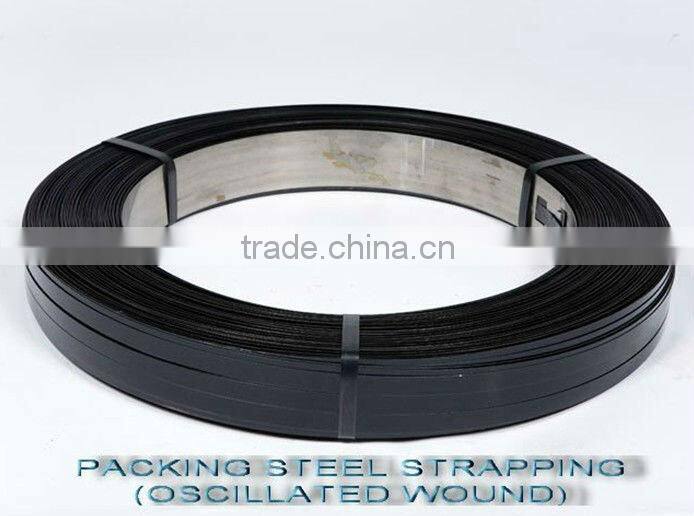

(2)Oscillate wound
ID406mm
Sizethickness0.4-0.9mm, width12.7mm, 16mm, 19mm, 32mm
Coil weight:width12.7mm, 16mm, 19mm  45kg±2kg/bundle; width32mm 280-600kg/bundle, can produce it as per customer's request.
Surface and edge
(1)Blue-oiled steel packing strips
(2)Blue-waxed steel packing strips
(3)Painted-waxed steel packing strips
(4)We can make the edge smoother of the steel packing strips,and can  produce it as per customer's request.

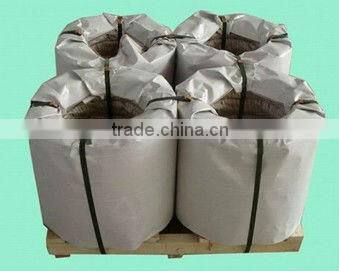

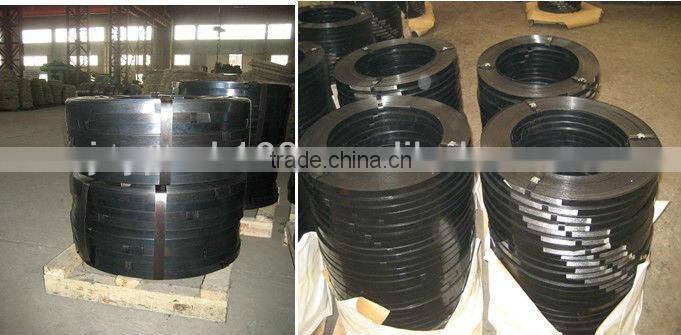

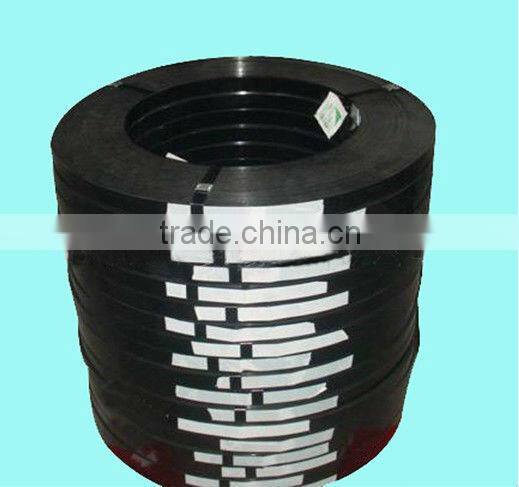

Ribbon wound2 or 3coils per bundle(width32mm, 1 coil per bundle), weight is 50±1kg,  Inner is protect humidity-proof waw paper, Medium is plastic film, Outer is sackcloth or compound paper packing,  coils to be laid on double type pallet (four piles per pallet), 20boundless pallets,  each is about 1 metrie ton.

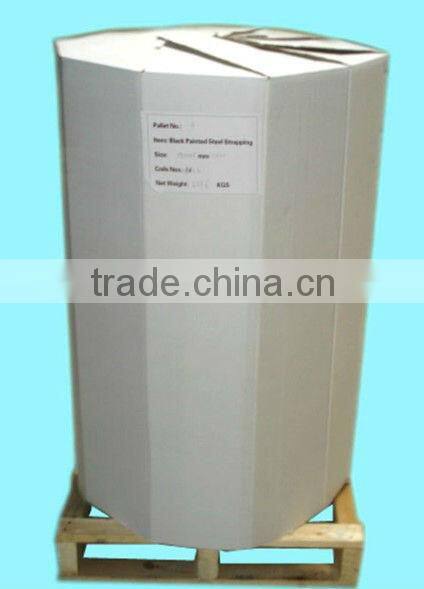

Oscillated wound: 1 coil per boundle,  weight is 45±1kg,  Inner is protect humidity-proof wax paper,  Medium is plastic film, Outer is sackcloth or compound paper packing, coils to be laid on single type pallet (one pile per pallet), 12 or 14 coils per boundle, weight is 540kg or 360kg, can pack as per customers request.
We have wooden pallet, iron pallet, free fumigating pallet.

strapsstrapsstrapsstrapsstrapsstraps



 strapsstrapsstrapsstraps











The company owns rich experience in this  strap band production line. We have a lot of customers for you to visit the running machines. All our staff warmly welcome you to visit the work shop, too.

Pls Contact  ---Tony

Mobile:0086 137 1282 7205

E-mail: joypack# (#---@)

Website:



Dongguan JoyPack Packing Materials & Machine Co.,Ltd (China)

Official Unified Hotline : 4008-010-260
Tel: 86-0769-85473185   87380864
Fax: 86-0769-85473272
Add: Sha`Hu`Kou Area,Chang'ping Town, Dongguan City ,Guangdong Province ,China  (523557)
