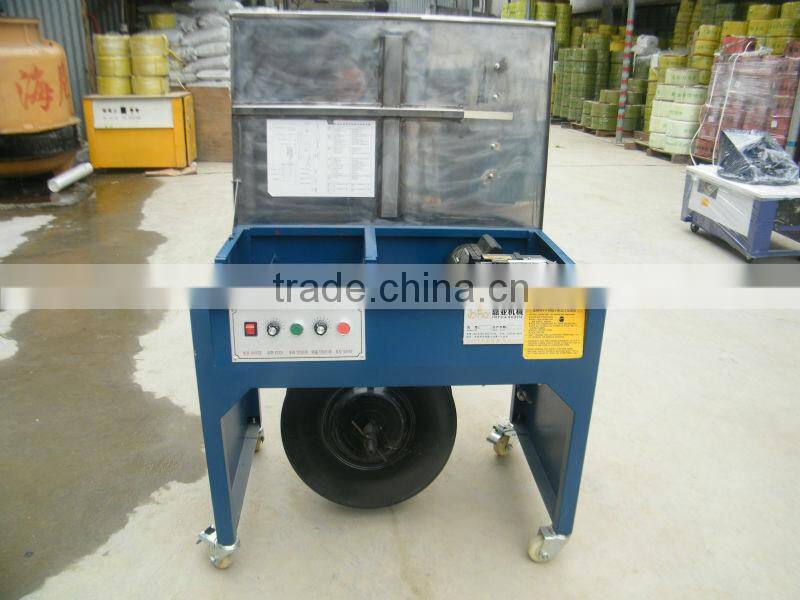

High Efficiency Semi-automatic PP strapping machine
| Model | ST-900/L/T/TL |
| Strapping tension | 5-55KGS |
| Strapping speed | 1.5SEC/STRAP |
| Strapping size | 600mm-any size |
| Strap width | 6-15mm |
| Power | 600w |
| Voltage | 110v/220v(50/60Hz) |
| Dimension | 900×575×780mm |
| Weight | 100kg |
Options:
| Item | Normal | Option |
| Steel plate thickness | 1.2mm | 1.5mm |
| 2.0mm | ||
| S.S.430 top cover | 1.5mm | 2.0mm |
| 2.5mm | ||
| 3.0mm | ||
| Bearing housing | Aluminum | Iron |
| Transmission bracket | Aluminum | Iron |
| Feed roller | Steel | Stainless steel |
| Dispenser | Steel flange | Plastic flange |
| Tension adjustment | Mechanism outside | Mechanism inside |
| Electronic outside | ||
| Tension detector | Magnetic reed switch | Round belt |
| Control panel | Membrane Keyboard | Push button |
| Safety cut switch | without | Single circuit cut switch |
| Two-circuit cut switch |
Semiautomatic machines use PP tape as its packing materials, mainly for business, post, railway, banking, food, medicine, books issued industries to pack cartons, wooden crates, paper bag, intertexture boxes, cloth bag; Inserted a strap, the machine will automatically finish the process of agglutination, cutting, strap supply.
l Instant heating: begin to work in 5 seconds after power connected,
l apply to various specifications of pp tapes from 6mm to 15mm;
l automatically stop machine operation in 35 seconds after packaging finished;
l high packing quality: precise agglutination and fastness.
l Compared with our old model GM-B001,GM-B003,these models have better function cooling time,temperature and tension adjust outside.
l Copper wire motor make tension up to 65kg,Taiwan clutch,photo-eye control cutting band
l Subwoofer design,Horizontal insert type PC Board
Ø Summary Parameters(NEW STYLE) | |
Model | GM-B001A |
Power Supply | 110V 220V 50Hz 60Hz |
Power | 250W |
Max. packing article | No restrict |
Min. packing article(WXH) | 60 X30 mm |
PP band width | 6~15mm |
PP band core diameter | 200mm |
Strapping speed | 1.5 s/revolution |
Tension (N) | 10~600(Adjustable Outside) |
Dimension(L X W X H ) | 900 X 580 X 750 (mm) |
Machine weight | 70kg |
