ac to dc Single output 380w 19v 20a switching power supply
- 80000 Piece / Pieces per Month
- shenzhen
- Credit Card
-
ME Series Modules High Stability High Voltage Power Supply for Microchannel Plates
-
MMC Series DC High Stability Voltage Power Supply for Microchannel Plates (100V-600V,0.1W)
-
Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
-
Power Supplies TVD1.3-15-03 Original Stock
-
10W 2.5KV Isolation Wide Input AC/DC Converters
-
30W Wide Voltage Input DC/DC Converters power supply
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | 19V 20A 380W |
| Output Power: | 101 - 200W | Output Type: | Single | Input Voltage: | Other, 90V~264V AC |
| Output Voltage: | 19V | Output Frequency: | 50/60Hz | Output Current: | 20A |
Product Description
ac to dc Single output 380w 19v 20a switching power supply
19V 20A power supply Specification:
| Input Voltage Range | 90V~264V AC |
| Input Frequency | 50~60hz |
| Output rated voltage | 19V |
| Output rated current | 20A |
| Ripple & noise | ≤150mv |
| Output Voltage Accuracy | ±0.5% |
| Load Regulation | ±0.5% |
| Line Regulation | ±0.2% |
| Output Voltage Overshoot | ≤15% |
| Efficiency | ≥85% |
| Indicator color | Green |
| Over current Protection | YES |
| Over Temperature Protection | YES |
| Short circuit Protection | YES |
| Operate Temperature | -20~+65°C |
| Storage Temperature | -20~+80°C |
| Storage humidity | 10%~90% |
| Dimension | 215*125*65mm |
| Input AC connector | UK/EU/US/AU AC plug |
| Output DC connector | 4 din pin |
| Input-Output | 2000V AC(5MA/1min) |
| Input-Earth | 1000V AC(5MA/1min) |
| Output-Earth | 500V AC(5MA/1min) |
| Insulating Strength | ≥50mΩ |

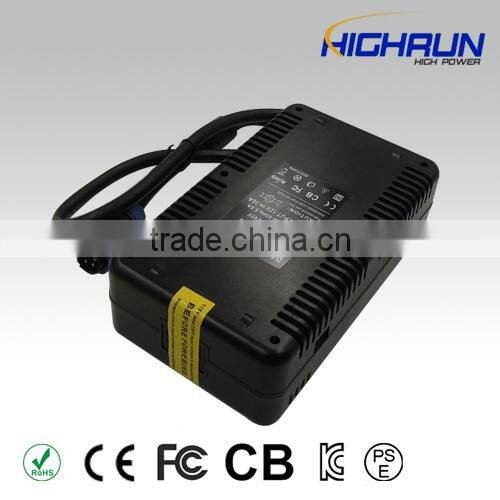

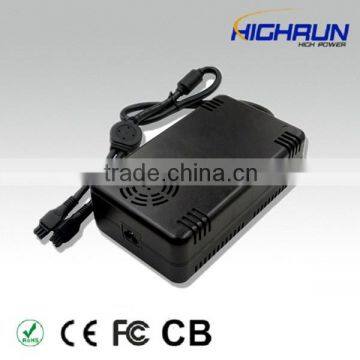

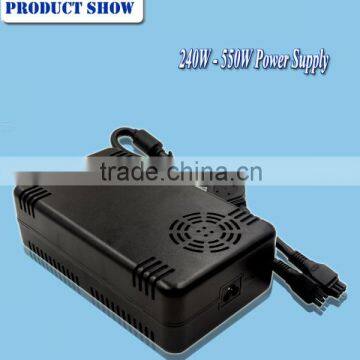

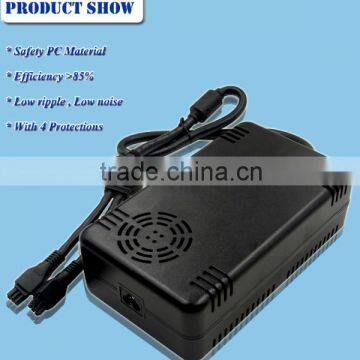

19V 20A power supply photos:
Single output 380w 19v 20a ac to dc switching power supply
- Real power
- Plastic enclosure, PC material
- 90V~264V AC input, 115V or 230V AC input by switch
- Over temperature/over current/short circuit protection
- CE ROHS FCC CB approved
Switching power supply more applications:
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer, 3D Printer, LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.

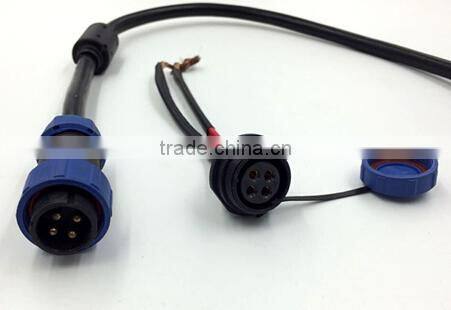

DC Connector:
AC cables: US/UK/AU/EU plug
Delivery & Transportation
1.All the goods will be tested before shipment
2.We will ship the sample within 7-9 working days after the payment is reached.
DHL/FedEx/UPS/TNT/EMS/By air/By sea
Testing:
