Agriculture machinery Foldable Wheel Rakes with high quality
This series of foldable wheel rakes is mounted on the 4wheel tractor, the material of tine is 65Mn spring steel to keep durable. this machine has simple structure, convenient operation and reliable use, less failure and high efficiency. operation quality Maintenance is simple, dynamic performance is good. Both can hug grass, and ted the grasses. This rotary rake could be used together with our lawn mower, it can rake the three grass swath which cut to be a even one that is helpful for the subsequent bundling work.
hay rake features
1.It is 3-point pitch mounted hay rake for 4wheel tractor.
2.This tractor hay rake has 65Mn rake tines
3.The nos of tine plates 4-8 to meet different condition of farm field.
tractor wheel hay rake Specification
Model |
CLD-3.0 | CLD-4.0 | CLD-4.8 | CLD-7.4 | CLD-8.2 |
| Working width(mm) | 3000 | 4000 | 4800 | 7400 | 8200 |
| Matched tractor (hp) | 20-40 | 40-60 | 60-90 | 90-100 | 100-120 |
| Wheels Nos.(pcs) | 4 | 6 | 8 | 11 | 13 |
| Wheel diameter(mm) | 1460 | 1460 | 1460 | 1460 | 1460 |
| Raked grass width (mm) | 1000-1500 | 1500-2000 | |||
| Linkage | 3 point hitch linkage | Mounted | |||
| Weight (kg) | 180 | 295 | 340 | 1100 | 1300 |

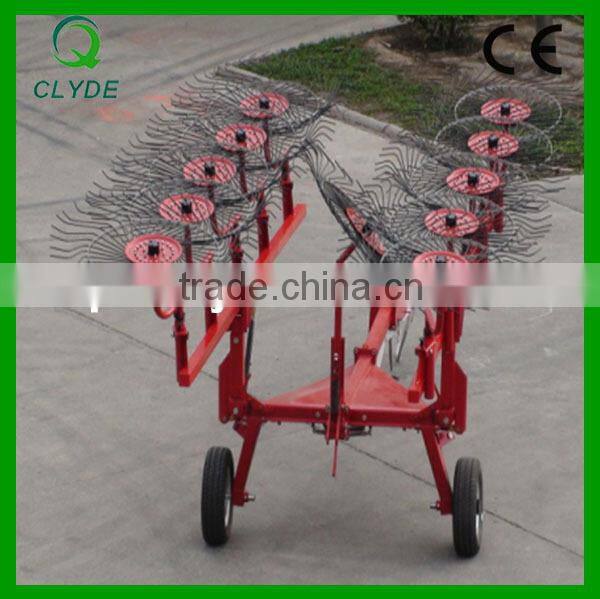

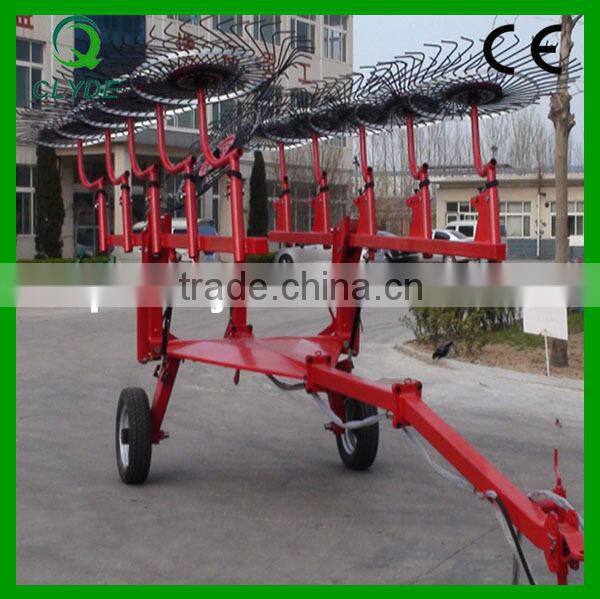

hay raker/wheel rake/ rotary rake photos

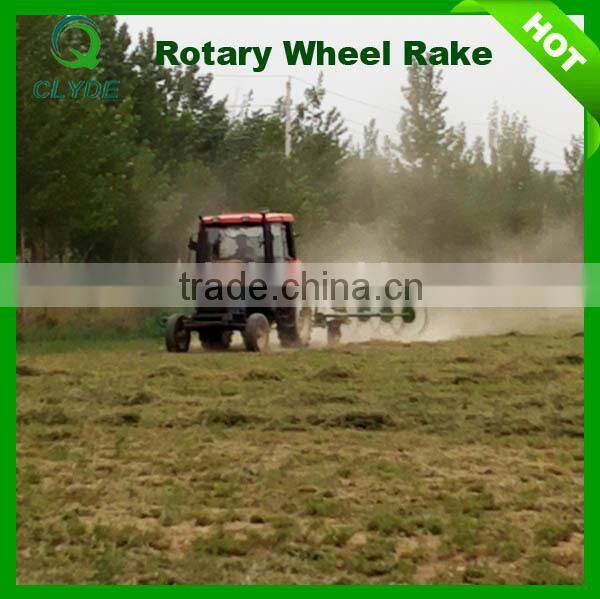

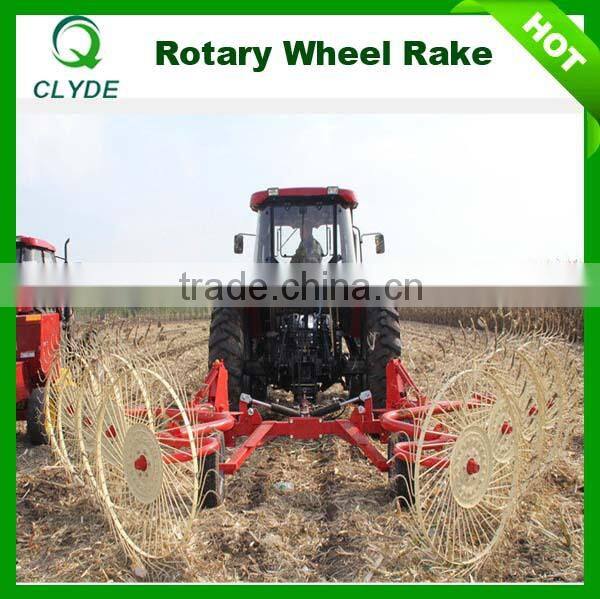

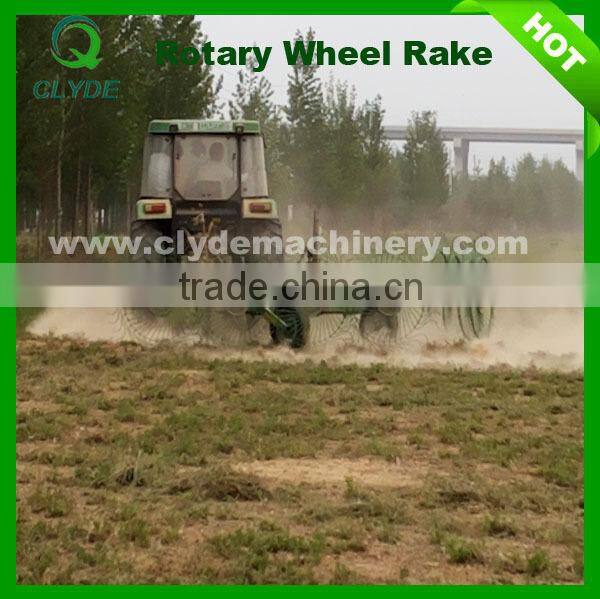

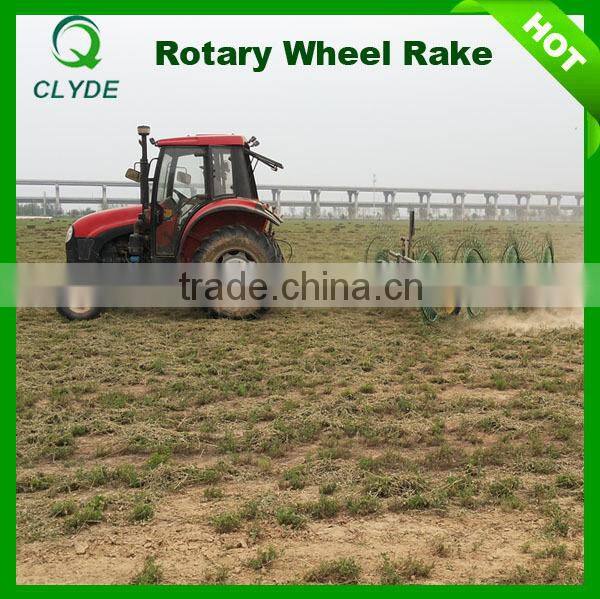

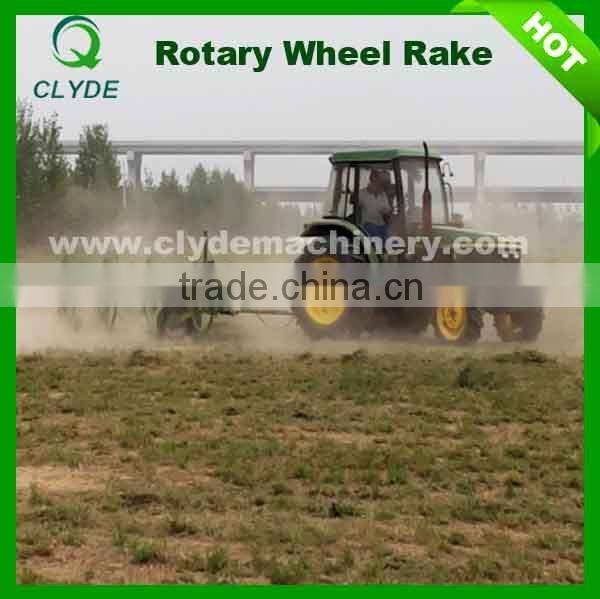

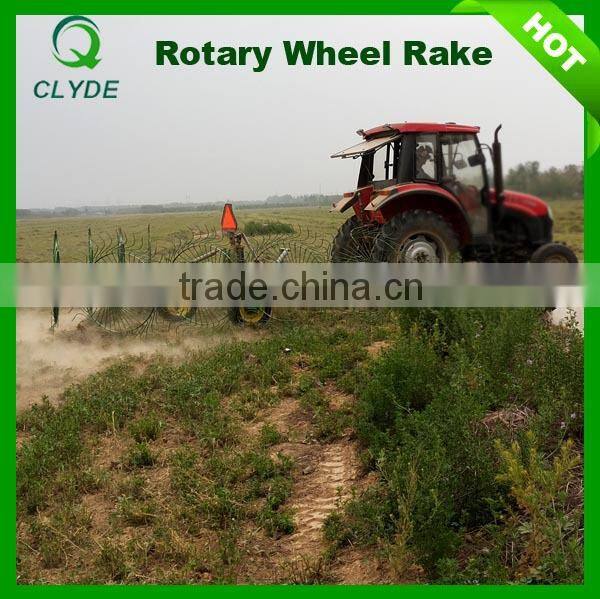

wheel rake/ rotary rake working photos

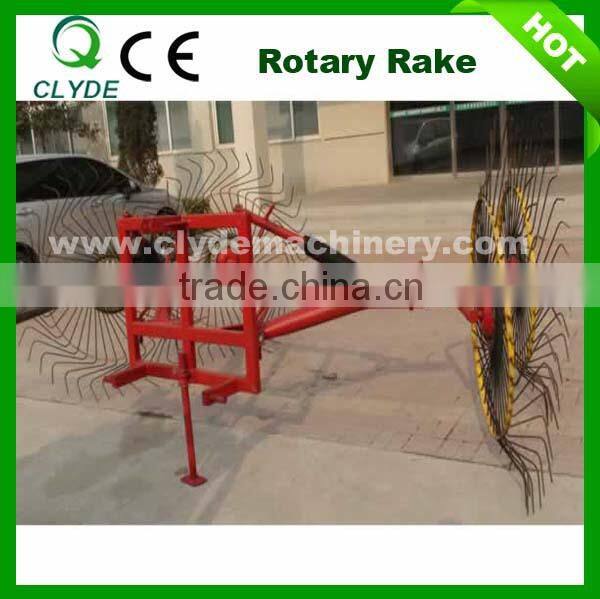

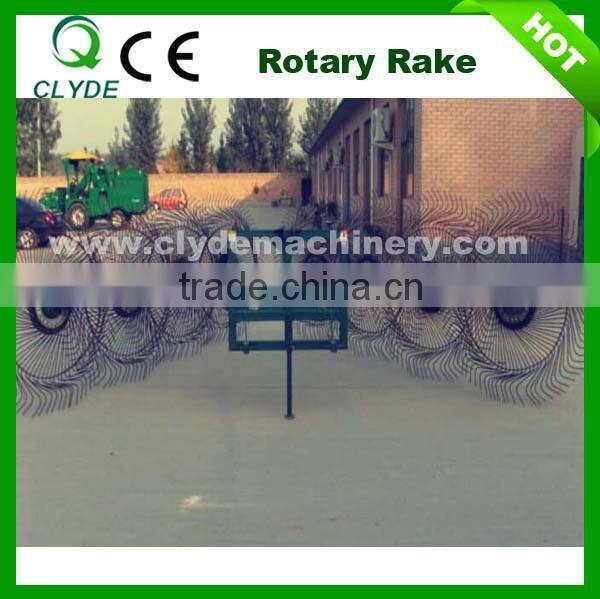

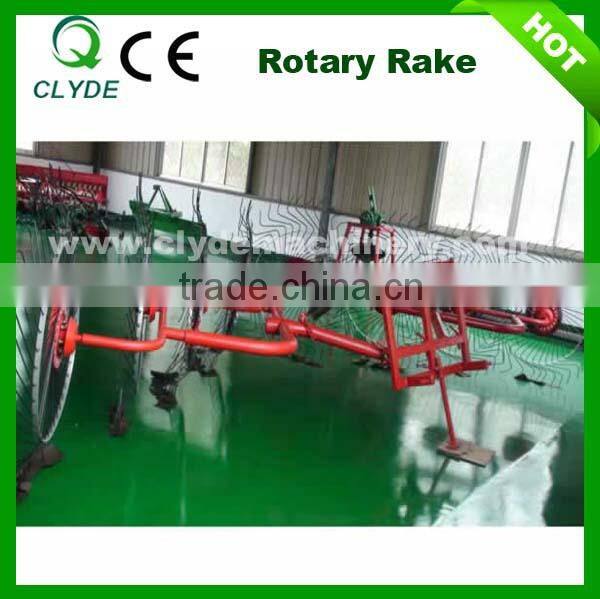

hay raker/ rotary rake detail photos

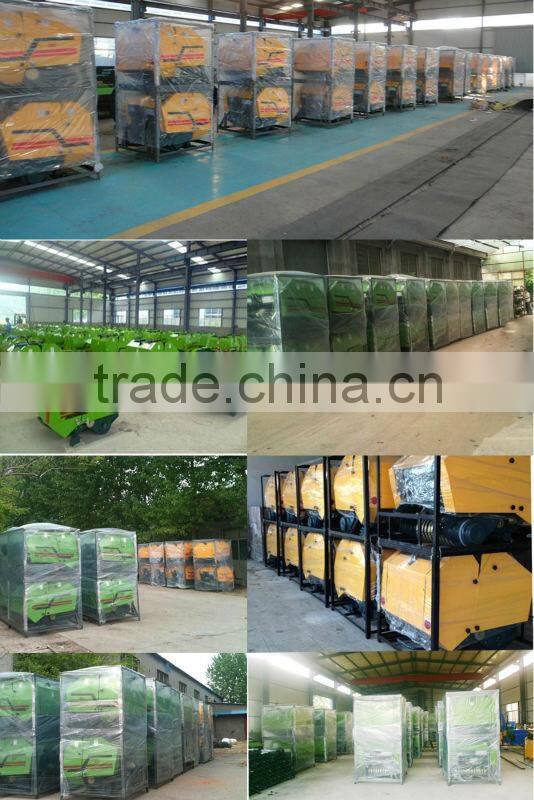

wheel rake/ hay raker/ rotary rake packing and shipping photos
Before sale: Help customers choose the most suitable equipments; provide advanced energy--saving and practical flow chart as well as responsible for designing the site.
On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contact.
After sale: Company can send technical datas for guiding to install debug the machine. We also can provide 24-hour telephone or message service.
We Supply 24 hours online service, if you have any questions on 4WD Agricultural tractor and other farm machinery, do not hesitate to contect.
