TUV CB manufacturers power converter 24v led driver NON-waterproof power supply
1. Ultra thin led driver for ceiling light, spot light, panel light ;
2.Hight efficiency=88%;
3. High PF>0.9;
4. Output Voltage Range 27-42V;
5. Output Current Range 100-650mA OR 100-550mA ;
6. Lead Time 7~15 days;
7. 100% burn-in testing before shipment;
8. good for ETL testing and Energy Star test;
9. Low THD.

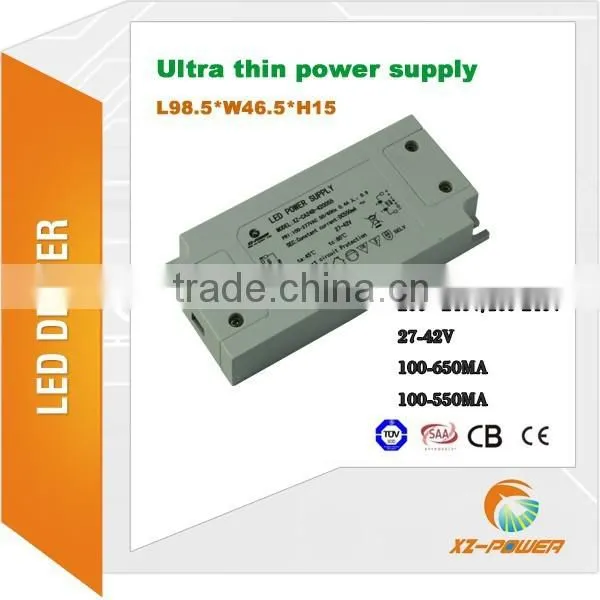

24W Ultra Thin Constant Current Output LED Driver XZ-CA24B | ||
Output DC Voltage Range |
27-42V |
27-42V |
Output Rated Current Range |
100-650mA |
100-550mA |
Output Rated Power |
up to 24W |
|
Output Load Regulation |
±5% |
|
Output Turn On Time |
0.98S max. @ input 100 - 240 Vac & max. load |
|
Input Voltage Range |
200-240Vac |
100-240Vac |
Input Frequency Range |
47-63HZ |
|
Input Power Factot Typ.@230V |
0.9 mini @ full load |
|
Efficiency Typ.@230V |
88% mini @ full load |
|
AC Current |
0.35A max. @ input 100Vac & max. load |
|
Input Inrush Current (Typ.) |
30A max. @ input 277Vac & max. load |
|
THD (Total Harmonic Dist.) |
||
Protection |
Short circuit/over current/over voltage |
|
Certificate |
TUV SAA CB CE |
|
Warranty |
3 year/ 5 year |
|
Dimension |
L98.5*W46.5*H15mm |
|
