Specifications
1. XZ-CB12B 150ma Panel Light constant current led driver 700ma2. PF=0.9
3. Efficiency=86%
4. CE Approval

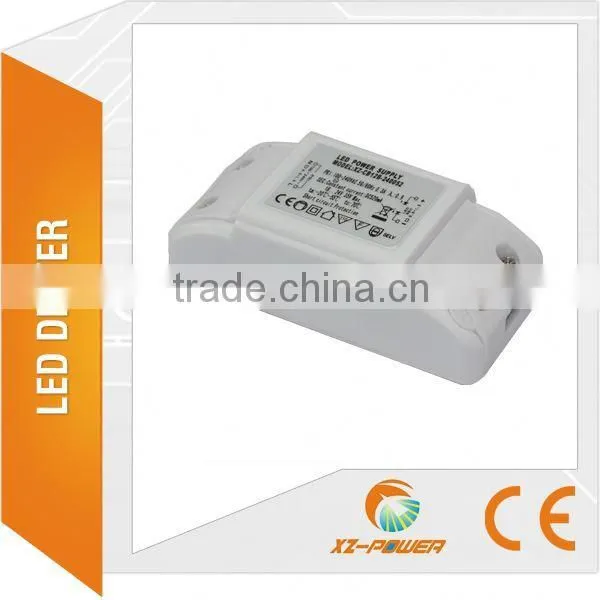

XZ-CB12B 150ma Panel Light constant current led driver 700ma
1. Supply Outer Isolation 12W 150-360MA LED Power Supply Indoor LED Constant Current Driver China Good Quality LED Driver
2. Efficiency=85% or 86%
3. PF=0.9
4. Output Voltage Range 30~42V or 25~32V
5. Output Current Range 150-360MA
6. Isolated driver with plastic case,
7. CE Certificated
8. 100% full load burn-in test
9. Overtemperature and overload protection
10. Full Isolated plastic case
11. lead time 3~15 days
12. Suitable for LED ceiling light, LED kitchen light, LED down light, LED Spot light
XZ-CB12B 150ma Panel Light constant current led driver 700ma |
|||||
Item No |
XZ-CB12B1 |
XZ-CB12B2 |
|
||
Type |
Constant Current |
||||
Structure |
external isolated |
||||
Input Volatage |
100-240V |
100-240V |
|||
Output Voltage |
30-42V |
25-32V |
|||
Output Current |
150-360ma |
720ma |
|||
Efficiency |
86% |
85% |
|||
Power Factor |
0.9 |
||||
Current Accuracy |
±5% |
||||
Working Tem |
from-10°C to 45°C |
||||
Protection |
Short circuit/over current/over voltage |
||||
Dimension |
95*46*28mm |
||||
Certificate |
CE passed |
||||
Packing Size |
451*338*441mm |
||||
MOQ |
100 |
||||
Warranty |
3 years |
||||
Model |
Power Consumption |
Input Voltage |
Output Voltage |
Output Current |
Current Accuracy |
Efficiency |
PF |
Dimension L*W*H |
XZ-CB04D |
4W series |
100-240V |
3-12V |
50-350MA |
±5% |
73% |
0.5 |
L88*W39*H23 |
XZ-CB12B |
12W series |
100-240V |
30-42V |
150MA-360MA |
±5% |
86% |
0.9 |
L95*W46*H28 |
25-32V |
360MA |
85% |
0.9 |
|||||
XZ-CB20B |
20W series |
100-240V |
30-42V |
300MA-550MA |
±5% |
86% |
0.9 |
L115*W46*H28 |
25-32V |
720MA |
85% |
0.9 |
|||||
XZ-CB40B |
40W series |
100-240V |
30-42V |
720-1100MA |
±5% |
88% |
0.9 |
L140*W46*H28 |
XZ-CB50B |
50W series |
100-240V |
30-42V |
1150-1500MA |
±5% |
88% |
0.9 |
L160*W46*H28 |
Why Choosing Xiezhen LED Power Supply |
PROFE SSION |
30 R&D staff with more than 5-year experience in LED driver development |
More than 20 production lines making LED drivers since 2009 |
STRENGTH |
All products are made with strict ISO system, 100% Burn-in tested |
Fast Customized LED Driver development |
QUALITY |
Product 100% burn-in tested, Qualified rated>99.9% |
Certificated by CE PSE UL TUV CQC CB SAA |
Service |
Inquiry Replied within 24 hours |
Sample delivered in 1~3 days, batch product delivered in 3~15 days |
10 working days for a new customized LED driver |
