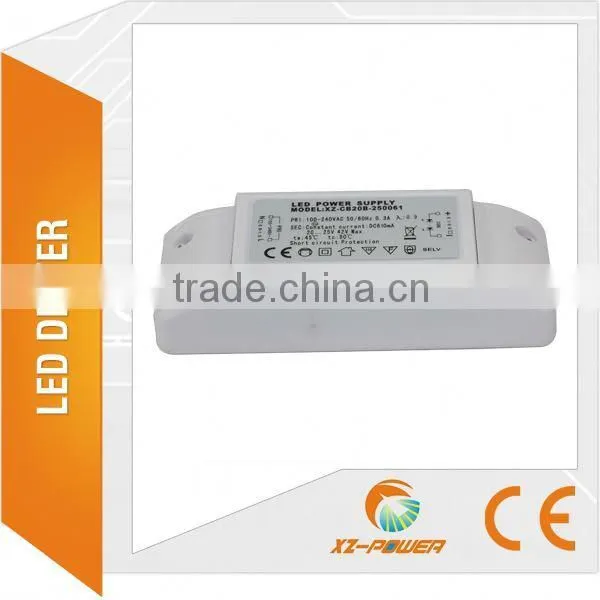

XZ-CB20B 720mA Ceiling Light led driver dimmer 220v to 12v
- 200000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Xiezhen Power | Model Number: | XZ-CB20B |
Output Power: | 1 - 50W | Output Type: | Single | Input Voltage: | Other, 100~240V |
Output Voltage: | 30~42V OR 25~32V | Output Frequency: | 47~63Hz | Output Current: | 300~720mA |
Product Description
Specifications
1. XZ-CB20B 720mA Ceiling Light led driver dimmer 220v to 12v2. PF=0.9
3. Efficiency=85%
4. CE PSE
XZ-CB20B 720mA Ceiling Light led driver dimmer 220v to 12v
1. Supply Outer Isolation 20W 300MA-720MA LED Power Supply
2. High Efficiency=85%
3. High PF=0.9
4. Output Voltage Range 30~42V OR 25~32V
5. Output Current Range 300~550mA OR 720mA
6. Isolated driver with plastic case,
7. CE Certificated
8. 100% full load burn-in test
9. Overtemperature and overload protection
10. Full Isolated plastic case
11. lead time 3~15 days
12. Suitable for LED ceiling light, LED kitchen light, LED down light, LED Spot light
XZ-CB20B 720mA Ceiling Light led driver dimmer 220v to 12v | ||||
Item No | XZ-CB20B | XZ-CB20B2 | ||
Type | Constant Current | |||
Structure | external isolated | |||
Input Volatage | 100-240V | 100-240V | ||
Output Voltage | 30-42V | 25-32V | ||
Output Current | 300-550ma | 720ma | ||
Output Power | 20W | |||
Power Factor | 0.9 | |||
Efficiency | 0.85 | |||
Current Accuracy | ±5% | |||
Working Tem | from-10°C to 45°C | |||
Protection | Short circuit/over current/over voltage | |||
Dimension | 115*46*28mm | |||
Certificate | CE passed | |||
Packing Size | 451*338*441mm | |||
MOQ | 100 pcs |
Model | Power Consumption | Input Voltage | Output Voltage | Output Current | Current Accuracy | Efficiency | PF | Dimension L*W*H |
XZ-CB04D | 4W series | 100-240V | 3-12V | 50-350MA | ±5% | 73% | 0.5 | L88*W39*H23 |
XZ-CB12B | 12W series | 100-240V | 30-42V | 150MA-360MA | ±5% | 86% | 0.9 | L95*W46*H28 |
25-32V | 360MA | 85% | 0.9 | |||||
XZ-CB20B | 20W series | 100-240V | 30-42V | 300MA-550MA | ±5% | 86% | 0.9 | L115*W46*H28 |
25-32V | 720MA | 85% | 0.9 | |||||
XZ-CB40B | 40W series | 100-240V | 30-42V | 720-1100MA | ±5% | 88% | 0.9 | L140*W46*H28 |
XZ-CB50B | 50W series | 100-240V | 30-42V | 1150-1500MA | ±5% | 88% | 0.9 | L160*W46*H28 |
Why Choosing Xiezhen LED Power Supply |
PROFE SSION |
30 R&D staff with more than 5-year experience in LED driver development |
More than 20 production lines making LED drivers since 2009 |
STRENGTH |
All products are made with strict ISO system, 100% Burn-in tested |
Fast Customized LED Driver development |
QUALITY |
Product 100% burn-in tested, Qualified rated>99.9% |
Certificated by CE PSE UL TUV CQC CB SAA |
Service |
Inquiry Replied within 24 hours |
Sample delivered in 1~3 days, batch product delivered in 3~15 days |
10 working days for a new customized LED driver |
