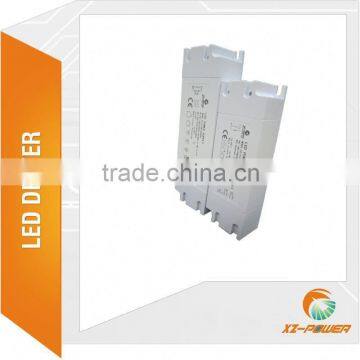

0-10V Chinese Best Energy Star Passable constant current led driver
1. 0-10V dimmable led driver for ceiling light, spot light, panel light
2.Hight efficiency=84% OR 86%
3. High PF=0.9
4. Output Voltage Range 27-45V OR 14-29V
5. Output Current Range 200-350mA OR 200-500mA
6. Lead Time 7~15 days;
7. 100% burn-in testing before shipment;
8. good for ETL testing and Energy Star test
9. Low THD
0-10V Chinese Best Energy Star Passable constant current led driver | ||
Item No |
XZ-CI16B |
|
Type |
0-10V Dimmable Constant Current led driver |
|
Structure |
external isolated dimmable led driver |
|
Input Volatage |
100-277V |
|
Output Voltage |
27-45V |
14-29V |
Output Current |
200-350mA |
200~500mA |
Efficiency |
0.84 |
0.86 |
Output Power |
3~16W |
|
Power Factor |
0.9 |
|
Current Accuracy |
±5% |
|
Working Tem |
from-10°C to 45°C |
|
Protection |
Short circuit/over current/over voltage |
|
Dimension |
L120*W40*H27mm |
|
Certificate |
TUV Approving |
|
MOQ |
200Pcs |
|
Warranty |
2 years |
|
| ||
Model |
Power |
Input Voltage |
Output Voltage |
Output Current |
Current Accuracy |
Efficiency |
(PF) |
Dimension |
L*W*H | ||||||||
XZ-CI16B |
16W series |
100-277V |
27-45V |
200-350MA |
±5% |
84% |
0.9 |
L120*W40*H27 |
14-29V |
200-500MA |
84% |
0.9 |
|||||
XZ-CI25B |
25W series |
100-277V |
27-45V |
360-550MA |
±5% |
86% |
0.9 |
L120*W40*H27 |
14-29V |
500-750MA |
86% |
0.9 |
|||||
XZ-CI35B |
35W series |
100-277V |
27-45V |
560-750MA |
±5% |
87% |
0.9 |
L145*W42*H29 |
XZ-CI45B |
45W series |
100-277V |
27-45V |
760-1050MA |
±5% |
88% |
0.9 |
L145*W42*H29 |
Why Choosing Xiezhen LED Power Supply |
PROFESSION |
30 R&D staff with more than 5-year experience in LED driver development |
More than 20 production lines making LED drivers since 2009 |
STRENGTH |
All products are made with strict ISO system, 100% Burn-in tested |
Fast Customized LED Driver development |
QUALITY |
Product 100% burn-in tested, Qualified rated>99.9% |
Certificated by CE PSE UL TUV CQC CB SAA |
Service |
Inquiry Replied within 24 hours |
Sample delivered in 1~3 days, batch product delivered in 3~15 days |
10 working days for a new customized LED driver |
If you are interested more XZ power products, please visit our website
