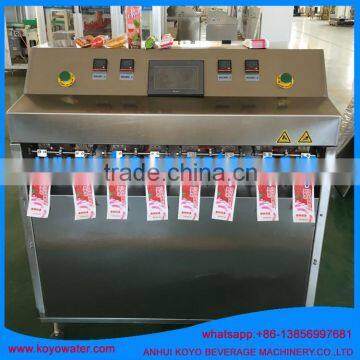

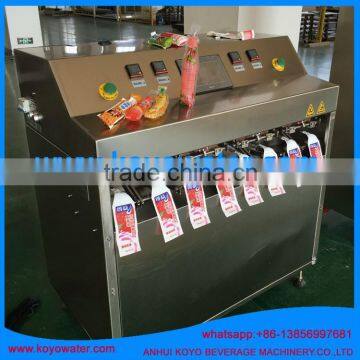

bag filling and sealing machine for grape juice

bag filling and sealing machine for grape juice

Specifications

1. 8 filling nozzles/8 filling head/ 8 head needle (can be customized)

2. computer control filling volume
3. no leaking filling and save cost

4. high speed 3500-4000bags/hour (different size bag with different speed).
5. easy to operation
6. filling all kinds bottle shaped bags, stick pouches, stand up pouches

Applications:

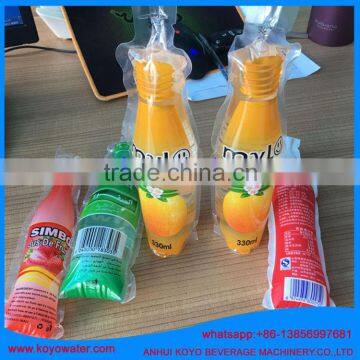

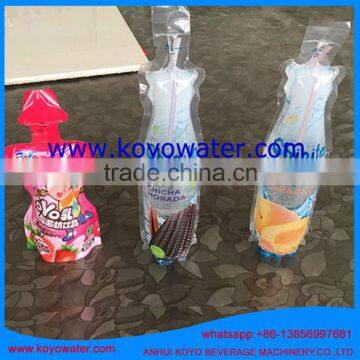

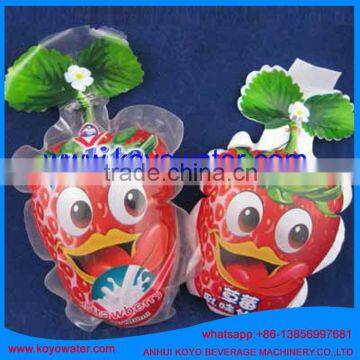

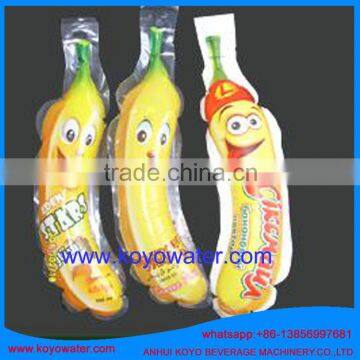

The stick pouch is a popular international plastic bag. It is also called Expansion Bags, inflation bags, bar milk bags, bar yogurt bags, honey sticks, preformed bags, Plastic Bag, Stand Up Pouch(without screw cap), Spout Pouch (with screw cap), Pre-Shaped Bag, Formed Bag, Bottle Shape Pouch, Fruit Shape Pouch, Fruit Shape Bag, Various Shape bag, Sword Shape Pouch, Ice Lolly Pouch, Sachet, Doypack, tube package bags, etc.

It is widely used in dairy products and any different fluid viscosity  products  and such as drinks, mineral water, pure water, dairy, milk, yogurt, soy milk, jelly, beverage, lactic acid drinks, Vegetable Protein Drinks, Natural Fruit Juice, Coconut juice, pineapple juice, strawberry juice, Fruit Jam, seasoning, Ice Pop, honey, honey sticks, Tomato Sauce, Salad Dressing, Japanese egg tofu, soy sauce, cooking oil, coconut oil, cleaning supplies, alcohol, Viscous liquid, semi-fluid, and liquid chemical, big viscosity semi-fluid, grainy orange products, Coconut, pulp milk alcohol cream, shampoo, daily chemicals, liquid laundry detergent, cosmetic cream, liquid soap, foaming liquid, food industry and chemical industry, medicine, pesticide and other industries, etc.

It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.

Features

1. It adopts 304 stainless steel, and PLC system control.

2. It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.

3. Measure and number on touch screen is adjustable by pressing the button. Easy to operation.

4. Unique sealing part design, seal suitable location and firm. It add Teflon material in the sealed parts when you want to seal PE or Nylon pouch.

5. Unique filling nozzles and anti-drip valve design, no leaking filling and save cost.
6. Comprehensive safety design, with earth-leakage protection.
7. Unique sanitary pneumatic forced pump design. It improves the filling volume control accuracy less than ±1.

Technical data:
