W-TEL Telecom Outdoor Metal Power Industrial Wall Mountable Battery Box

Specifications

telecom outdoor cable distribution box

power distribution box

fiber distribution box

mcb distribution box

plastic distribution box

W-TEL plastic metal wall mountable battery box
cold rolled sheet

industrial distribution box

1>

 outdoor typeThe body of the case is made of aluminum alloy castings, with spray-painted face, elegant and anti-corrosion; the reasonable structure of right-opened case-cover and reversible block leading to better airproof and easy opening or operation.

There is pressive button for fixing cable indoor, in order to prevent from dropping of cable lug when forcing; it is better airproof for using rubber sealing loop between the body and the cover; reversible block leading to easy opening or operation; the fixing method as special design can save installation time and to lighten labor intensity of pole in field; add the space of the case properly, that can insure the good sealing of bottom case cover when fully loaded.

2>

Indoor type: attractive appearance, borderline smooth, reversible block leading to easy opening or operation.

3>

Model Circular Branch Box: it has the ability of avoiding thunder attacking and over-current or over-voltage;

Apply the vacuum glass tube to improve the insulative property and observe the inside conditions easily and also has the special grounded device.

------------------------------------------------------------------------------------------------------------------------------------

XFO-112 Type Screw Outdoor Branch Box

Uses and Property:

• Suitable for the connection between branch line and the communication line in the city, county and countryside.
• The body of the case is made of aluminum alloy castings, smooth and stable.
• The reasonable structure of right-opened case-cover and reversible block leading to better airproof and easy opening or operation.
• pressive button for fixing cable indoor, in order to prevent from dropping of cable lug when forcing.
• the fixing method as special design can save installation time and to lighten labor intensity  of pole in field
• add the space of the case properly, that can insure the good sealing of bottom case cover when fully loaded.

Main Technical Indexes:

• Environmental temperature 25+40
• Relative humidity<95%
• Contact resistance between the lead and the end≤5×10-3Ω
• Voltage-resistance strengthnon-puncture, no arc-over 500VAC/1min

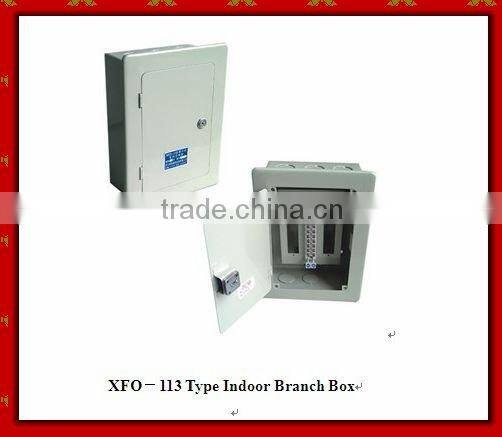

XFO-113 Type Indoor Branch Box

Uses

• Suitable for the connection and distribution between indoor communication cables and the user lines.

Property

• The body case is made of armor plate with high quality, with spray-painted face, smooth and stable, anti-corrosion.
• The reasonable structure of right-opened case-cover and reversible block leading to easy opening or operation.

Main Technical Indexes

• Environment temperature25+40
• Relative humidity<95%
• Insulation resistance between the end and the box≥5×103MΩ
• Contact resistance between the lead and the end≤5×10-3Ω

Voltage-resistance strengthnon-puncture, no arc-over 500VAC/30s

We are a hi-tech enterprise (headquarter - Hong Kong) which is specialized in R&D, manufacturing, marketing of communication network physical connection equipment, providing a full range of physical connection solutions and products. Nowadays, the main products of our company are Fiber Optic Closure, Optic Fiber distribution (Terminal) Box, Optical Passive Components. During these last years we have successfully R&D the outdoor telecom cabinet (fan type, heat exchange type and air-conditioner type) and the FTTx solving project. Our products are widely used in the industries of telecom, Netcom, china mobile, underground, highway, airport project and the controlling system of railway.
