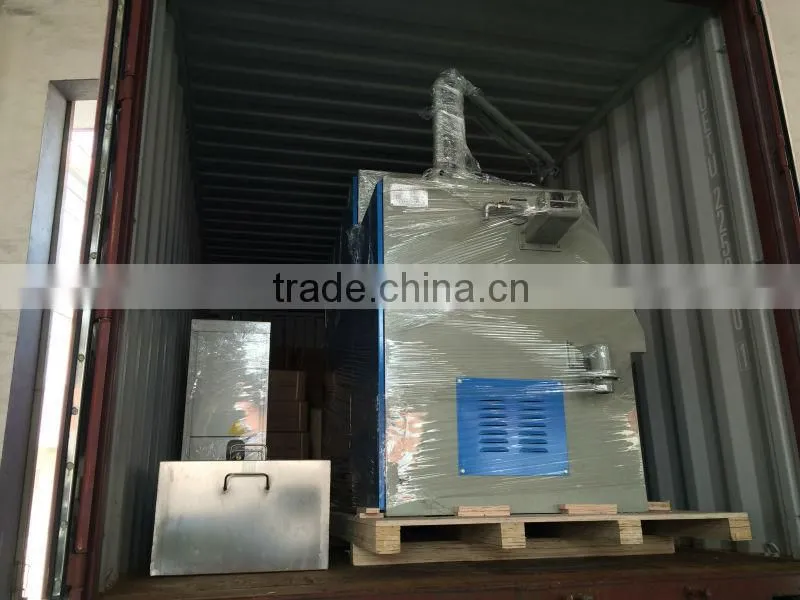

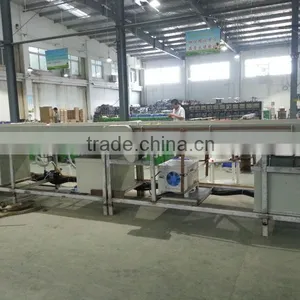

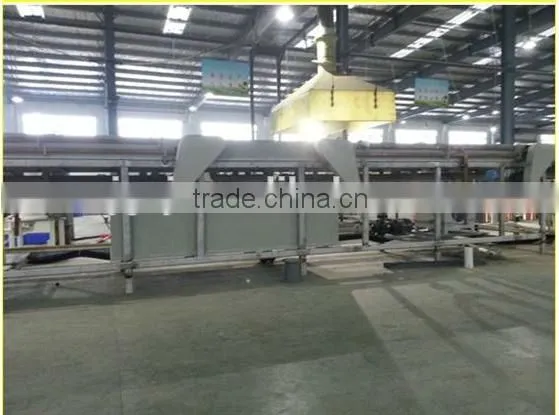

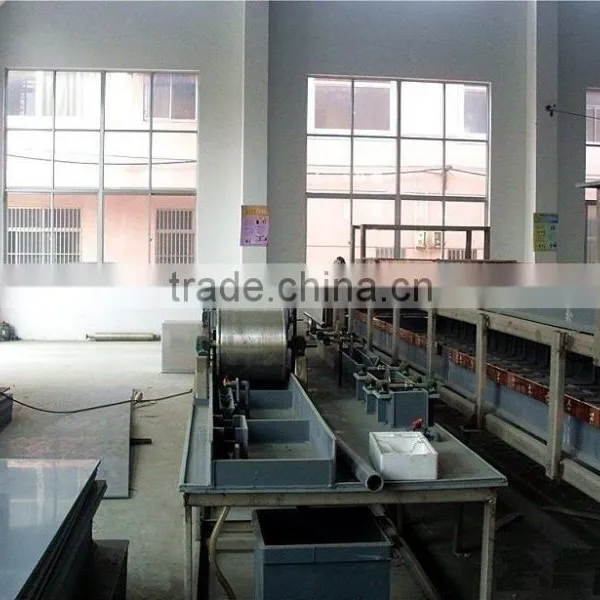

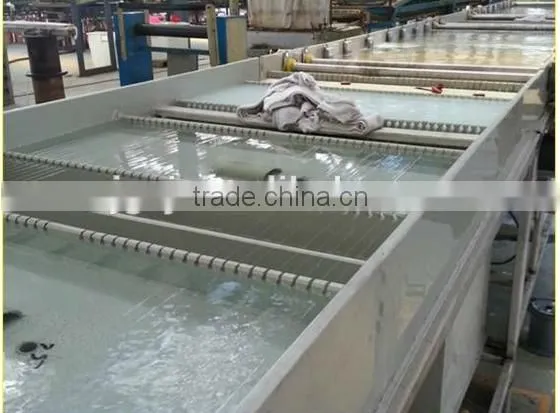

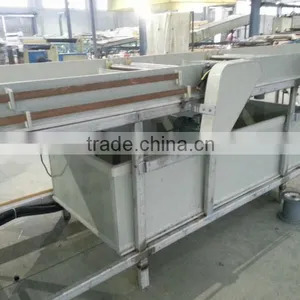

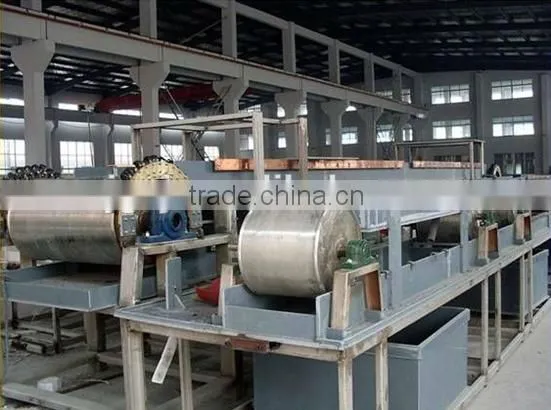

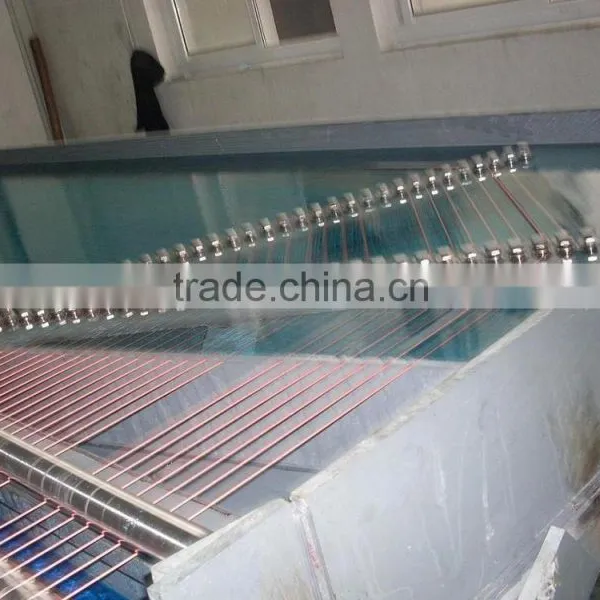

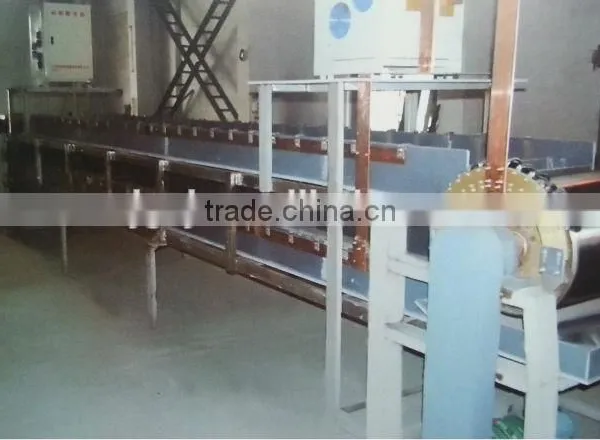

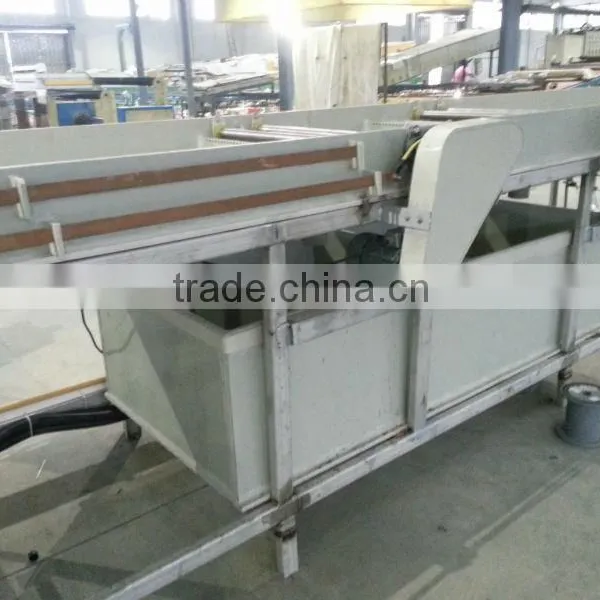

LY-3000A/5000A/8000A copper wire plating machine
Usage for LY-3000A/5000A/8000A Electroplating Machine:
LY-3000A/5000A/8000A Electroplating Machine can make copper electroplating steel(CCS) wire,copper electroplating brass(Cu-Cu) wire and copper electroplating aluminium(CCA) wire.
Technical Parameter for LY-3000A/5000A/8000A Electroplating Machine :
Machine Type |
3000A |
5000A |
8000A |
Control System |
Button |
||
Main Power Control |
Controlled by Electric Motor |
||
Take-up Power Control |
Controlled by Torque Motor |
||
Diameter of Wire (mm) |
Ø1.00-Ø1.20 |
Ø1.20-Ø1.60 |
Ø1.60-Ø3.00 |
Main Motor (KW) |
4 |
5.5/7.5 |
7.5/11 |
Take-up Motor |
YLJ132-16 |
YLJ132-40 |
YLJ132-40 |
Take-up Method |
Shaft/ Axis |
||
Traversing |
Palm Shaft |
||
Transmission |
Tri-Angle Belt Chain |
||
Speed (m/min) |
0-100 |
0-100 |
0-100 |
Rectifier (A) |
3000 |
5000 |
8000 |
Dimension (L×W×H)(mm) |
18000×1200×1400 |
22000×1600×1600 |
23000×1800×1600 |
Weight (KG) |
4000 |
5000 |
65000 |
Quantity of Wire |
Sing Head or Multi Heads |
||
After-Sale Service:
1. In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2. Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
