ss Wire Drawing Plant

ss Wire Drawing Plant photo-1
ss Wire Drawing Plant photo-2

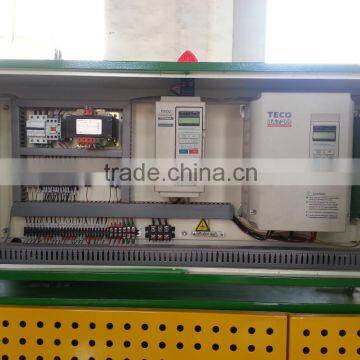

ss Wire Drawing Plant photo-3
ss Wire Drawing Plant photo-4
ss Wire Drawing Plant photo-5
US$ 8,000 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
0.20-2.0mm
Outlet Diameter:
0.025-1.0mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Inlet Diameter 0.20-2.0mm
Outlet Diameter 0.025-1.0mm
Place of Origin Jiangsu, China
Brand Name Liya
Model Number LY-12GW
Voltage 380V or as customer specified.
Certification CE,ISO
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

 Hot Sale Liya Brand  ss wire drawing plant

ss wire drawing plant 1. Usage for LY- Stainless Steel Wire Drawing :



2. Main Features:



1. Two motors can precisely control the spool wire tension to reduce the slip ratio of wire to a minimum manner. 2. Transmission by timing belts.  3. Lubrication by water immersion.





3. Technical Parameter:





Power Control

Dual frequency conversion control

Most modulus

12

Inlet wire diameter

Φ2.0mmΦ1.5mm

Wire finished diameter

Φ1.0Φ0.50 mm

Maximum line speed

MAX300MPM

Slip ratio

15%

Constant speed capstan slip ratio

13%

Host body structure

Welded steel

Capstan

Spray tungsten carbide Capstan

Drawing motor

22KW

Take-up Power

5.5KW

Max.capstan diameter

Φ350mm

Fixed speed capstan diameter

Φ260mm

Take-up shaft dimensions

Φ300mm or according to customer specified

Take-up way

Top center screw tight type

Pay-off way

110W synchronous motor

Transmission

Timing belt drive

Take-up control

PID automatic control variable bit detection

Deflection detection device

Arm type

Tension adjustment method

Counterweight way

Maximum load

50KG

Drawing Lubrication

Full immersion

Brake

Electromagnetic brake

Bearing Lubrication

Oil-free

Voltage

380V 50HZ or specified voltage

Drawing oil

40 liters / min

Weight

2000KG



The drawing machine is used for drawing stainless or alloy wire .

 ss wire drawing plant

 ss wire drawing plant

 After-Sale Service:

1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary. 2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
