Best Price Hot Sale LY-13D Automatic Wire cold drawing machine
1.Usage of LY-13D Automatic Intermediate Wire Drawing Machine:
LY-13D Intermediate Wire Drawing Machine is used to draw copper or aluminum wire from diameter 2.80-3.50mm to 0.60-2.20mm.
2.Main Features of LY-13D Automatic Intermediate Wire Drawing Machine:
1. Double inverters and auto tension control system.
2. Applying 250 cast-iron as main frame, and preision processing. No shock during operation.
3. Capstan treated with carbon fiber.
4. Suitable for continuous annealing machine, take up machine with or without shaft coiler machine.
3.Technical Parameter of LY-13D Automatic Intermediate Wire Drawing Machine:
Model |
LY-13D |
Inlet Diameter(mm) |
Ø2.80-3.50 |
Outlet Diameter (mm) |
Ø0.60-2.20 |
Max. Drawing Speed (m/min) |
1500 |
Max. Drawing Dies No. |
13 |
Slip Ratio of m/c |
20% |
Fix Speed Capstan Slip Ratio |
18% |
Capstan |
Tungsten Plasma |
Max. Capstan Dia. (mm) |
Ø280 |
Fix Speed Capstan Dia. (mm) |
Ø300 |
Frame |
Ironed Cast |
Main Motor |
55KW |
Spooler Motor |
15KW |
Revise System |
PID Synchronous Spooler |
Inverter Control |
Double Inverter Control |
Transmission |
Gear |
Send-Out Method |
Over Head |
Traversing Unit |
Decelerate Motor |
Tension Control |
Pneumatic Balance by Swing Arm |
Lubrication |
Immersion |
Power Source |
380V |
Brake |
Pneumatic |

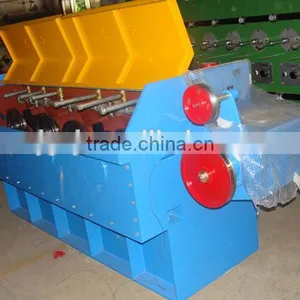

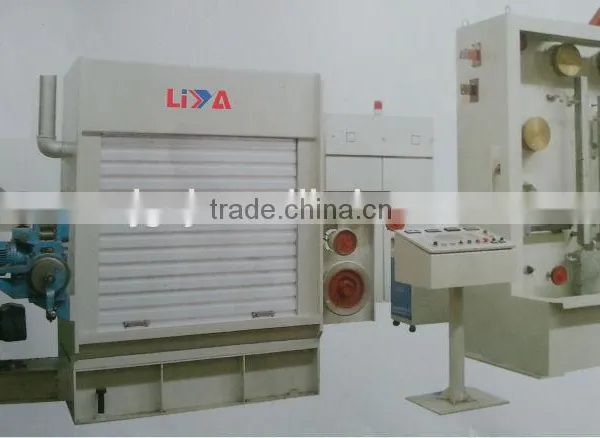

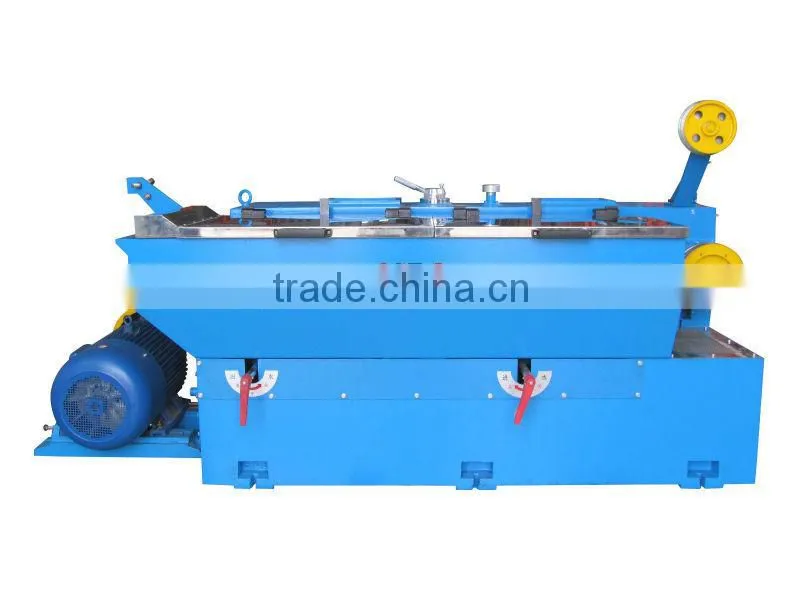

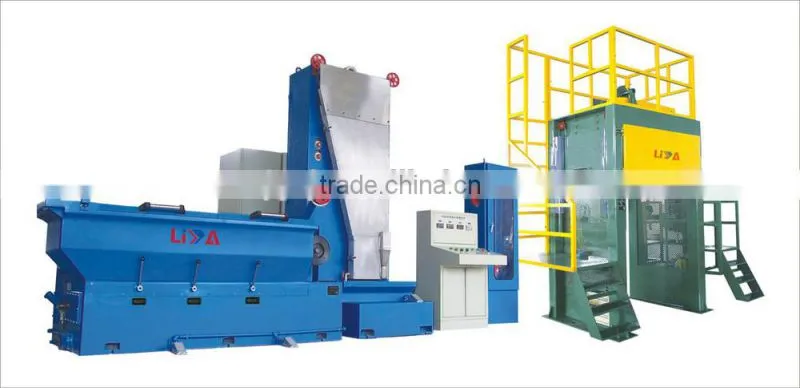

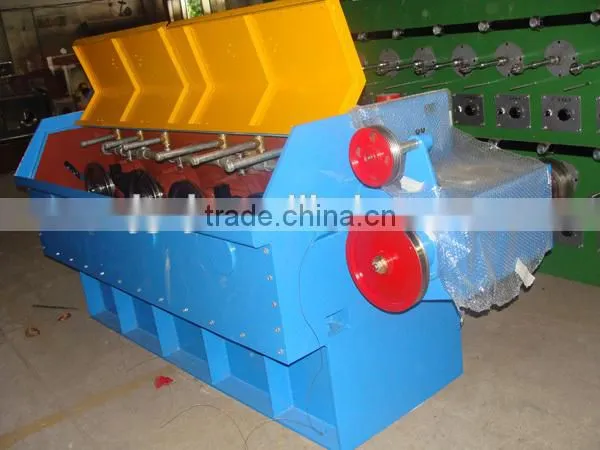

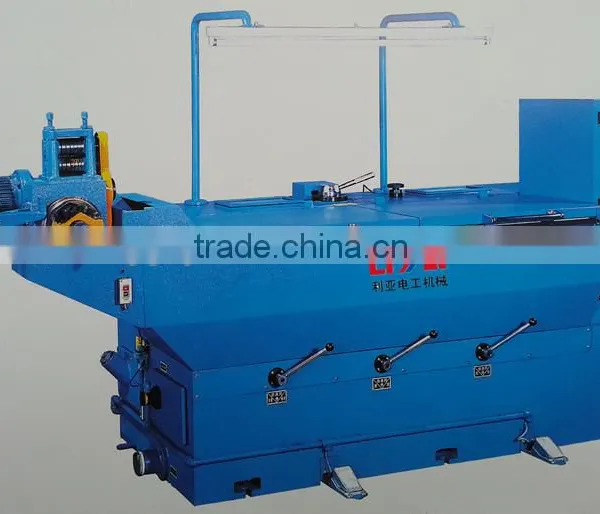

4.Pictures of LY-13D Intermediate Wire Drawing Machine:

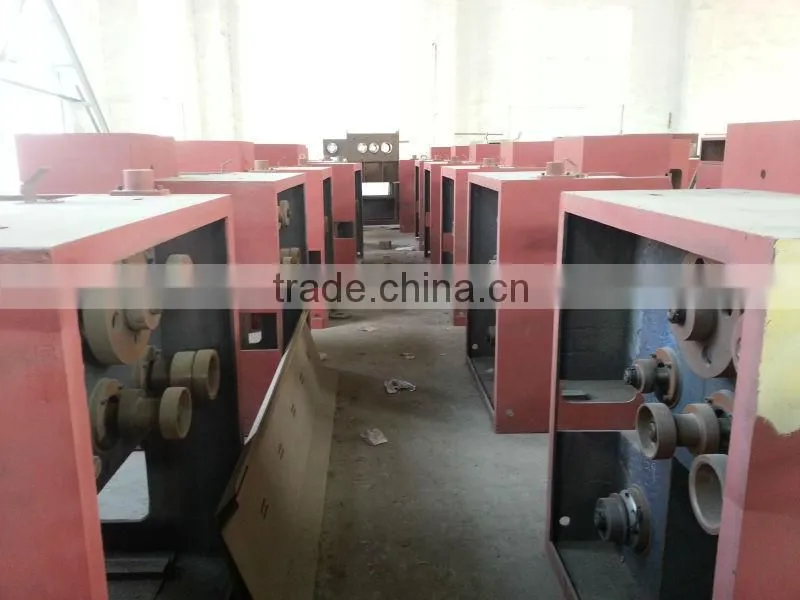

5. Warehouse:
6.Package and Delivery: wooden pallet or film wrapped.
7.Factory:
8.After-Sale Service:
1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
