Cable Making Machine/Intermediate Fine Copper Wire Drawing Machine and Annealing Machine

Cable Making Machine/Intermediate Fine Copper Wire Drawing Machine and Annealing Machine photo-1

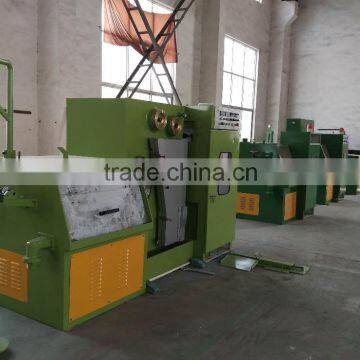

Cable Making Machine/Intermediate Fine Copper Wire Drawing Machine and Annealing Machine photo-2
US$ 1 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Chengjun
Model Number:
CJ-18DT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Chengjun
Model Number CJ-18DT
Usage Multifunctional

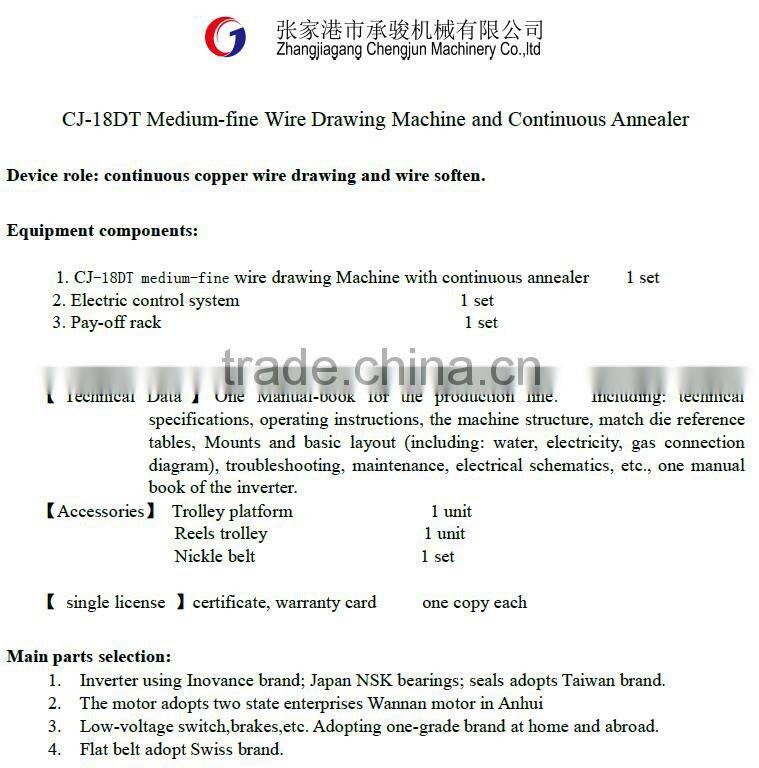

Cable making machine/Intermediate fine copper wire drawing machine and annealing machine



Cable making machine/Intermediate fine copper wire drawing machine and annealing machine

Technical Parameters of cable making machine/Intermediate fine copper wire drawing machine and annealing machine

Power Control

Dual frequency control

Max. Drawing dies quantity

18

Inlet wire diameter

Φ0.8—Φ1.6 mm

Wire finished diameter

Φ0.20—Φ0.6 mm

Maximum line speed

MAX1500m/min

Slip ratio

15%

Constant speed capstan slip ratio

13%

Host body structure

Steel welding, tempering

Capstan

Spray tungsten carbide

Drawing motor

15KW

Take-up Power

4KW

Max.capstan diameter

Φ200mm

Fixed speed capstan diameter

Φ200mm

Annealing wheel diameter

Φ200mm

Annealing voltage

DC 0~60V

Annealing current

DC 0~600A

Annealing protect mode

Steam or water

Coiling shaft size

Φ300mm ( or as asked)

Take up method

Top center screw tight type

Traversing way

90W Geared Motor

Transmission

Flat belt / synchronous belt drive

Coiling control

PID automatic control variable bit detection

Deflection detection device

Arm type

Tension adjustment method

Counterweight way

Maximum load

50KG

Drawing Lubrication

Spraying

Brake

Electromagnetic brake

Voltage

380V 50HZ

Drawing oil

40L/minute

Weight

2000KG

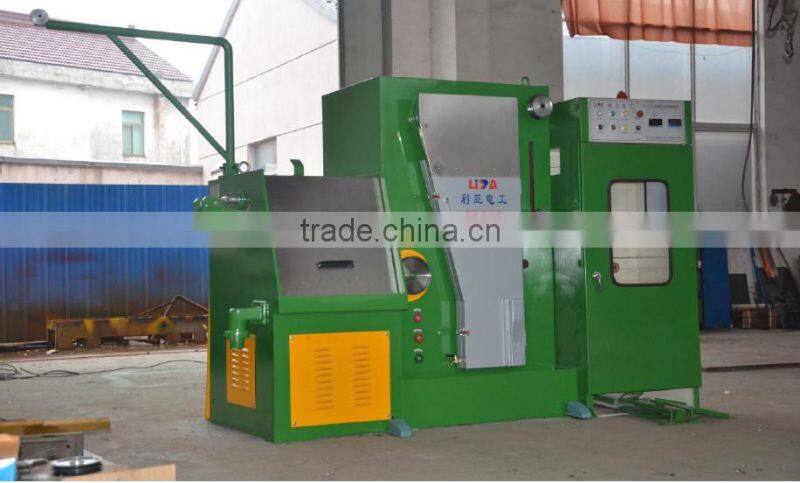

Cable making machine/Intermediate fine copper wire drawing machine and annealing machine

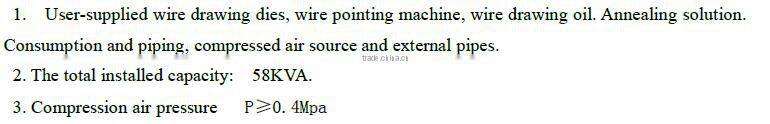

(3). User requirements:

Cable making machine/Intermediate fine copper wire drawing machine and annealing machine

Delivery Pictures:

Cable making machine/Intermediate fine copper wire drawing machine and annealing machine

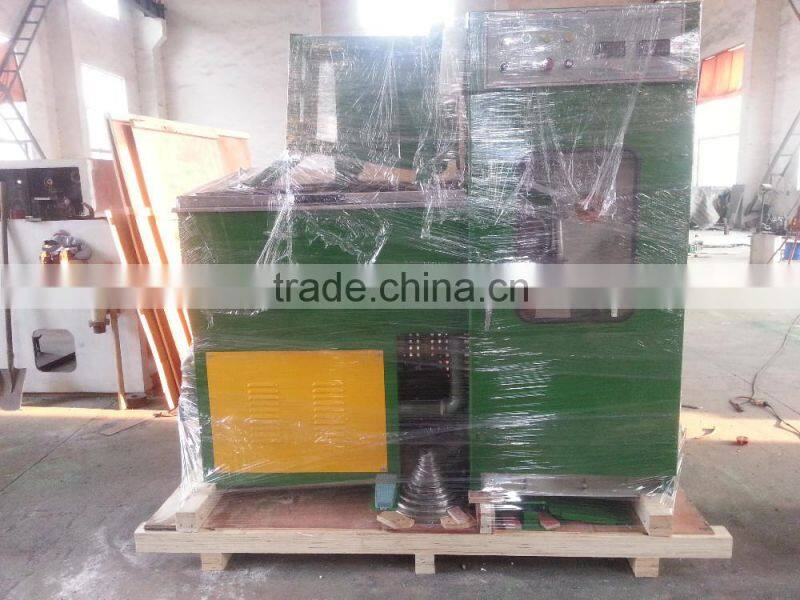

Packing wooden pallet picture

Cable making machine/Intermediate fine copper wire drawing machine and annealing machine

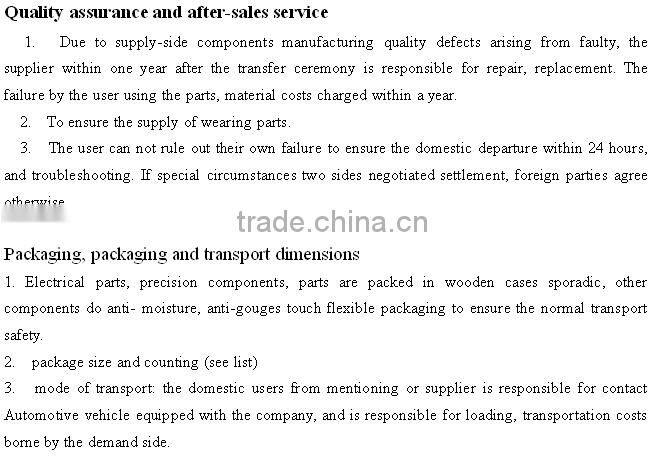

After-sales service:

Cable making machine/Intermediate fine copper wire drawing machine and annealing machine

Welcome you to contact us for the details.
