Specifications

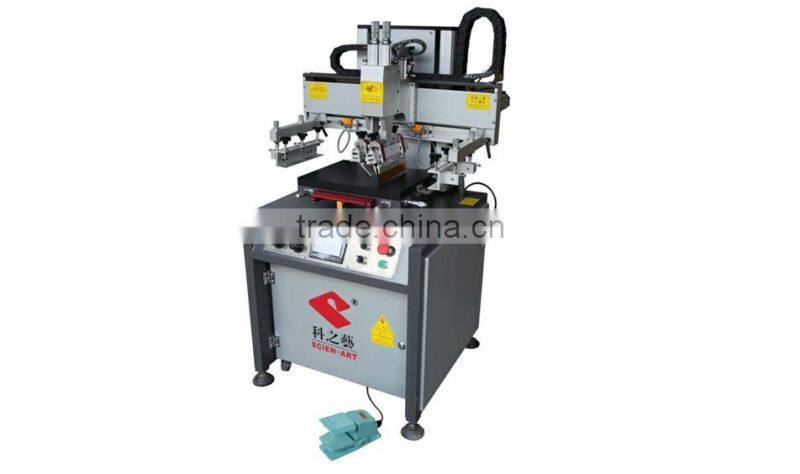

1.high quality and mature technology flat silk screen printing machine2.Brand assurance
3.Stable performance/ high accuracy
1. Application Scope:
Mobile phone cover ,Mobile phone back ,The tablet pc cover plate
2. Characteristics:
Printing driving force supply by imported servo motor, more smoothly
Many parts can be free choosed by the customer , choosing is more flexible
Bedplate of hard anodized aluminum, more effectively prevent glass from scratching
Touch Screen control, various details of fine-tuning to precision control
3. technical parameters:
Model |
YKP-2030A/B |
YKP-3045A/B |
Workbench Area (mm²) |
300×400 |
400×550 |
Max Print Area (mm²) |
200×300 |
300×450 |
Max Screen Size(mm) |
450×620 |
550×720 |
Accuracy(mm) |
±0.05 |
±0.05 |
Thickness of printing stock(mm) |
LESS THAN 40 |
LESS THAN 40 |
Printing Speed (pcs/h) |
960 |
900 |
Printing Pressure(Kgf/cm²) |
4.0~6.0 |
4.0~6.0 |
Rated Power (V) |
380 |
380 |
Source Power (kw) |
1.5 |
1.5 |
Dimension (mm) L×W×H |
830×720×1580 |
980×820×1580 |
Weight (kg) |
|
|
|
|
|
|
|
|
We can manufacture according to customer’s requirements
A corner of our factory
OUR Exhibition
OUR Certificate
