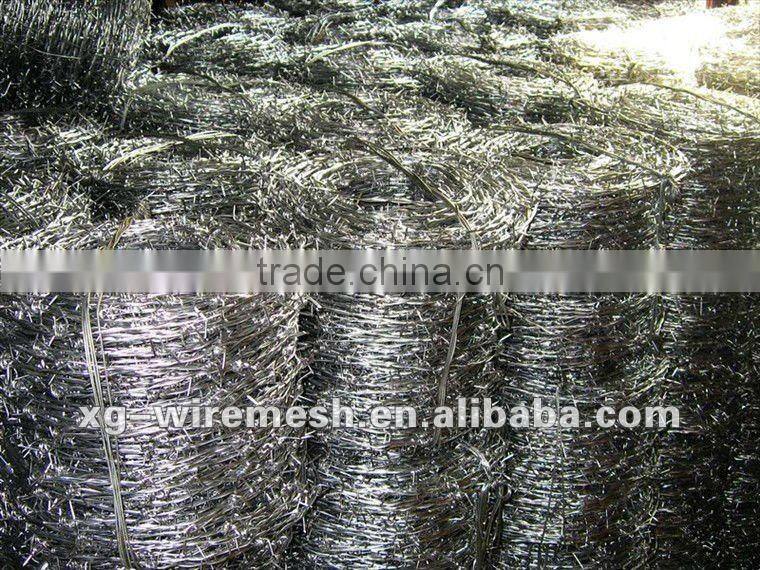

Razor barbed wire

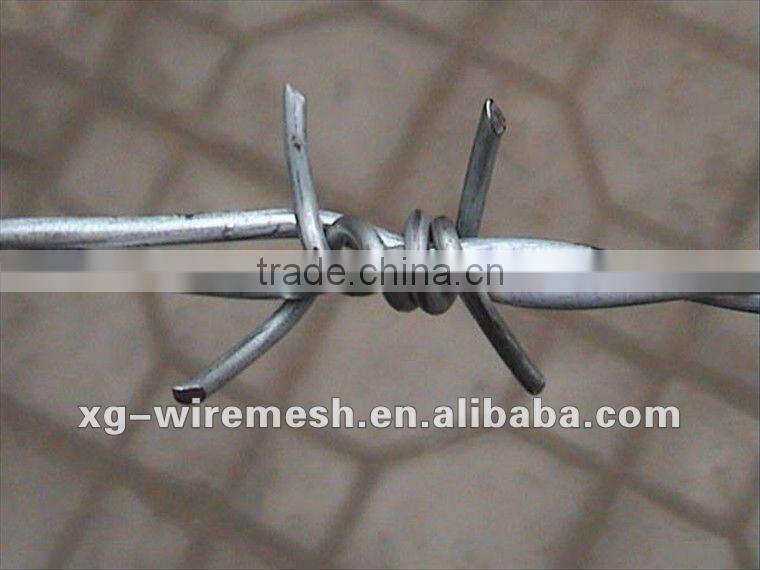

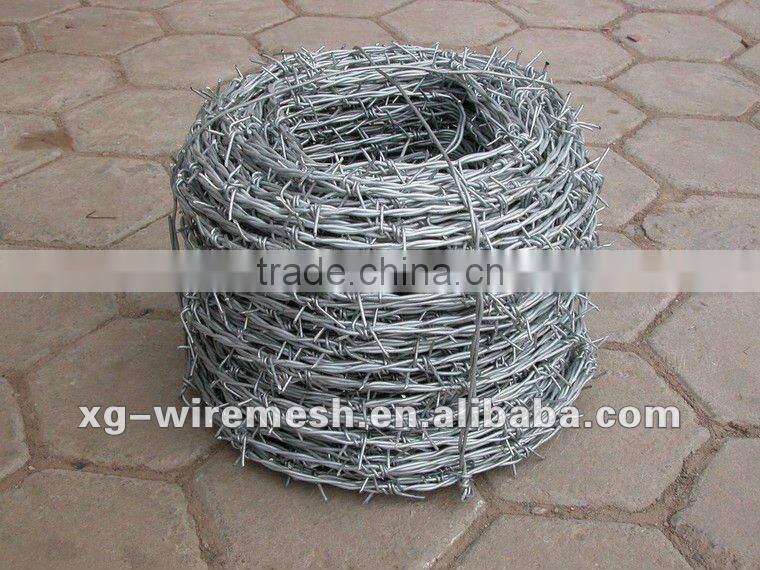

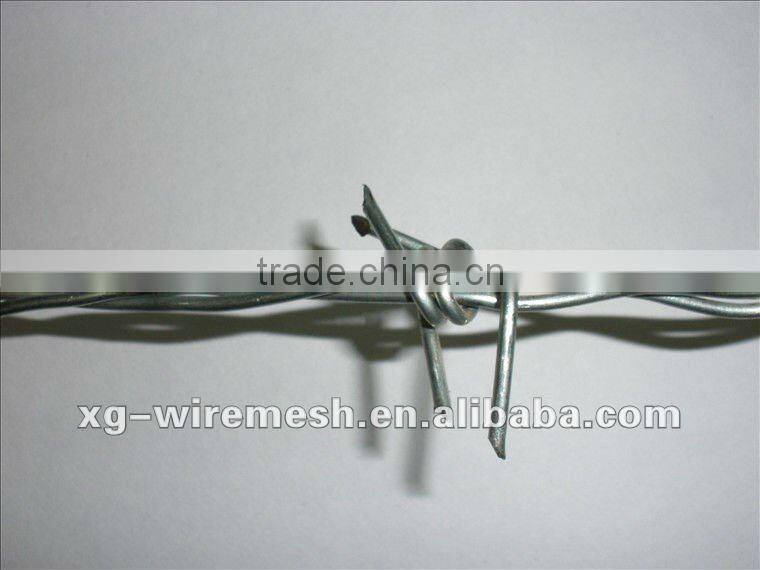

Thorn rope cited by the full automation of the barbed wire machine twist and weaving. Commonly known as barbed wire.
Product type: single and double wire s series s. Raw materials: high quality low carbon steel wire ( electric galvanized, hot galvanized, plastic, wire spray ), blue, green, yellow and other colors.

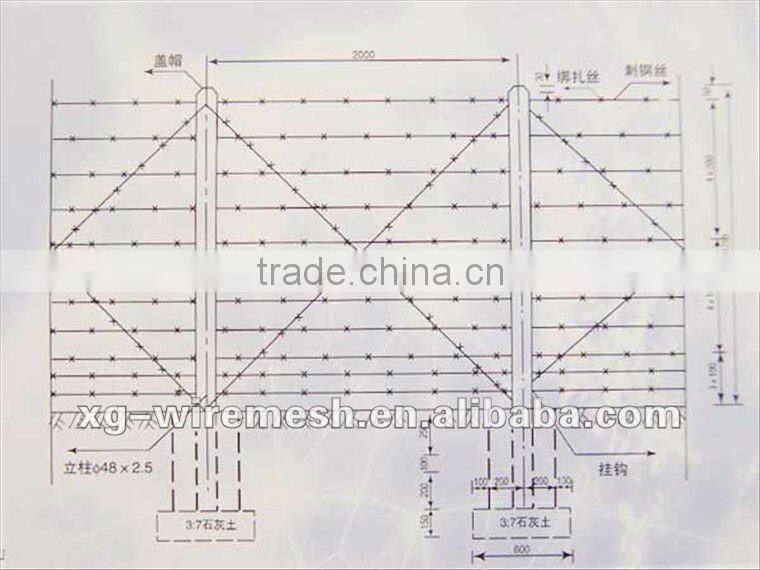

Uses: used for grass boundary, railway, highway isolation protection.
Press s classification: single screw, double twisting and traditional s law

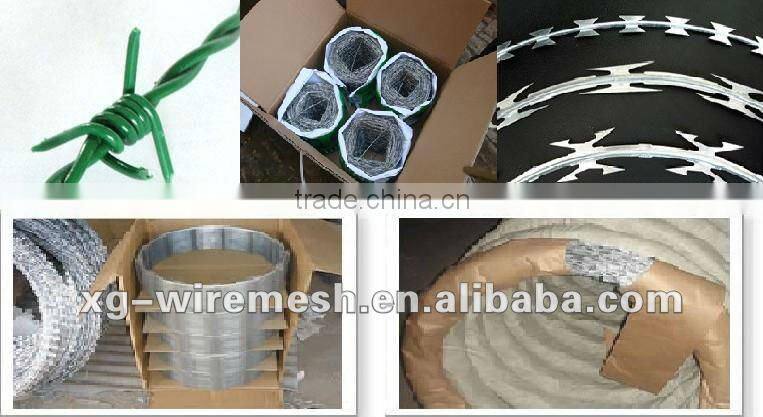

According to the category of the surface treatment: galvanized barbed wire, barbed wire, plastic packets of PVC aluminum alloy thorn rope. Do surface treatment is due to the enhanced corrosion strength.
PVC barbed wire for surface treatment is PVC package plastic processing, inside the barbed wire wire black wire, galvanized wire and iron wire
| B.W.G | thorn from 3" | thorn from 4" | thorn from 5" | thorn from 6" |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |

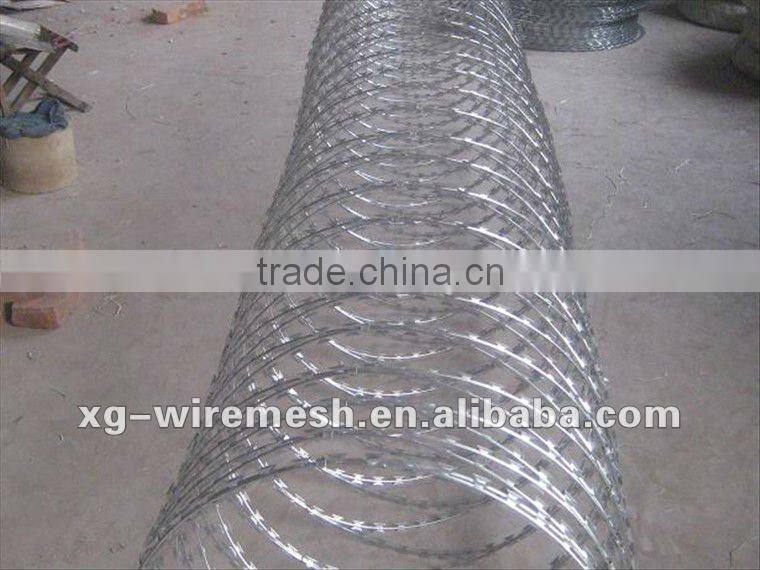

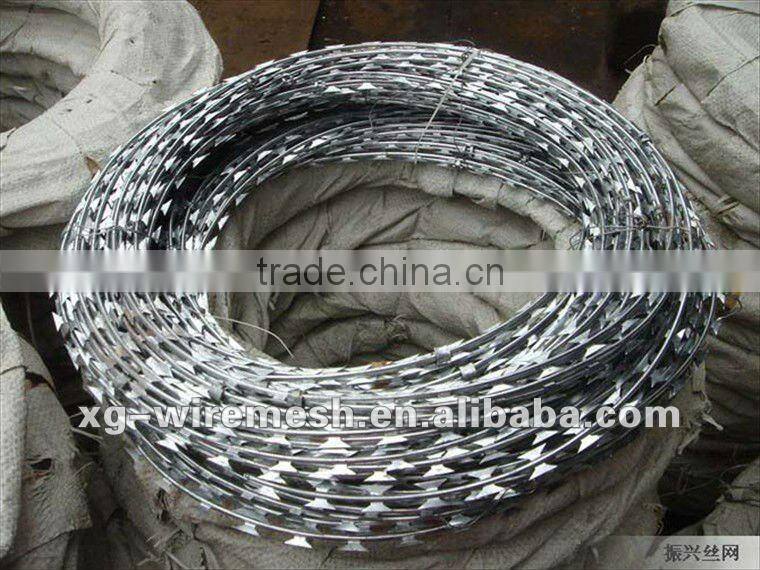

Razor barbed wire

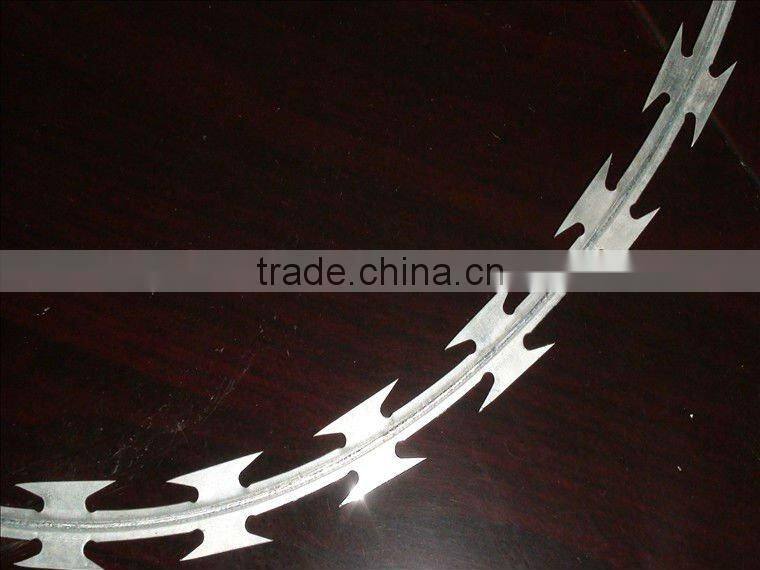

Razor barbed wire, also known as razor barbed wire, blade gill nets, is a new type of protective net. Razor barbed wire has the advantages of beautiful appearance, economical and practical, the prevention effect is good, Shi
The convenience and other outstanding features, present, blade barbed wire has been widely used in many countries in the industrial and mining enterprises, garden Residence, border posts, military field, prisons, detention, government buildings and other national security facilities

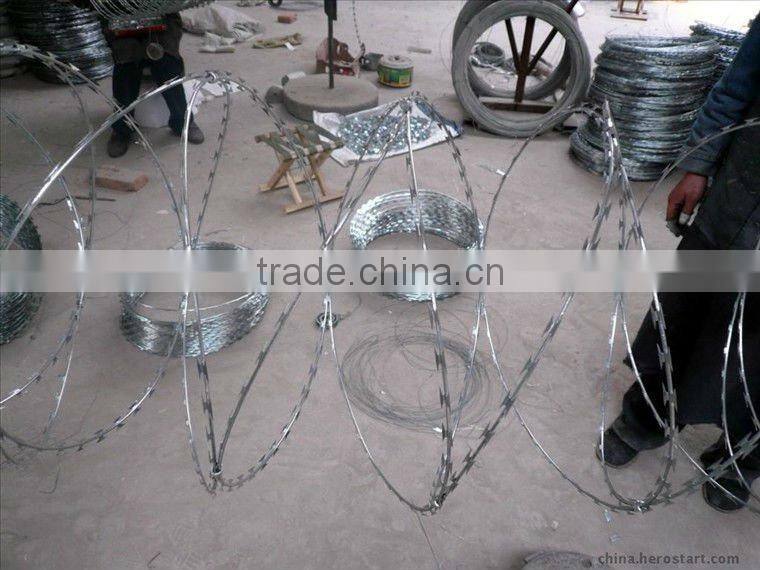

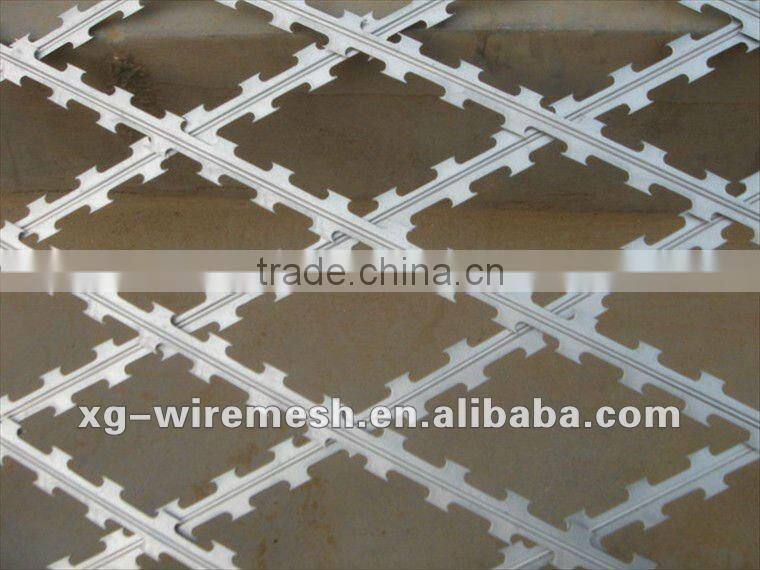

Blade thorn rope according to the installation method can be divided into: ( snake belly type ) spiral blade barbed wire, straight razor barbed wire, flat blade barbed wire, blade barbed wire welding net. Blade thorn rope roughly divided into spiral type, straight type, spiral cross type three forms.

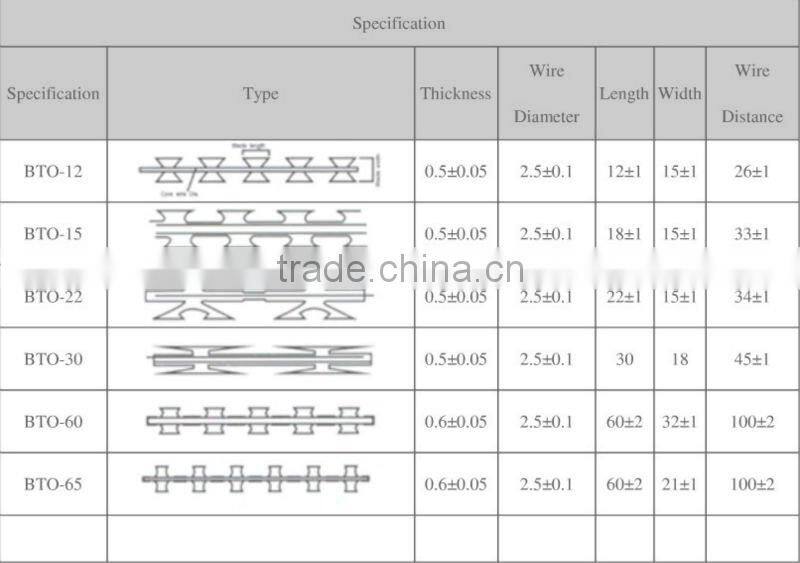

Specifications |
Shape |
Blade thickness |
diameter | Tool length |
Blade width |
Tool room |

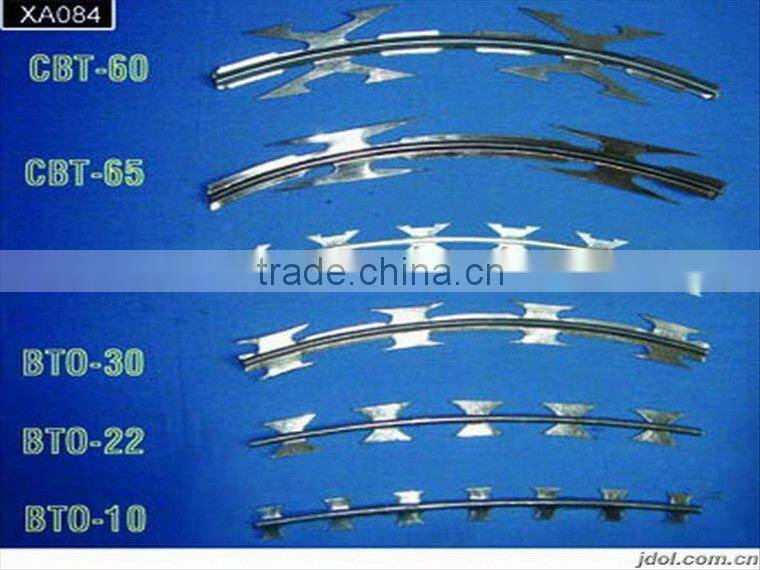

| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 13±1 | 26±1 | |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
|
Blade size | ||||
Outside diameter |
Cycle number |
length of coverage | Mode of production |
Remarks |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Hebei Anping XiangGuang Metal Net Co.,Ltd. founded in 1990, is a professional production and sales company of stainless steel mesh screens and all kinds of metal products. Now our company has 80 sets of the production and testing equipment to produce stainless steel meshes, packing netting, dutch weave netting, Crimped wire meshes, lead screens, hexagonal wire meshes, copper netting, nickel netting, with net oil, mining screens, etc.
