Specifications
1.high quality and mature technology flat silk screen printing machine2.Brand assurance
3.Stable performance/ high accuracy
1. Application Scope:

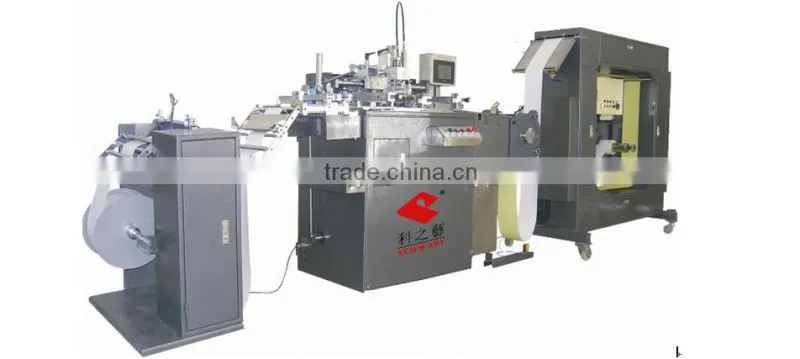

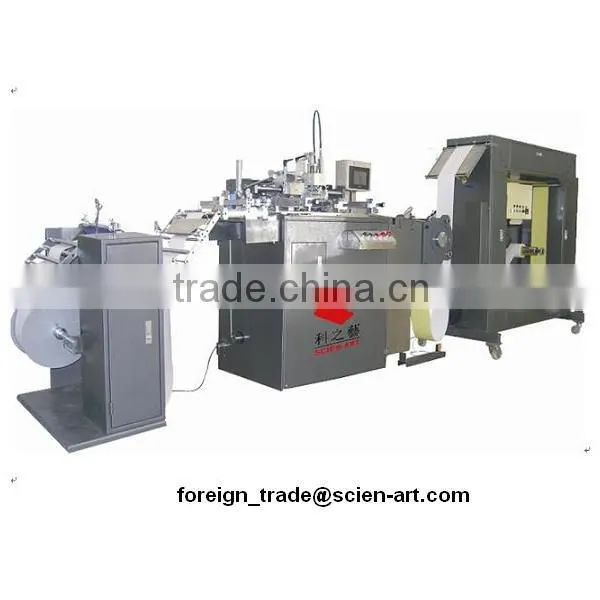

The machine is applicable to continuous printing, drying and take-up for rolls of PVC, OPP, polyester, self-adhesive paper and heat transfer paper.Mainly used in flexible circuit boards, electronic membrane switch , packaging and printing industries.
2. Characteristics:
Adopt the latest computer numerical control YASKAWA servomotor for feeding;
Pneumatic drive is advantageous in many aspects, furnished with advanced pneumatic parts;
Photoelectric control for printing positions at four sides;
Featured by high registering accuracy, stable feeding, auto counting and warning, convenient adjustment and compact structure.
3. technical parameters:
Model |
YKP-3201 |
Printing speed(times/min) |
10~40 |
Max putting diameter(mm) |
450 |
Max web width(mm) |
320 |
Max printing width(mm) |
300 |
Max printing length(mm) |
320 |
Localization aeeuracy(mm) |
±0.15 |
Main motor power(kw) |
1.2 |
Oven power(kw) |
4.1 |
Atmospheric pressure(kg/cm2) |
4.5~6 |
Main machine’s size(mm) L×W×H |
2400×950×1500 |
Oven’s size (mm) L×W×H |
3820×1650×1800 |
Weight (kg) |
1100 |
|
|
TIPS:We can manufacture according to customer’s requirements
