Hand Expansion Reamer DIN859 high speed steel
Negotiable
/ Piece
50 Pieces(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | STC | |
| Model Number | 4mm-20mm | Material | HSS | |
| Type | Other, Hand Reamer, Drilling Tool |
Product Description

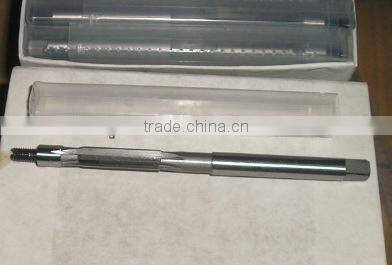

HSS expansion hand reamer
Straight flute,Din859 FORM A,H7
Spiral flute hand expansion reamer available.
American standard hand expansion reamer available.
Expansion reamer for machine use on request.

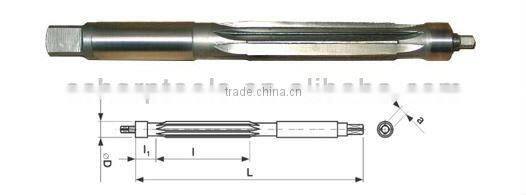

Ø D | Max | L | l | l1 | a | flute |
8,0 | +0,16 | 115 | 43 | 15 | 6,3 | 6 |
9,0 | +0,16 | 124 | 47 | 15 | 7,1 | 6 |
10,0 | +0,16 | 133 | 51 | 15 | 8,0 | 6 |
12,0 | +0,20 | 152 | 56 | 20 | 10,0 | 8 |
16,0 | +0,20 | 175 | 62 | 25 | 12,5 | 8 |
18,0 | +0,20 | 188 | 68 | 25 | 14,0 | 8 |
19,0 | +0,25 | 188 | 68 | 25 | 14,0 | 8 |
20,0 | +0,25 | 201 | 75 | 25 | 16,0 | 8 |
25,0 | +0,25 | 231 | 85 | 30 | 20,0 | 8 |
26,0 | +0,25 | 231 | 85 | 30 | 20,0 | 10 |
28,0 | +0,25 | 247 | 94 | 30 | 22,4 | 10 |
30,0 | +0,25 | 247 | 94 | 30 | 22,4 | 10 |
32,0 | +0,30 | 265 | 98 | 35 | 25,0 | 10 |
34,0 | +0,30 | 284 | 107 | 35 | 28,0 | 10 |
35,0 | +0,30 | 284 | 107 | 35 | 28,0 | 10 |
36,0 | +0,30 | 284 | 107 | 35 | 28,0 | 10 |
38,0 | +0,30 | 305 | 112 | 40 | 31,5 | 10 |
40,0 | +0,30 | 305 | 112 | 40 | 31,5 | 10 |
42,0 | +0,30 | 305 | 112 | 40 | 31,5 | 12 |
44,0 | +0,30 | 326 | 123 | 40 | 35,5 | 12 |
45,0 | +0,30 | 326 | 123 | 40 | 35,5 | 12 |
46,0 | +0,30 | 326 | 123 | 40 | 35,5 | 12 |
48,0 | +0,30 | 347 | 134 | 40 | 40,0 | 12 |
50,0 | +0,30 | 347 | 134 | 40 | 40,0 | 12 |
