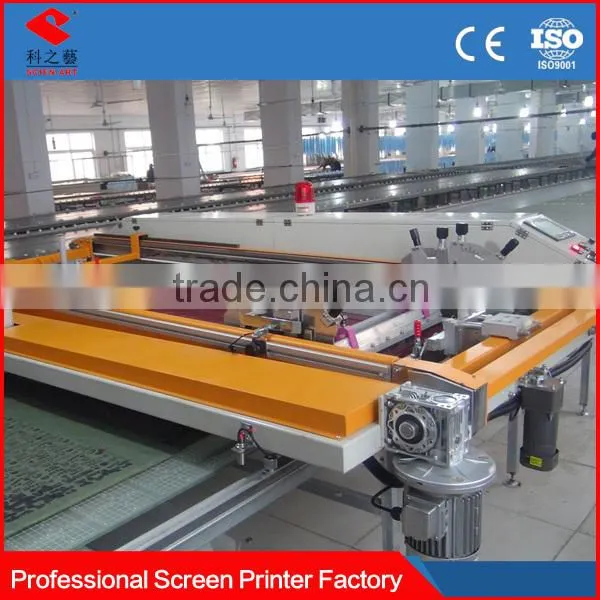

Y customized automatic textile screen printing machine

Specifications

automatic textile screen printing machine:
1. famous brand in China
2. over 17 years experience
3. high quality raw material

Y customized automatic textile screen printing machine:

TIPS:

1. this machine is customized according to customers’ products and Factory size. The length and the number of printing lines all based on these informations. pls advise the size informations of your products and factory.
2. single color with each printing head. Can print multicolors very high accuracy.
3. if have more than 3 printing lines can Match with 2 or more printing heads for this machine.





A,       Range of use:

It’s widely used in printing T-shirt, fabric, textile ,Shoes material, roll colth, leather, PET hot transfer paper,Ribbon ,glass water transfer paper for ceramic, all kinds of TPU,PVC,PET film, and thick material and so on.



B,  Function characteristics:

1. Electrical and mechanical parts andAccessories all are import material, high quality and long using life.
2. printing area can reach 40cm to 2 m. speed 6-12 times/min
3. overprinting accuracy:+/-0.05mm
4. less workers,High efficiency. Save cost for each products.
5. the table all made by high quality Toughened glass ,print smoothly, Uniform, clearly.
6. the angle, pression, printing speed of squeegee blade can be adjusted.
7. the printing angle can be adjusted, and can set Multi printing.
8. it’s very convenient and quick to change the frame, high accuracy when print multi-color.Patent of Three point positioning.
9. Equipped with cover ink blade, change frame system and wash the frame quickly.

10.controlled by micro-computer touch screen. Set,Single row printing, double row printing, double line printing with 2 printing head, 4 printing line with 4 printing head. And the distance of interval can be adjusted.

11.equipped with automatic location system, controlled by a high accuracy electronic eye, can reach the right place each time, can change the moving length according to your products’ printing size.

12.the printing size can customized L*W=(40cm to 2m)*(40cm to 1.6m). any size.

13.power:Servo motor:0.75kw,printing motor:0.75kw;Location motor:90W;Lifting motor:370W



C, Schematic design:

The width and the length can be designed according to the size of your products and factory.

Size:

for example:the printing size is 1200mm(the material can reach 1300mm)

each printing line size :L*W*H=XX*1500mm*750mm





shipping:

within 30 working days. it's free in shenzhen. if need to shipping to another country or province need customer pay the cost. the price basing on the distance.



warranty time: 1 year all for free

delivery time: 30 working days after customer place an order(30% advance)

payment term: 30% advance for the order, 70% before deliver the machine, by T/T



we can do samples for customer for free, if you sent the material and ink to our company.

and the machine is free to repair within one year. after one year,customer should pay for it.
