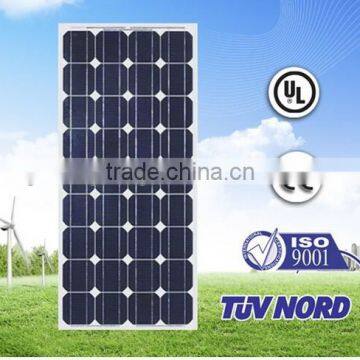

2014 Best-Selling Solar Panel In China , 90W Mono Solar Cells
- 10000000 Watt / Watts per Month
- QingDao
- T/T
You May Like
-
85W Mono / Cells / SolarPanel / Solar Energy Systems
-
Monocrystalline Modules 170W-200W
-
1482mm*992mm*45mm , 220W Monocrystalline Solar panels with ISO9001/14001/CE/TUV/UL
-
170W Monocrystalline soalr cells with High Cells Efficiency
-
Monocrystalline Modules 220W-250W, 220-225-230-235-240-245-250 Soalr Power Panels
-
230W-235W-240W-245W-250W-255W-260W Monocrystalline Soalr Panels
Product Details
Place of Origin | Shandong, China | Brand Name | JNFT | |
Model Number | Mono 125*125 cell ,36pcs . Power 90Wp | Material | Monocrystalline Silicon | |
Size | 1196*539*30mm | Number of Cells | 36 | |
Max. Power | 90W |
Product Description
Safty and Quality:
1.Rigorous quality control meeting the highest international standards
2.High-transmissivity low-iron tempered glass, strong aluminium frame
3.Using UV-resistant silicon
4.ISO 9001:2008 and ISO 14001:2004 TUV
5.IEC61215, IEC61730, Safety Class conformity to CE
6, High-transmissivity low-iron tempered glass, strong aluminium frame
Using UV-resistant silicon
Warranty:
5 years for product defects in materials and workmanship
12 years for 90% of warranted minimum power
25 years for 80% of warranted minimum power
90W Monocrystalline Solar Panels:
TYPICAL ELECTRICAL CHARACTERISTICS:
Maximum power(Pmax) | 90W |
Voltage at Pmax(Vmp) | 17.6V |
Current at Pmax(Imp) | 5.11A |
Open-Circuit Voltage(Voc) | 21.2V |
Short-Circuit Current(Isc) | 5.87A |
Maximum System Voltage | 600V |
Maximum Series Fuse Rating | 10A |
Size(mm) | 1196*539*30 |
Weight(Kgs) | 8.8 |
Solar Cells | Mono crystalline cells |
Front Cover | 3.2mm thick low iron temperature glass |
Back Cover | TPT(Tediar-PET-Tediar) |
Encapsulant | EVA(Ethylene vinyl acetate) |
Frame | Anodized aluminum alloy, double wall |
Junction Box | IP65 rated, TUV certification |
Max Load | Certified to 5400Pa |
Nominal Operating Cell Temperature | 45±2℃ |
Temperature Coefficient of Pmax | -0.47% / ℃ |
Temperature Coefficient of Voc | -0.34% / ℃ |
Temperature Coefficient of Isc | 0.06% / ℃ |
Operating Temperature | -40℃ to +85℃ |
STC*(Standard Testing Conditions) : Irradiance 1000W/sq.m.Module Temperature 25℃. Air Mass 1.5
Packaging & Shipping
Packing :carton box and outer with pallet.
Normally packing:
Packaging Configuration :2 pcs./ box
Quantity/Pallet : 48 pcs./ pallet
Loading Capacity :624 pcs./ 40ft(H)
and can also according to your requirements.
Payment term:
10 to 15 days after received 30%--70% deposit or LC
Shipping details:
It will takes 20-50 days for the order to the worldwide
Jinan Fangteng International Trade Co., Ltd is industrial company with an integrated business of design, production and sales.
Founded in 2012, the company is a professional international import and export trade company, carrying on joint ventures, production and re-exports etc., mainly engaged in medical equipment, green home, environment friendly fuiniture production and sales of energy products.
With the increasing scale of the company, our customers have been in many parts of the world. We have got good faith both at home and abroad by customers with a good reputation, and done a lot of positive work in promoting economic and technological exchanges with other countries.
The company has always adhered to the "people-oriented" philosophy, respected the parties we have contacted, including customers, employees, partners, suppliers and community groups. With good faith as the purpose of the company's development, we will continue to pursue improvement, innovation and excellence in order to achieve double win with customers.
Workshop:
Certificate:
1.We are still proud to be oneofthecompany in China who could supply free quality report from Third party quality control company to customer before their cargo shipping out.Please kindly find quality report we had done for our customer.Our customer could depend on us our quality about their money safety.
2.12 months (calculated from the manufacturing date from Audo) for all rattan furniture items.
3. We had one professional sales team,who aregood at English.Our sales team who could reply customer requirement in time and work time adjustment according customer needs.Both of sales had 3 years experience in outdoor furniture exporting,they could supply professional instructions for import and purchase needs.Believe customer will enjoy every minutes to work with us.
4.We have a set of smooth operation process for the customer complaints. We will solve it in as fast as possible when we get the picture, problem description, series number for the item and order number for complaints. In our promised limited warranty date, spare parts free, we will charge you parts cost if the complaint item out our limited warranty date
Why Choose Us:
1. Experienced Polycrystalline Solar panel supplier
2. Strictly select meterial source of Polycrystalline Solar panel
3. Strict and complete QC system
4. Considerate service
5. Visionary leadership and vigor
6. advanced corporate culture
7. advanced production equipment
8. strong market marketing ability
9. staff overall quality high with a large number of high quality talents
11. management mechanism for scientific and reasonable
12. high efficiency of management
13. Professional manufacturer on plywood,veneer,lvl
14. Perfect quality control of Environment-friendly Poplar Plywood
15. Advanced production equipment and facilities
16. Professional team on producing, trading and shipping
Picture:
.
