Specifications
2.Single lamination or double lamination
3.Non-woven fabric and OPP film lamination.

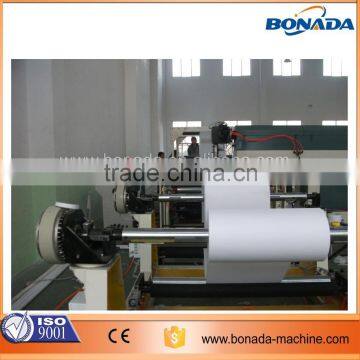

SJFM800/1800 Extrusion Lamination Machine
Main features:
Extrusion Laminating Machine adopts the casting technology, laminate the two layers materials together. made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer, three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.
Application range:
Paper-plastic complex; Plastic-plastic complex; Aluminum-plastic complex; Paper-aluminumplastic complex; Non-woven fabric and BOPP film lamination.
Producing methods:
Single shower membrane comples ·Tree-level (sandwich) complex·Multi-level complex (with seven-level complex at one time).
Main Technical Variables:
ITEMTYPE |
SJFM-800 |
SJFM-1100 |
SJFM-1300 |
SJFM-1600 |
SJFM-1800 |
length of mold lip |
900mm |
1200mm |
1400mm |
1800mm |
2000mm |
Width of finshed product |
400-700mm |
500-1000mm |
600-1250mm |
800-1500mm |
900-1700mm |
Max compounding speed |
100/150m/min |
80-110m/min |
80-110m/min |
60-110m/min |
60-110m/min |
Width of shower film |
0.01-0.1mm |
0.01-0.03mm |
0.01-0.03mm |
0.01-0.03mm |
0.01-0.03mm |
L/D ratio for screw |
32:1 |
32:1 |
32:1 |
32: |
32:1 |
Max.diameter for roll unwinding add rewinding |
ø1200mm |
ø1200mm |
ø1200mm |
ø1200mm |
ø1200mm |
Overall size |
9600×6000× 3200mm |
9600×7000× 3200mm |
9600×8000× 3200mm |
9600×9000× 3200mm |
9600×12000× 3200mm |
Power |
60kw |
70kw |
80kw |
100kw |
130kw |
Compounding/mirror cool roll |
ø510mm |
ø510mm |
ø510mm |
ø510mm |
ø510mm |
Applicable for base material |
BOPP BOPET BOPA CPP CPE, Non-woven fabric, Aluminium foil etc. |
||||
