Help Center2002 Corona Treatment For Extruded Film
Related Products
2001 Digital Type Corona Treater
Main Technical Parameter:
|
Type |
2002 |
|
|
Power supply |
AC220V±10%/-15% |
Main frequency |
50 Hz ± 5 % |
Line speed |
30-80 mtr/minute |
Output frequency |
8-25 Khz |
Max.output power |
1.5 Kw |
Corona output |
a. Constant at same speed b. No influence of supply voltage |
Dynes level |
38-42Dynes/cm |
The max treated width |
650 mm |
Treated material |
PP,PE,PS etc plastic film metal film |
Aspact size |
50CM*31CM*24CM |
Net weight |
12KGS |
Environment temperature |
-10°C ~ +40°C |
Environment humidity |
20%~93% no condensation |
Application |
Film blowing machine,printing machine ,laminating machine etc |
Corona treatment station |
Avalible as customer's requirements |
Features of Corona Treatment Machine
1. It adopts high voltage fast-switching power transistor as power conversion device
2. High efficiency, high operating frequency.
3. Power output is continuous adjustable.
4. Electronic protection and low speed automatic off.
5. Server in the film production, printing, gelatinize, and complex unit.
6.Uniform treatment through out the web width
Corona Treatment Machine Benifits
Easy to install
Accurate output power
Small, compact and economical design
Low maintenance
User friendly
Maximum operator saftey
Optional value added features
Pneumatic operated treater station.
Zero speed switch to protect silicoan sleeve.
Ozone extraction system efficiently remove ozone and cool the electrode.
Steel corona station frame with painting anti-rust.

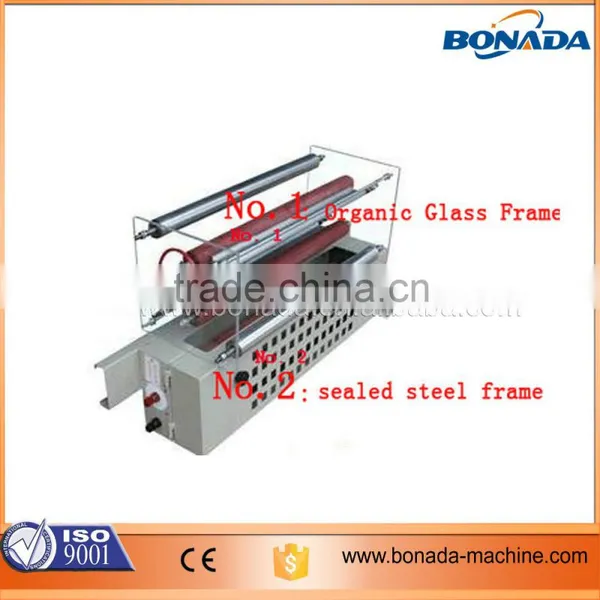

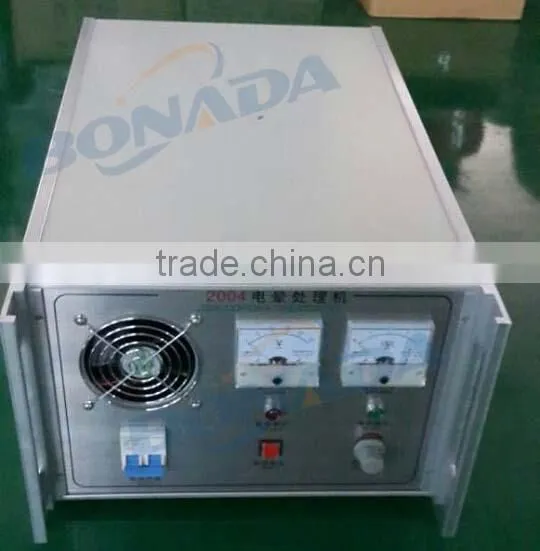

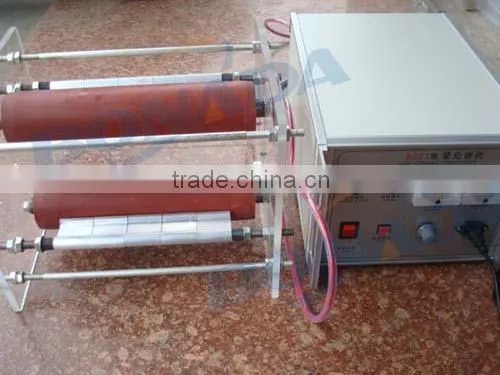

Details parts pictures
