Specifications
1.CE ISO 9001:2008 & TUV certified2.4-dehullers design vertical
3.equipped with frequency inverter and patented product
Sunflower Seeds Dehulling & Separating Equipment TFKH1500
[Functions and Features]
sunflower seeds dehulling & separating equipment Model TFKH1500 is a patented product of Qiaopai company and is the independent intellectual property of Qiaopai company. It contains 7 national patents. This equipment can dehull sunflower seeds, separate shells from kernels and re-separate your products. It adopts exclusive design: multiple dehullers, vertical set-up with wide separating screens to make the dehulling and separating more efficient and meanwhile save more space.it features low loss of materials and easy maintenance.
Vertical dehullers set-up You can achieve ideal separating Wide-screen design increase
design save space result by adjusting angle of screens the separation capacity
Pneumatic device for back-flowing materials Dehullers adopt all-steel main parts, the
makes the un-dehulled sunflower inshell flow back impeller adopts 99% alumina porcelain
to dehullers automatically. improves the dehulling result and
gives longer service time.
Adopt shells-discharger to make the sunflower Perforated screen plate make seed-kernels
shells collecting works easier and meanwhile separation works easier, which made from
reduce the dust accumulation greatly during punching works of premium quality cold
process. rolled sheet,durable service.
All the electric works of this equipment are central Vibration source of the equipment adopts
controlled by electric control cabinet, interface is vibratory motors design,features easy and
easy operation. The application of frequency quick installation no foundation works requires
technique in dehullers can adjust the frequency
rate anytime according to the state of materials.
[ Component]

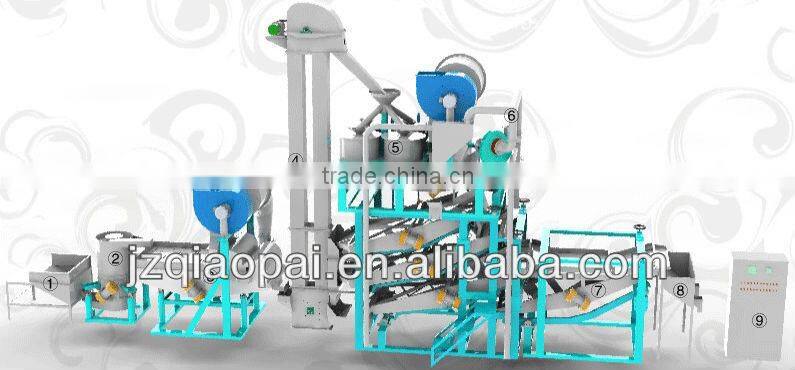

It consists of input hopper(1), spiral elevator (2), multi-functional cleaner (3),bucket elevator (4), 4-dehullers (5), pneumatic device for back-flowing materials (6), reseparator (7), kernels collector (8), electric control cabinet (9).
[Process]
[Technical parameters]
Power: 16.47kw(380v)
Input capacity: 1.0-1.5mt/hour(varies with raw materials)
% of whole kerenls:90% minimum
(kernels that are less than 1/2 whole kernels are brokens)
% of inshell in final kernels: 2-5%
Space occupied: 11.3m×3.3m
Height:5.5m
Weight:7.0mt
