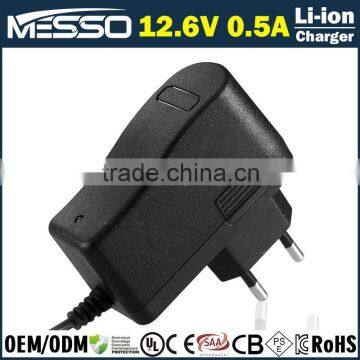

12.6V 500mA Lithium Battery Charger 3s 10.8V Li-ion Battery Charger 12.6V Lipo Charger

12.6V 500mA Lithium Battery Charger 3s 10.8V Li-ion Battery Charger 12.6V Lipo Charger thumbnail-1
12.6V 500mA Lithium Battery Charger 3s 10.8V Li-ion Battery Charger 12.6V Lipo Charger photo-1
US$ 1 - 2.9 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
MESSO
Model Number:
MSO1260500C
Use:
Standard Battery
Contact Supplier Request Quote Chat Now
Shenzhen Messo Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MESSO
Model Number MSO1260500C
Use Standard Battery
Place of Origin Guangdong, China



ITEM NAME 12.6V 500mA Lithium Battery Charger
Features:

. 6.3W Lithium Battery Charger
. Worldwide AC Input Voltage 100-240V
. Output Voltage Range: 12.6V
. Output Current Range: 500mA
. Red/Green Led Light Show
. Short-Circuit/Overvoltage/Overcurrent Protection
. Meet CE RoHS Safety Standard
. Warranty: 1 years
INPUT
Input Voltage 85-264VAC
Input Frequency 47-60Hz
Input Current 0.3A Max at 110VAC
Inrush Current 40A Max at 230VAC
Earth Leakage Current Class II
No Load Input Power 0.3W
OUTPUT
Output Voltage 12.6V 500mA
Start Up Delay 1.3s Max
Start Up Rise Time 15ms Typical
Hold Up Time 10ms Min at full load 115VAC
Line Regulation +/-1% Max
Load Regulation +/-5% Max
Ripple Noise 1% Max
Overvoltage Protection 150% Of Nominal Output
Overcurrent Protection 150% Of Nominal Output
Short Circuit Protection Trip And Restart
GENERAL
Isolation 3000VAC Input To Output
MTBF 50KHrs To MIL-HDBK-217F At 25 OC
Operation Temperature -10 To + 70 OC
Cooling Natural Convection
Operating Humidity 5% To 90% RH,Non-Condensing
Storage Temperature -40 To +90 OC
Shock 30g,Half Sine,6 Axes
Vibration 5-50Hz,Accelerated 7.35m/s
Altitude 3000m
EMC & SAFETY
Emissions EN55022
Harmonic Currents EN61000-3-2,Class A
Voltage Flicker EN61000-3-3
ESD Immunity EN61000-4-2
Radiated Immunity EN61000-4-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Magnetic Field EN61000-4-8
Dips Interruptions EN61000-4-11
Dimensions & Weight
Dimensions 2.95 in x 0.98 in x 1.16 in ( 7.5cm x 2.5cm x 7.2cm )
Box Size / PCS 4.72 in x 2.76 in x 2.09 in (12cm x 7cm x 5.3cm)
Carton Size / CTN 19.69 in x 15.16 in x 11.22 in (50cm x 38.5cm x 28.5cm)
Package BOX+CARTON 100PCS/CTN
Packing List
1 x Paper Box
1 x Adapter
Terms of payment
1) T/T: Internet bank, telegraphic transfer
2) Western Union
3) Paypal
4) Ali Escow
5) Irrevocable L/C draft at sight
Shipping Methods
Express/Air transportation: DHL, FEDEX,USP, EMS, TNT, ARAMES / Sea Transportation / Land Transportation
