Home > Electrical & Electronics > Electric Motor > AC Motor > ac Shaded Pole Motor

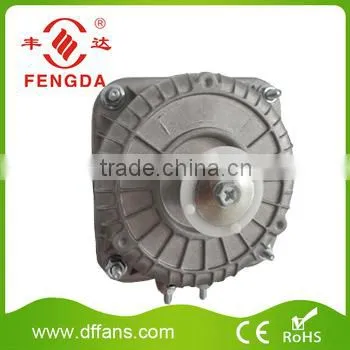

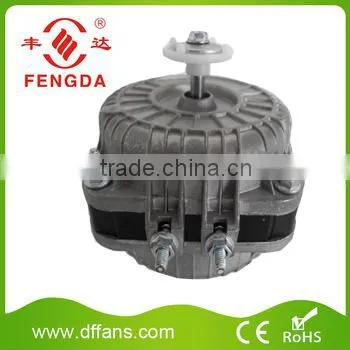

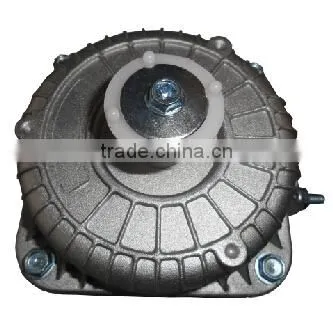

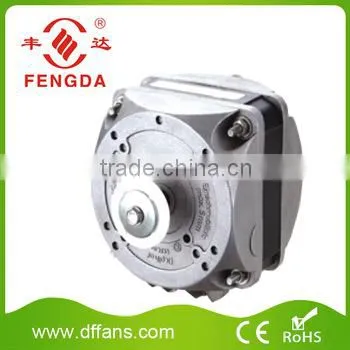

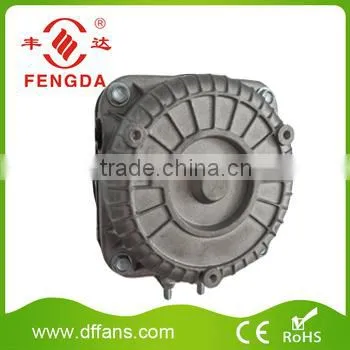

ac Shaded Pole Motor

Name: ac Shaded Pole Motor
Brand: FENGDA
SKU: 133102875
Availability: InStock

US$ 15 - 96 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Brand Name:

FENGDA

Model Number:

YZF5

Type:

Asynchronous Motor

Contact Supplier Request Quote Chat Now

Taizhou Defeng Mechanical And Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name FENGDA

Model Number YZF5

Type Asynchronous Motor

Frequency 50/60HZ

Output Power 30w

Protect Feature Totally Enclosed

Phase Single-phase

Certification CCC, CE, ROHS, UL, VDE

AC Voltage 208-230 / 240 V

Place of Origin Zhejiang, China

Efficiency IE 2

centrifugal exhaust fan by FENGDA ventilation centrifugal fans blowers

Product Description

1.PRODUCT OVERVIEW

(1) YZ series motors are shaded pole motors with single-phrase and four-poles, and running at the rated voltage/frequency of 220-240V, 50/60HZ or 110-120V, 60HZ.

(2) Shade pole motor are widely applied to radiators, evaporators,condensing unit,ice machine and other refridgration equipments.

(3) Their output power is from 5W to 34W, which can be adjusted according to the stack length.

(4) Motors of output power below 10W have impedance protection, and motors of output power above 10W have thermal protectors whose cut-off temperature is 135oC±5oC.

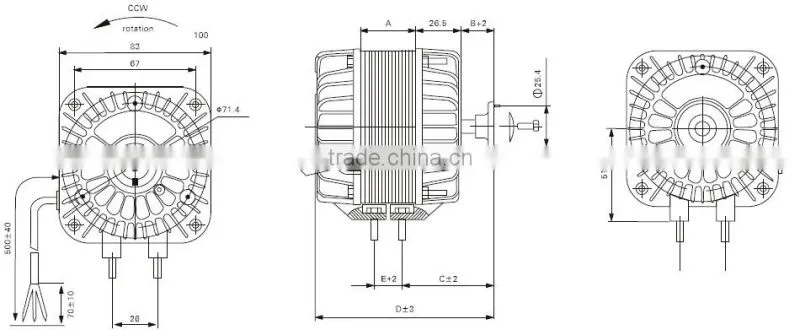

2. shape and the size of installation

3. performance parameters

Model	Voltage V	Frequency Hz	Input Power W	Output Power W	Current A	Speed RPM	Fan Blade mm	A mm	B mm	C mm	D mm	E mm
YZF5	220/240	50/60	30	5	0.20	1300/1350	200	13	13	44	79	/
YZF5	110/115	50/60	30	5	0.40	1300/1350	200	13	13	44	79	/
YZF7	220/240	50/60	38	7	0.27	1300/1350	230	19	13	44	85	/
YZF7	110/115	50/60	38	7	0.54	1300/1350	230	19	13	44	85	/
YZF10	220/240	50/60	42	10	0.30	1300/1350	230	19	13	44	85	/
YZF10	110/115	50/60	42	10	0.60	1300/1350	230	19	13	44	85	/
YZF16	220/240	50/60	58	16	0.40	1300/1350	250	25	14	45	92	/
YZF16	110/115	50/60	58	16	0.80	1300/1350	250	25	14	45	92	/
YZF18	220/240	50/60	64	18	0.43	1300/1350	250	30	17	48	100	21
YZF18	110/115	50/60	64	18	0.86	1300/1350	250	30	17	48	100	21
YZF20	220/240	50/60	65	20	0.47	1300/1350	250	30	17	48	100	21
YZF20	110/115	50/60	65	20	0.94	1300/1350	250	30	17	48	100	21
YZF25	220/240	50/60	100	25	0.70	1300/1350	300	40	18	49	111	31
YZF25	110/115	50/60	100	25	0.40	1300/1350	300	40	18	49	111	31
YZF34	220/240	50/60	120	34	0.90	1300/1350	300	45	22	53	120	36
YZF34	110/115	50/60	120	34	1.8	1300/1350	300	45	22	53	120	36

Company Information

FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.

We professionally manufacture various fans and motors,which widely used in ventilation,air condition,cooling

and heating industry.

We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.

Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,being

the greast contribution",which establish the famous brand of "Fengda".We have gotten CE certificates and ISO9001

Quality Management System Certification.And our products are exporting to Europe and America,Middle East,Russia etc.

Exhibition

Our Services

1.Warranty:1 year warranty for all products.

2.Products Quality:100% products inspection before delivery.

3.Just in time delivery: Normally,lead time is 30 days.

4.Customized Service: As we have our own molding department,customized service can be provided.

5.Prompt customers services:E-mail will be replied in 24 hours.

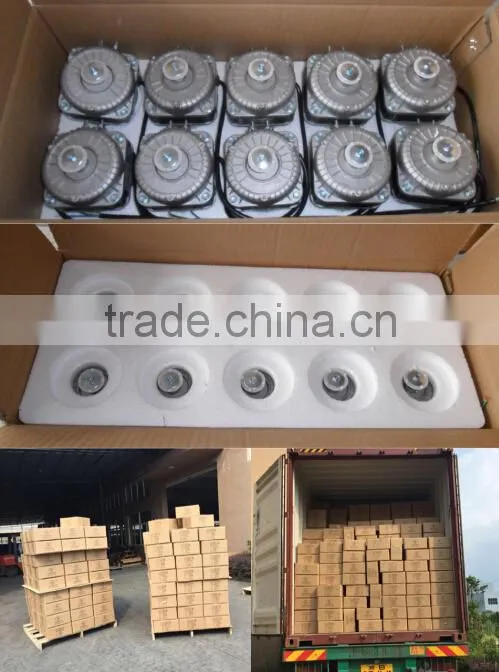

Packaging & Shipping

one piece in single carton
