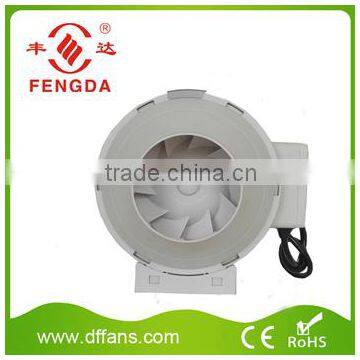

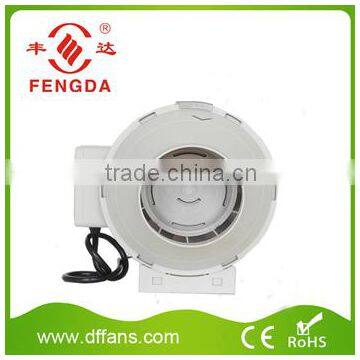

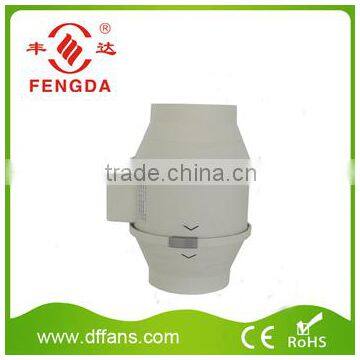

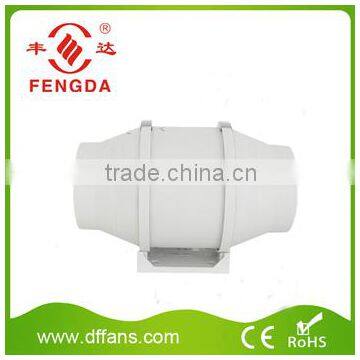

Household Mixed Flow Plastic Inline Duct Fan
1.The Voltage: 110-120V,60Hz or 220-240V,50Hz, according to customers' requirement.
2. Fan Diameter: 100mm-200mm.
3.Speed: We have Two-speed Switch,Three-speed Switch and Stepless Speed Switch.
4. Color: White and Black.
5. Operating temperture rage:-20℃~60℃
6.Long life with low energy consumption
| Model | Voltage(V) | Frequency(Hz) | Current(A) | Power(W) | Speed(RPM) | Air Flow(m3/h) | Pressure(Pa) | Noise(dB) |
| GDF100 | 220-240 | 50 | 0.12 | 26 | 2200 | 198 | 156 | 31 |
| GDF100 | 110-120 | 60 | 0.26 | 30 | 2500 | 220 | 160 | 31 |
| GDF125 | 220-240 | 50 | 0.14 | 33 | 2250 | 284 | 159 | 32 |
| GDF125 | 110-120 | 60 | 0.30 | 40 | 2500 | 310 | 165 | 32 |
| GDF150 | 220-240 | 50 | 0.26 | 60 | 2300 | 530 | 300 | 33 |
| GDF150 | 110-120 | 60 | 0.61 | 70 | 2500 | 580 | 350 | 33 |
| GDF200 | 220-240 | 50 | 0.40 | 130 | 2250 | 900 | 380 | 43 |
| GDF200 | 110-120 | 60 | 0.85 | 150 | 2500 | 1000 | 430 | 43 |

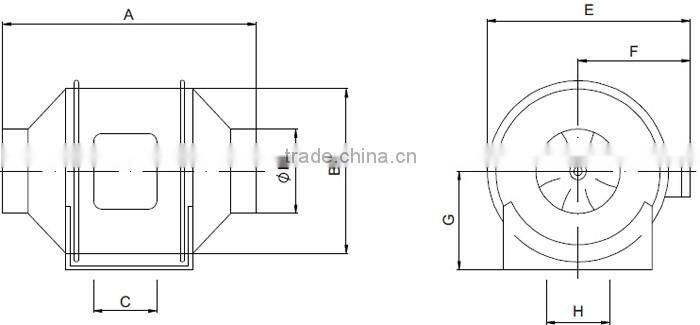

| Model | A | B | C | D | E | F | G | H |
| GDF100 | 295 | 170 | 80 | 96 | 204 | 111 | 103 | 60 |
| GDF125 | 295 | 170 | 80 | 122 | 204 | 111 | 103 | 60 |
| GDF150 | 295 | 194 | 80 | 148 | 230 | 126 | 122 | 60 |
| GDF200 | 307 | 203 | 100 | 197 | 240 | 138 | 138 | 75 |
Single packing in one carton
1. Warranty: 1 year warranty for all products.
2. Products Quality: 100% products inspection before delivery.
3. Just in time delivery: Normally, lead time is 30 days.
4. Customized Service: As we have our own molding department, customized service can be provided.
5. Prompt customers’ services: E-mail will be replied in 24 hours.
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs. We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally
R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.
1. Q: What information do you need to provide in order to get a question?
A: Generally,information about size, Air Flow, Voltage of required fans is needed in order to select a right fan for you and provide you a quotation.
2. Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should be have samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.
3. Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage quantities increase, please provide the information to our sales. We will provide you a further discount.
4. Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own production code. This code is able to track the production lifetime.
