Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > 12V 2.5A Power Adapter 30W Led Lighting Light Lamp Bulb Strip Flashlight Adapter 100-240V

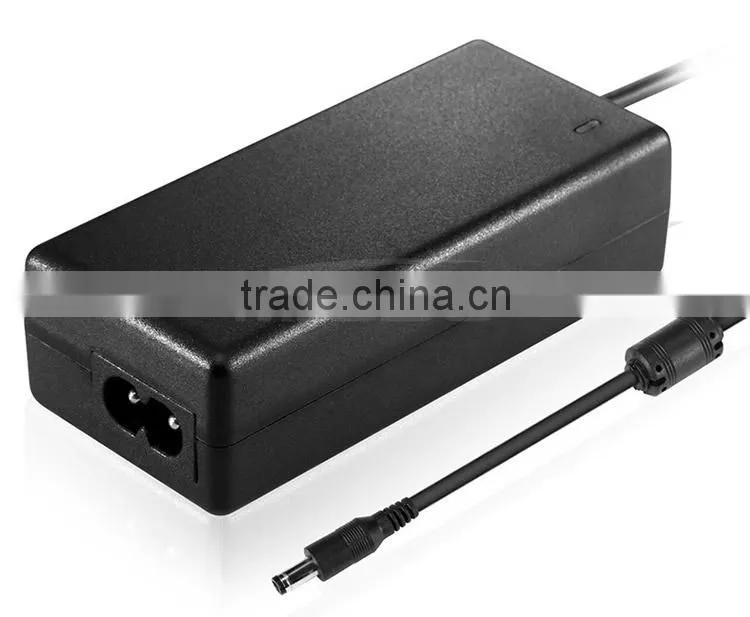

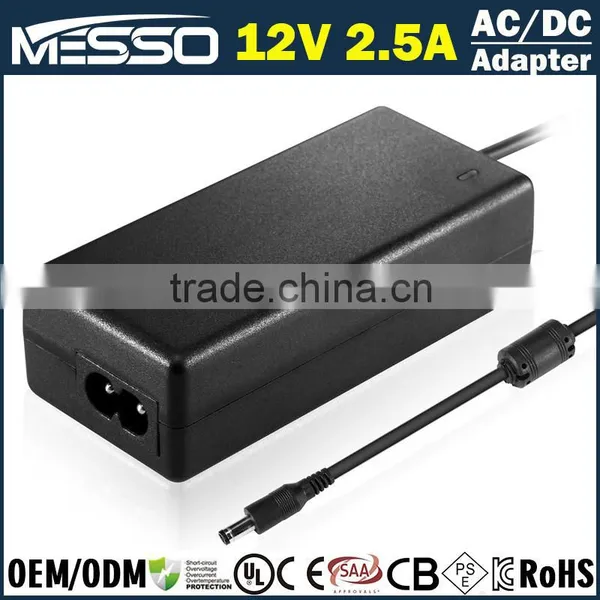

12V 2.5A Power Adapter 30W Led Lighting Light Lamp Bulb Strip Flashlight Adapter 100-240V

Name: 12V 2.5A Power Adapter 30W Led Lighting Light Lamp Bulb Strip Flashlight Adapter 100-240V
Brand: MESSO
SKU: 133102131
Availability: InStock

12V 2.5A Power Adapter 30W Led Lighting Light Lamp Bulb Strip Flashlight Adapter 100-240V thumbnail-1

12V 2.5A Power Adapter 30W Led Lighting Light Lamp Bulb Strip Flashlight Adapter 100-240V photo-1

US$ 1 - 5 MOQ: 400 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

MESSO

Model Number:

MSO1202500B

Contact Supplier Request Quote Chat Now

Shenzhen Messo Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name MESSO

Model Number MSO1202500B

Output Type DC

Connection Desktop

ITEM NAME	12V 2.5A AC DC ADATPER
Features: . 30W AC/DC ADAPTER . Worldwide AC Input Voltage 100-240V . Output Voltage Range: 12V . Output Current Range: 2.5A . Ripple and Noise: 1% Surge: 3KV . Short-Circuit/Overvoltage/Overcurrent Protection . Warranty: 2 years
INPUT
Input Voltage	85-264VAC
Input Frequency	47-60Hz
Input Current	1A Max at 110VAC
Inrush Current	40A Max at 230VAC
Earth Leakage Current	Class II
No Load Input Power	<0.3W
OUTPUT
Output Voltage	12V 2.5A
Start Up Delay	1.3s Max
Start Up Rise Time	15ms Typical
Hold Up Time	10ms Min at full load 115VAC
Line Regulation	+/-1% Max
Load Regulation	+/-5% Max
Ripple Noise	1% Max
Overvoltage Protection	150% Of Nominal Output
Overcurrent Protection	150% Of Nominal Output
Short Circuit Protection	Trip And Restart
GENERAL
Isolation	3000VAC Input To Output
MTBF	50KHrs To MIL-HDBK-217F At 25OC
Operation Temperature	-10 To + 70 OC
Cooling	Natural Convection
Operating Humidity	5% To 90% RH,Non-Condensing
Storage Temperature	-40 To +90 OC
Shock	30g,Half Sine,6 Axes
Vibration	5-50Hz,Accelerated 7.35m/s
Altitude	3000m
EMC & SAFETY
Emissions	EN55022
Harmonic Currents	EN61000-3-2,Class A
Voltage Flicker	EN61000-3-3
ESD Immunity	EN61000-4-2
Radiated Immunity	EN61000-4-3
EFT/Burst	EN61000-4-4
Surge	EN61000-4-5
Conducted Immunity	EN61000-4-6
Magnetic Field	EN61000-4-8
Dips Interruptions	EN61000-4-11
Dimensions & Weight
Dimensions	3.94 in x 1.58 in x 1.26 in ( 10cm x 4cm x 3.2cm )
Box Size / PCS	8.27 in x 3.94 in x 2.36 in ( 21cm x 10cm x 6cm)
Carton Size / CTN	17.32 in x 16.54 in x 12.60 in (44cm x 42cm x 32cm)
Package	BOX+CARTON 40PCS/CTN
Packing List
1 x Paper Box 1 x Adapter
Terms of payment
1) T/T: Internet bank, telegraphic transfer 2) Western Union 3) Paypal 4) Ali Escow 5) Irrevocable L/C draft at sight
Shipping Methods
Express/Air transportation: DHL, FEDEX,USP, EMS, TNT, ARAMES / Sea Transportation / Land Transportation
