Home > Products > AC/DC Adapter > 15V 2A AC DC Adapter 100-240V 50-60Hz AC Adapter 15V 2A Swithcing Power Supply 15V 2A AC Adapter

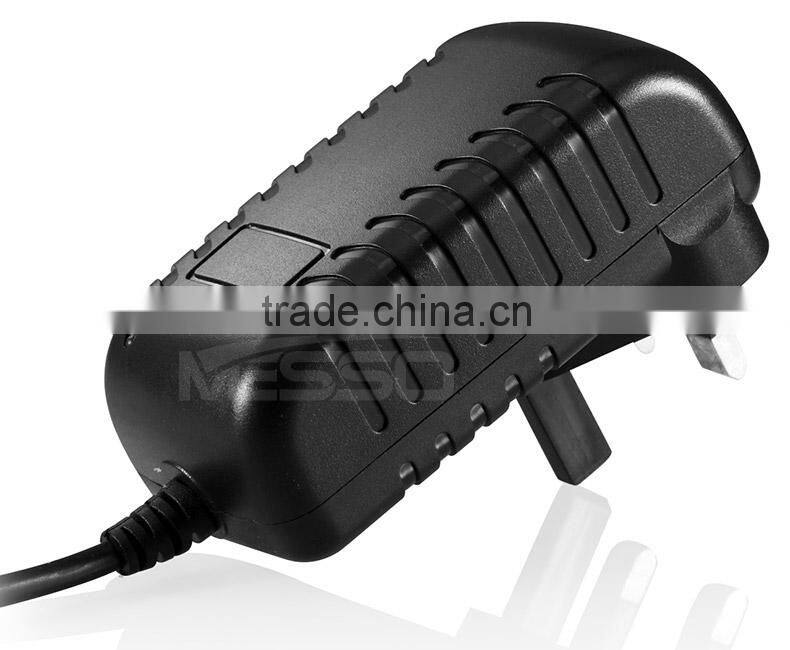

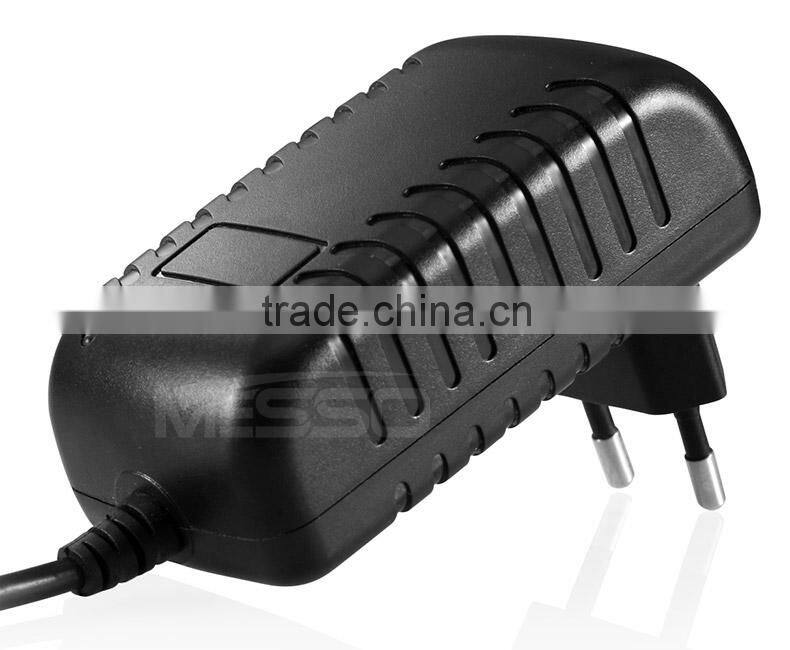

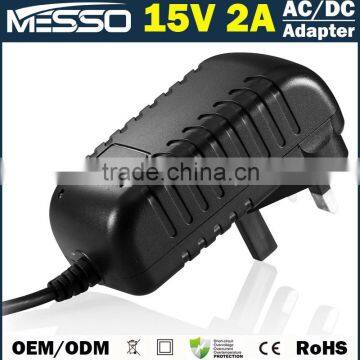

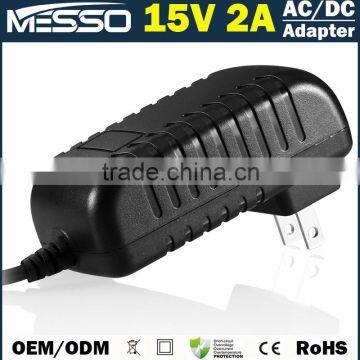

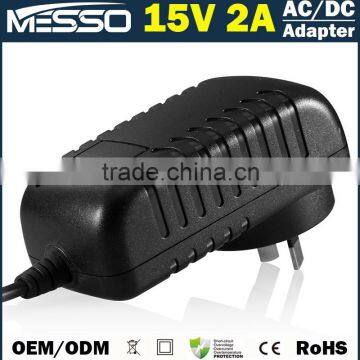

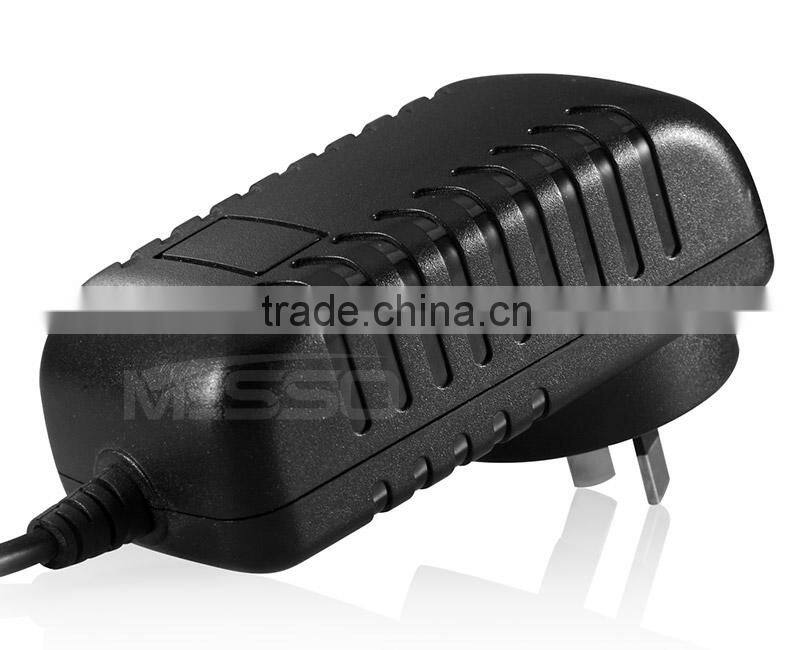

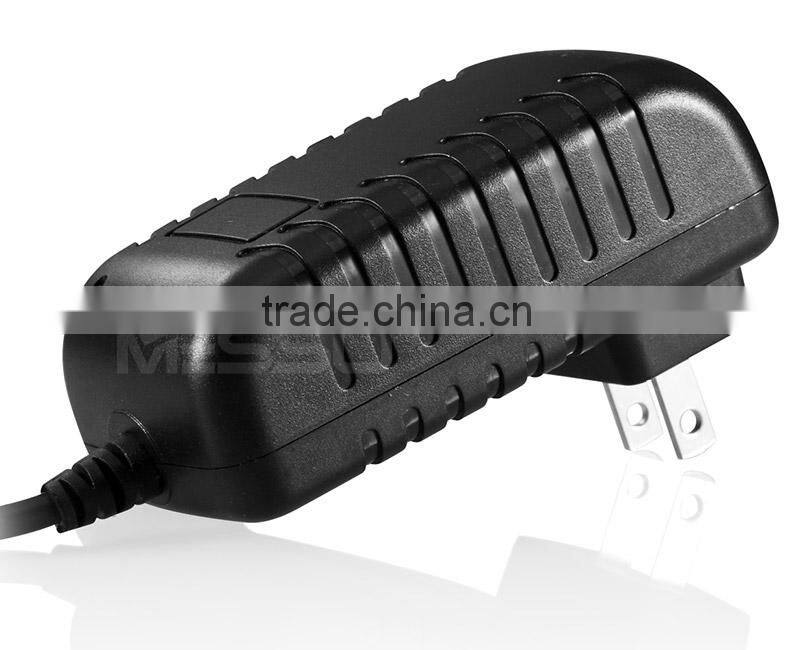

15V 2A AC DC Adapter 100-240V 50-60Hz AC Adapter 15V 2A Swithcing Power Supply 15V 2A AC Adapter
USD $2.5 - $4
/ Piece
500 Pieces(Min.Order)
- 500000 Piece / Pieces per Month
- Shenzhen/Hongkong
- Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | MESSO | Model Number: | MSO1502000B |
| Output Type: | DC | Connection: | Plug In |
Product Description
| ITEM NAME | 15V 2A AC DC ADATPER |
| Features: . 30W AC/DC ADAPTER . Worldwide AC Input Voltage 100-240V . Output Voltage Range: 15V . Output Current Range: 2A . Ripple and Noise: 1% Surge:3KV . Short-Circuit/Overvoltage/Overcurrent Protection . Meet CE RoHS Safety Standard . Warranty: 2 years | |
INPUT | |
| Input Voltage | 85-264VAC |
| Input Frequency | 47-60Hz |
| Input Current | 1A Max at 110VAC |
| Inrush Current | 40A Max at 230VAC |
| Earth Leakage Current | Class II |
| No Load Input Power | <0.3W |
| OUTPUT | |
| Output Voltage | 15V 2A |
| Start Up Delay | 1.3s Max |
| Start Up Rise Time | 15ms Typical |
| Hold Up Time | 10ms Min at full load 115VAC |
| Line Regulation | +/-1% Max |
| Load Regulation | +/-5% Max |
| Ripple Noise | 1% Max |
| Overvoltage Protection | 150% Of Nominal Output |
| Overcurrent Protection | 150% Of Nominal Output |
| Short Circuit Protection | Trip And Restart |
| GENERAL | |
| Isolation | 3000VAC Input To Output |
| MTBF | 50KHrs To MIL-HDBK-217F At 25OC |
| Operation Temperature | -10 To + 70 OC |
| Cooling | Natural Convection |
| Operating Humidity | 5% To 90% RH,Non-Condensing |
| Storage Temperature | -40 To +90 OC |
| Shock | 30g,Half Sine,6 Axes |
| Vibration | 5-50Hz,Accelerated 7.35m/s |
| Altitude | 3000m |
| EMC & SAFETY | |
| Emissions | EN55022 |
| Harmonic Currents | EN61000-3-2,Class A |
| Voltage Flicker | EN61000-3-3 |
| ESD Immunity | EN61000-4-2 |
| Radiated Immunity | EN61000-4-3 |
| EFT/Burst | EN61000-4-4 |
| Surge | EN61000-4-5 |
| Conducted Immunity | EN61000-4-6 |
| Magnetic Field | EN61000-4-8 |
| Dips Interruptions | EN61000-4-11 |
| Dimensions & Weight | |
| Dimensions | 3.54 in x 1.77 in x 2.60 in ( 9cm x 4.5cm x 6.6cm ) |
| Box Size / PCS | 4.72 in x 2.76 in x 2.09 in (12cm x 7cm x 5.3cm) |
| Carton Size / CTN | 19.69 in x 15.16 in x 11.22 in (50cm x 38.5cm x 28.5cm) |
| Package | BOX+CARTON 100PCS/CTN |
| Packing List | |
1 x Paper Box | |
| Terms of payment | |
| 1) T/T: Internet bank, telegraphic transfer 2) Western Union 3) Paypal 4) Ali Escow 5) Irrevocable L/C draft at sight | |
| Shipping Methods | |
| Express/Air transportation: DHL, FEDEX,USP, EMS, TNT, ARAMES / Sea Transportation / Land Transportation | |
