Home > Electrical & Electronics > Electric Motor > AC Motor > Fan Part External Rotor Fan Motor

Fan Part External Rotor Fan Motor

Name: Fan Part External Rotor Fan Motor
Brand: FENGDA
SKU: 133100545
Availability: InStock

Fan Part External Rotor Fan Motor thumbnail-1

Fan Part External Rotor Fan Motor thumbnail-2

Fan Part External Rotor Fan Motor thumbnail-3

Fan Part External Rotor Fan Motor photo-1

Fan Part External Rotor Fan Motor photo-2

Fan Part External Rotor Fan Motor photo-3

US$ 15 - 75 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Brand Name:

FENGDA

Model Number:

YDW0.32-4

Type:

Asynchronous Motor

Contact Supplier Request Quote Chat Now

Taizhou Defeng Mechanical And Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name FENGDA

Model Number YDW0.32-4

Type Asynchronous Motor

Frequency 50/60HZ

Output Power 0.32kw

Protect Feature Waterproof

Phase Three-phase

Certification CCC, CE, ROHS, UL, VDE

AC Voltage 208-230 / 240 V

Place of Origin Zhejiang, China

Efficiency IE 2

Specifications

Fan part external rotor fan motor
1.over 14years
2.different sizes available
tection grade:IP54

AC external rotor motor

Product Description

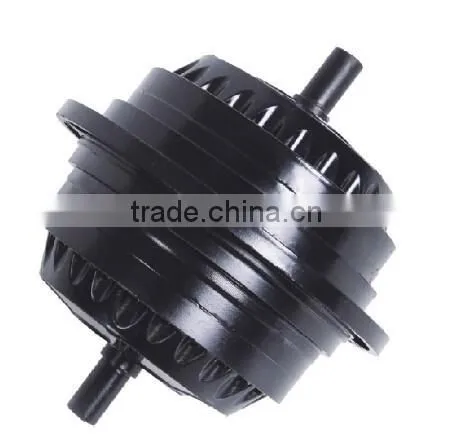

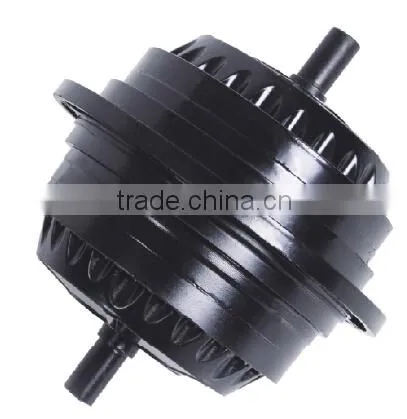

YDW series outer rotor three-phase asynchronous motors with low noise are totally enclosed three-phase asynchronous motors. The features of motors are as following: fixed shaft, running out shell; low noise, stable operation, credible and safe, adjusting the speed steplessly by reducing voltage. As the axis is fixed and shell is running, the shell can joint with blade, which is better for the horizontal double suction centrifugal fan and air-condition fan. The motor has been used widely in all kinds of aeration equipments.

Model	Voltage V	Current A	Power W	Efficiency	Protection level	Class of insulation	Temperature	Weight KG
YDW0.25-4	230	0.9	0.25	64	IP44	F	85	3
YDW0.32-4	230	1.1	0.32	65	IP44	F	85	3
YDW0.37-4	230	1.25	0.37	68	IP44	F	85	3
YDW0.45-4	230	1.44	0.45	70	IP44	F	85	4
YDW0.55-4	230	1.71	0.55	70	IP44	F	85	4
YDW0.8-4	230	2.32	0.8	74	IP44	F	85	4

MODEL	INSTALLATION DIMENSION							CONTOUR DIMENSION
MODEL	M	N	S	D	E	F	G	P	L	L1	L2	H1	H2
YDW0.25-4A	Φ147	Φ130	M6	Φ16	30	--	14	Φ162	202	145	73	20	10
YDW0.25-4	Φ166	Φ150						Φ180	223	148	74	10
YDW0.32-4									223	158	79
YDW0.37-4									223	158	79
YDW0.45-4					40				263	168	84
YDW0.55-4									263	178	89
YDW0.8-4									283	188	99

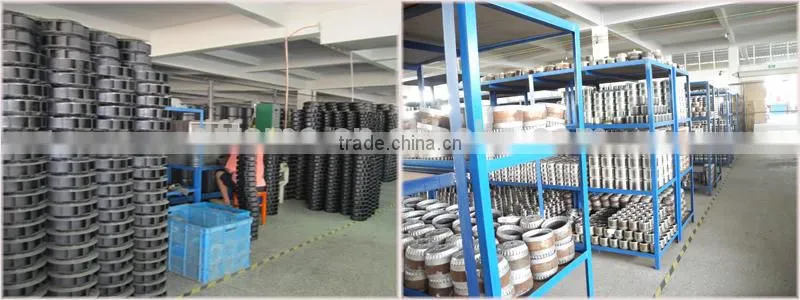

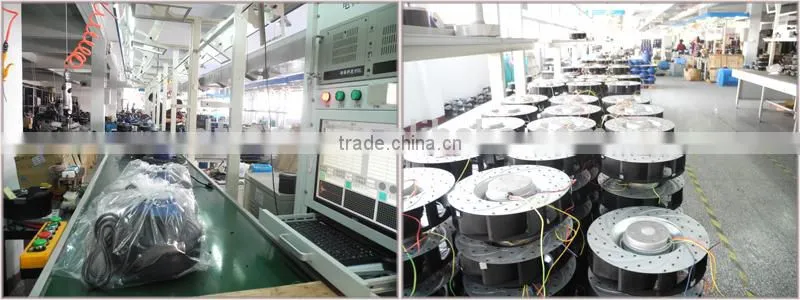

Company Information

FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.

We professionally manufacture various fans and motors,which widely used in ventilation,air condition,cooling

and heating industry.

We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.

Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,being

the greast contribution",which establish the famous brand of "Fengda".We have gotten CE certificates and ISO9001

Quality Management System Certification.And our products are exporting to Europe and America,Middle East,Russia etc.

Packaging & Shipping

Single packing in one carton

Our Services

1.Warranty:1 year warranty for all products.

2.Products Quality:100% products inspection before delivery.

3.Just in time delivery: Normally,lead time is 30 days.

4.Customized Service: As we have our own molding department,customized service can be provided.

5.Prompt customers services:E-mail will be replied in 24 hours.

FAQ

1. Q: What information do you need to provide in order to get a question?

A: Generally,information about size,Air Flow,Voltage of required fans is needed in order to

select a right fan for you and provide you a quation.

2. Q: Can I have samples for testing before ordering products?

A: Yes,we sincerely suggest that customers should be have samples of required fans for testing because

the truly performace of fans can be fully demonstrated after testing is conducted.

3. Q:Can I have a discount for the quoted price?

A: The quoted price is based on annual usage quantity.If annual usage quantities increase,please provide the information to our sales.We will provide you a furth discount.

4. Q:What is the warranty of products?

A: All of our products have 1 year warranty.Every product has its own production code.This code is

able to track the productiuon time.
