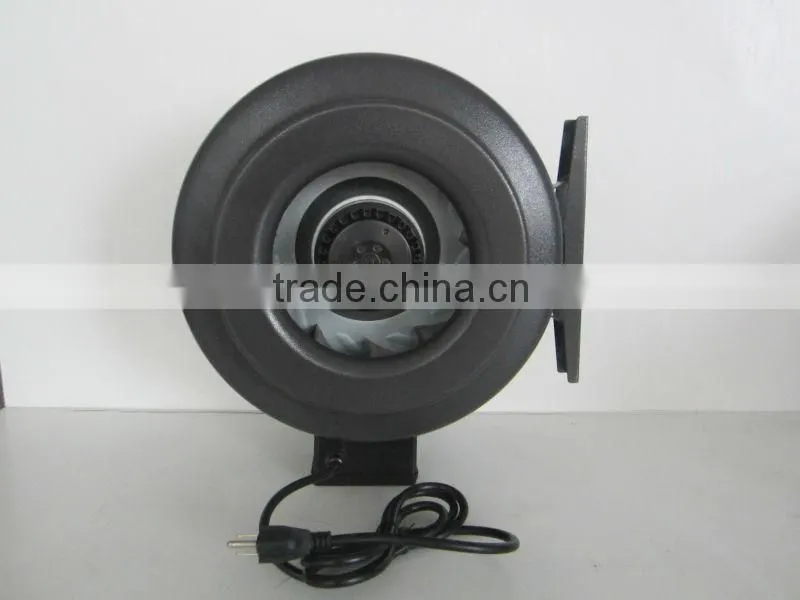

2" hydroponics duct inline booster fan

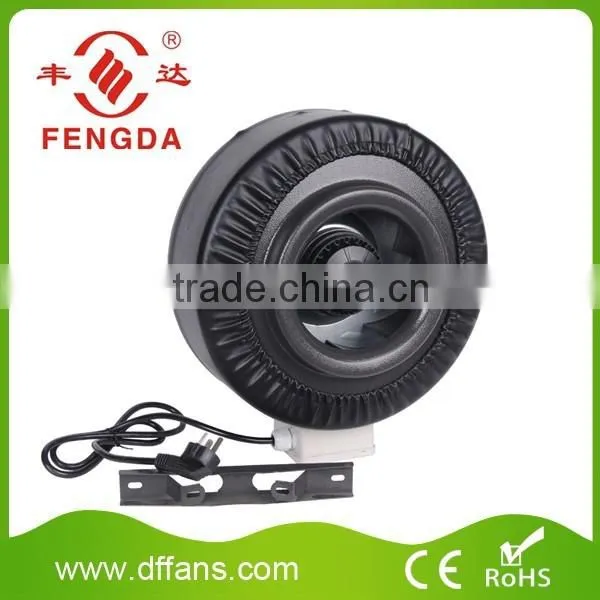

1. An Overvew of Duct Fan
1.The Voltage of the fan is 110-120V,60Hz or 220-240V,50/60Hz.
2.Leather Jacket: It is Desinged by our factory to lower noise,and it also could be air proof and rust proof.

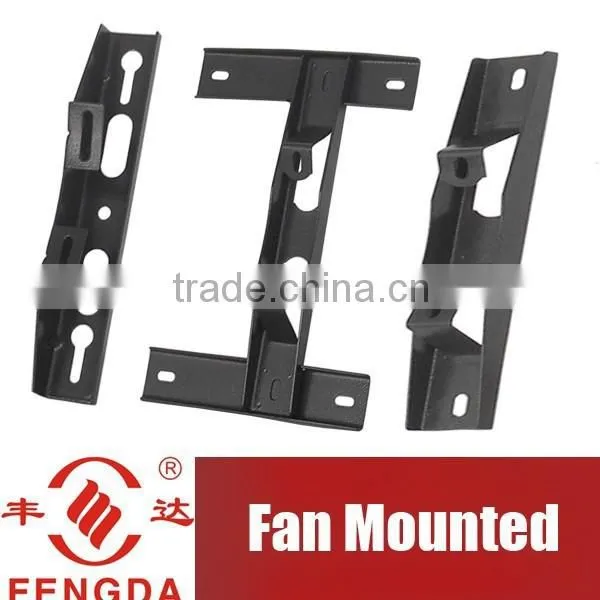

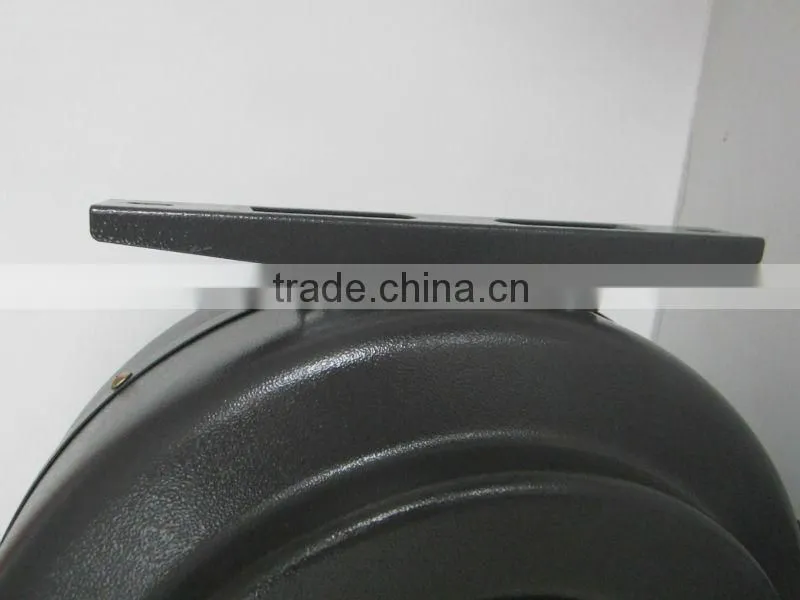

3.Fan Mounted Feet: There are various kinds according to customer's request.
4.Colour:Orange Black Ash,Black,Sliver,White,Red,Blue,Etc

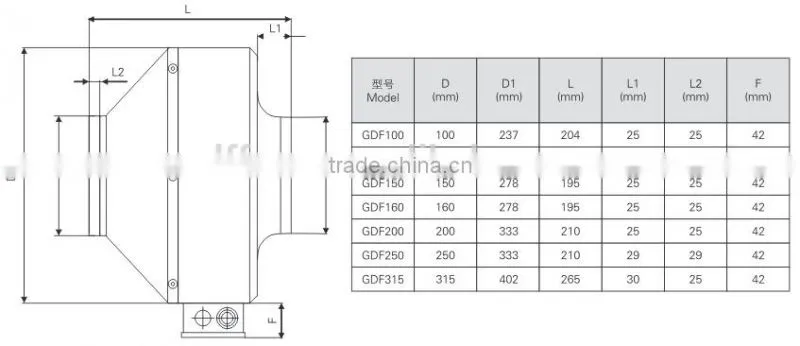

2. shape and the size of installation
3. performance parameters
| Model |
Voltage (V) |
Frequency (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Air Flow ( m3/h ) |
Noise ( dB ) |
Pressure (Pa) |
Carton Size (M) |
| GDF100 | 110/120 | 60 | 70 | 0.61 | 2700 | 345 | 49 | 350 | 0.31*0.26*0.235 |
| GDF125 | 110/120 | 60 | 75 | 0.65 | 2700 | 430 | 49 | 380 | 0.31*0.26*0.235 |
| GDF150 | 110/120 | 60 | 130 | 1.0 | 2650 | 700 | 50 | 430 | 0.36*0.32*0.25 |
| GDF160 | 110/120 | 60 | 135 | 1.1 | 2650 | 730 | 50 | 450 | 0.36*0.36*0.25 |
| GDF200 | 110/120 | 60 | 200 | 1.7 | 2550 | 1150 | 53 | 550 | 0.405*0.36*0.29 |
| GDF250 | 110/120 | 60 | 210 | 1.8 | 2550 | 1200 | 53 | 600 | 0.405*0.365*0.265 |
| GDF315 | 110/120 | 60 | 250 | 2.0 | 2550 | 1800 | 53 | 790 | 0.485*0.435*0.285 |
| Model |
Voltage (V) |
Frequency (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Air Flow ( m3/h ) |
Noise ( dB ) |
Pressure (Pa) |
Carton Size (M) |
| GDF100 | 220/240 | 50 | 60 | 0.26 | 2550 | 300 | 48 | 300 | 0.31*0.26*0.235 |
| GDF125 | 220/240 | 50 | 62 | 0.27 | 2550 | 370 | 48 | 330 | 0.31*0.26*0.235 |
| GDF150 | 220/240 | 50 | 100 | 0.47 | 2550 | 620 | 49 | 355 | 0.36*0.32*0.25 |
| GDF160 | 220/240 | 50 | 105 | 0.48 | 2550 | 660 | 49 | 380 | 0.36*0.36*0.25 |
| GDF200 | 220/240 | 50 | 150 | 0.7 | 2500 | 1000 | 52 | 430 | 0.405*0.36*0.29 |
| GDF250 | 220/240 | 50 | 160 | 0.71 | 2500 | 1100 | 52 | 490 | 0.405*0.365*0.265 |
| GDF315 | 220/240 | 50 | 220 | 1.0 | 2450 | 1600 | 52 | 710 | 0.485*0.435*0.285 |

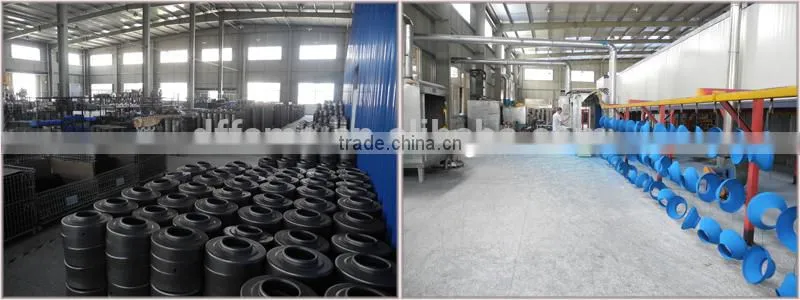

FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology ,specialized production facilities and advanced inspection instruments,relying on professionally
R&D team,high efficiency production lines and scientific management."Low noise,high airflow volume,stable running and
long lifetime" to be our strongpoint.By national detection ,the technical values of noise,volume, temperature rising balance,
lifetime are better than other factories.
Packed in seaworthy cartons, we also could packing according to customers' requests
1.Warranty:1 year warranty for all products.
2.Products Quality:100% products inspection before delivery.
3.Just in time delivery: Normally,lead time is 30 days.
4.Customized Service: As we have our own molding department,customized service can be provided.
5.Prompt customers services:E-mail will be replied in 24 hours.
1. Q: What information do you need to provide in order to get a question?
A: Generally,information about size,Air Flow,Voltage of required fans is needed in order to
select a right fan for you and provide you a quation.
2. Q: Can I have samples for testing before ordering products?
A: Yes,we sincerely suggest that customers should be have samples of required fans for testing because
the truly performace of fans can be fully demonstrated after testing is conducted.
3. Q:Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity.If annual usage quantities increase,please provide the information to our sales.We will provide you a furth discount.
4. Q:What is the warranty of products?
A: All of our products have 1 year warranty.Every product has its own production code.This code is
able to track the productiuon time.
1.Freenhouse
2.Hydroponics
3.Kitchen
4.Worshop
5.House
6.Vessel
