Home > Products > Centrifugal fan with internal rotor motor > 9-19 A type low noise high pressure centrifugal fan

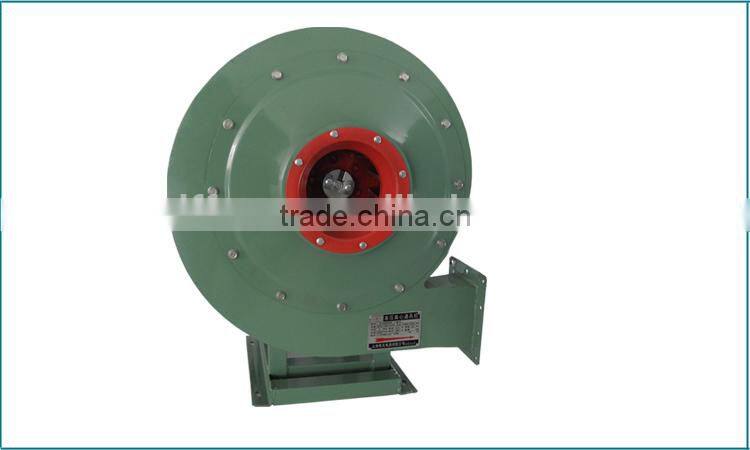

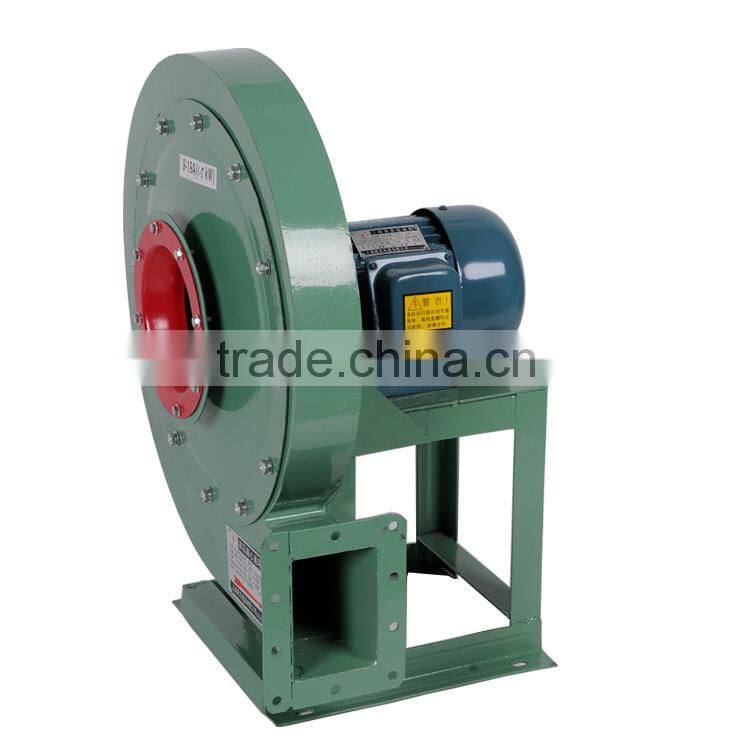

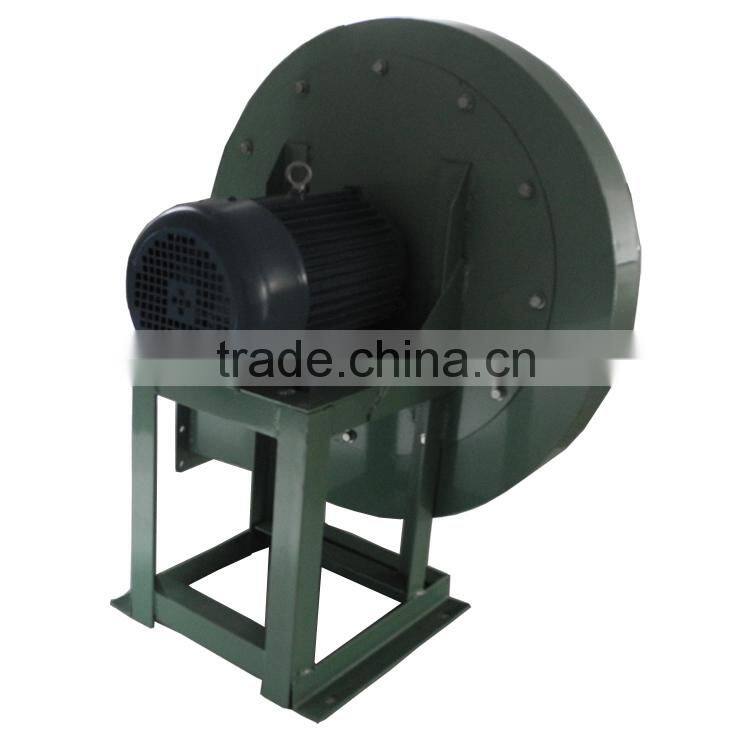

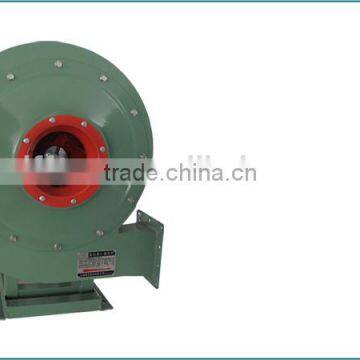

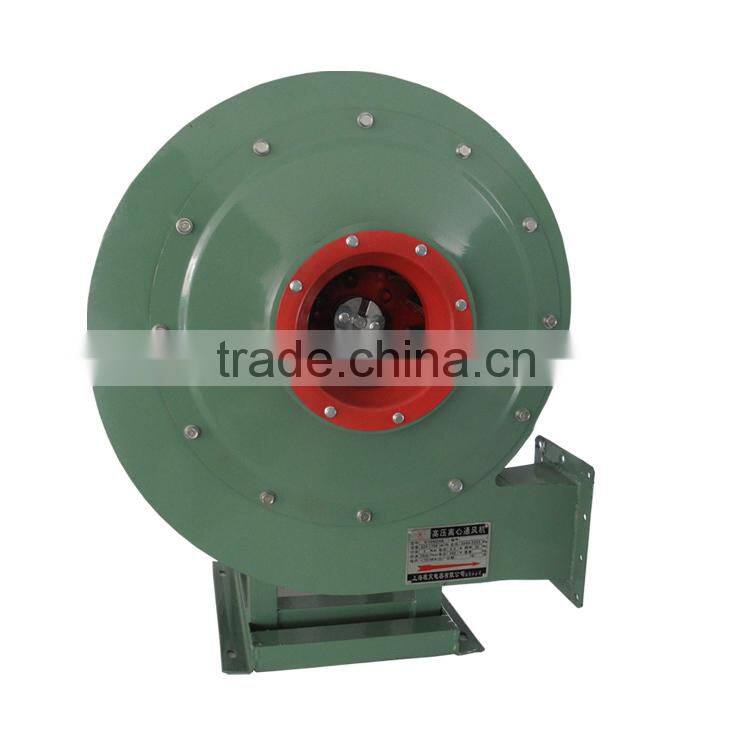

9-19 A type low noise high pressure centrifugal fan
- 50000 Piece / Pieces per Month
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Electric Current Type: | AC | Blade Material: | Cast Iron | Mounting: | Wall Fan |
Place of Origin: | Zhejiang, China | Brand Name: | FENGDA | Model Number: | 4.5A |
Power: | 5.5-2kw | Voltage: | 380v | Air Volume: | 1174~2504m3/h |
Speed: | 2900rpm | Certification: | CCC, CE, CSA, GS, ROHS, UL | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
9-19 A type low noise high pressure centrifugal fan1.Size:from 3.15A to 6.3A
2.1 year warranty
3.CCC,CE approve
9-19 A type low noise high pressure centrifugal fan
9-19 , series high pressure centrifugal fans are widely used for delivering material ,air and gas without corrosive, non-hypergolic or no sticky stuff. The temperature of medium should not exceed 80℃. The dust and hard particles contained should not exceed150mg/m3. It is applicable for trades as forging, metallurgy, glass, ceramics, radio, electroplating, accumulator and other high pressure forcing ventilation conditions. Also, it can be used to deliver the material in the industries such as food, grain, forage, mineral powder, plastics and so on.
Model
| Speed | Power | Air Flow | Pressure (Pa) |
rpm | kW | m3/h | Pa | |
3.15A
| 2900 | 0.75 | 390~810 | 1919~1953 |
2900 | 1.1-2 | 390~810 | 1919~1745 | |
3.55A
| 2900 | 1.5-2 | 560~760 | 2545~2590 |
2900 | 2.2-2 | 560~1160 | 2545~2310 | |
4A
| 2900 | 2.2-2 | 824~1264 | 3584~3597 |
2900 | 3-2 | 824~1704 | 3584~3253 | |
4.5A
| 2900 | 4-2 | 1174~2064 | 4603~4447 |
2900 | 5.5-2 | 1174~2504 | 4603~4112 | |
5A
| 2900 | 7.5-2 | 1610~3166 | 5697~5323 |
2900 | 11-2 | 1610~3488 | 5697~5080 | |
5.6A
| 2900 | 11-2 | 2262~3619 | 7182~7109 |
2900 | 18.5-2 | 2262~4901 | 7182~6400 | |
6.3A
| 2900 | 18.5-2 | 3220~5153 | 9149~9055 |
2900 | 30-2 | 3220~6978 | 9149~8148 |

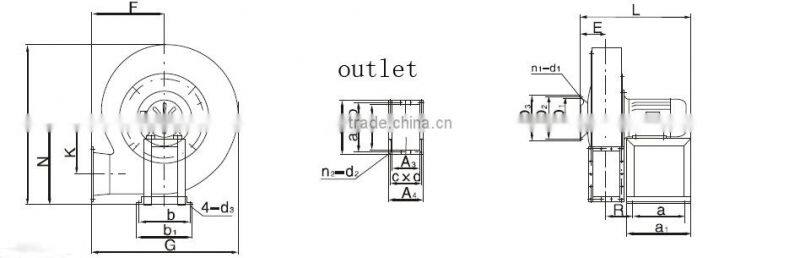

Model | Air inlet size | Air outlet size | |||||||||
D1 | D2 | D3 | n1-d1 | A1 | A2 | A3 | A4 | a×b | c×d | n2-d2 | |
2.5 | Φ154 | Φ184 | Φ214 | 6-Φ8 | 71 | 124 | 64 | 118 | 3×33 | 3×31 | 12-Φ8 |
2.8 | Φ126 | Φ152 | Φ176 | 8-Φ7 | 90 | 143 | 64 | 118 | 2×59 | 2×46.5 | 8-Φ8 |
3.15 | Φ140 | Φ160 | Φ180 | 6-Φ6 | 100 | 134 | 73 | 108 | 2×59.5 | 2×46.5 | |
3.55 | Φ160 | Φ180 | Φ200 | 114 | 147 | 82 | 117 | 2×66 | 2×51 | ||
4 | Φ180 | Φ205 | Φ230 | 8-Φ7 | 128 | 182 | 92 | 148 | 4×40 | 3×42 | 14-Φ7 |
4.5 | Φ200 | Φ225 | Φ250 | 144 | 198 | 104 | 160 | 4×44 | 3×45 | ||
5 | Φ224 | Φ254 | Φ284 | 160 | 241 | 115 | 171 | 4×48 | 3×50 | ||
5.6 | Φ250 | Φ280 | Φ310 | 179 | 233 | 129 | 187 | 4×53 | 3×54 | ||
6.3 | Φ280 | Φ320 | Φ360 | 8-Φ10 | 202 | 256 | 145 | 203 | 4×59 | 3×60 |
Model | shape size | Weight(except motor) kg | ||||||||||||
G | M | L | F | N | K | E | R | a | b | a1 | b1 | d3 | ||
2.5 | 354 | 450 | 310 | 157 | 271 | 171.5 | 55 | 51 | 180 | 200 | 270 | 230 | Φ12 | 15 |
2.8 | 413 | 533 | 315 | 184 | 325 | 200 | 69.5 | 47 | 200 | 210 | 290 | 240 | Φ10 | 16 |
3.15 | 460 | 540 | 362 | 207 | 310 | 225 | 75 | 68 | 120 | 330 | 198 | 355 | 18 | |
3.55 | 518 | 609 | 397 | 233 | 350 | 254 | 86 | 71 | 140 | 365 | 218 | 397 | Φ12 | 22 |
4 | 584 | 712 | 466 | 262 | 420 | 286 | 100 | 85 | 200 | 350 | 300 | 385 | Φ15 | 35 |
4.5 | 657 | 778 | 567 | 295 | 450 | 322 | 110 | 89 | 240 | 390 | 340 | 430 | 45 | |
5 | 730 | 864 | 706 | 328 | 500 | 358 | 120 | 93 | 340 | 360 | 415 | 395 | 57 | |
5.6 | 817 | 958 | 768 | 367 | 550 | 400 | 133 | 98 | 350 | 485 | 447 | 532 | 71 | |
6.3 | 920 | 1080 | 819 | 413 | 620 | 450 | 148 | 115 | 450 | 570 | 567 | 625 | Φ20 | 99 |
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs. We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
