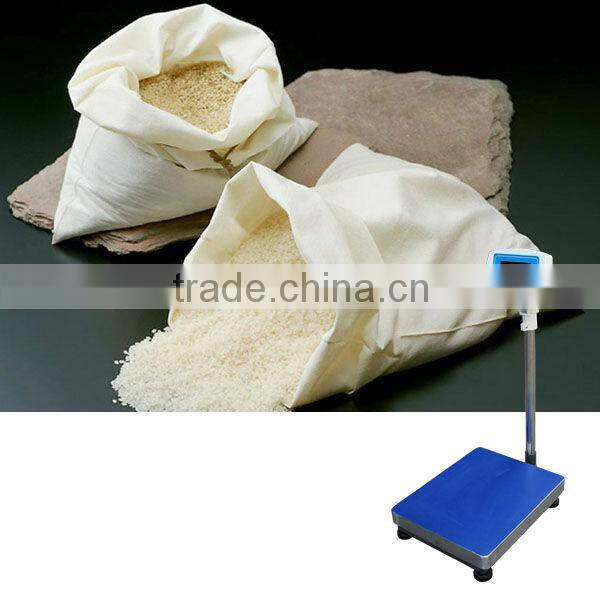

Weighing or Counting Platform Scale

Specifications

1.CE certification
2.HI/LO/OK weight alarm function
3.RS232 interface
4. Weight accumulation
5. Capacity:15kg-300



weighing or counting platform scale





LWS weighing platform scale with die cast aluminum base;



Construction base material : die cast aluminum base;



* Precision 1/15000-1/30,000, it is fast ,precision and stable for weighing;

* Single-point calibration and three-points calibration function for hihg precision;

* Weight HI/LO/OK alarm function;

* Accumulation function for weight function;

* Operated by power supply or rechargeable battery;

* Option: bi-direction RS-232 interface;



(1) Option: bi-direction RS-232 interface;

(2) Single-point calibration and three-points calibration function for high precision;

(3) HI/LO/OK alarm function, HI/LO/OK setting can be stored;

(4) Weight accumulation function, weighing data is not missed;

(5) Auto zero and software filter function, the response speed of weighing is adjusted according to different environment;

(6) Operated by power supply or rechargeable battery;

(7) Option: bi-direction RS-232 interface;

(8) Automatic zero point tracking function;

(9) Selection of the ON/OFF of the zero tracking;

(10) Selection of the baud rate of the RS232 interface;

(11) The beep function can be activated when the weighing reach the HI-LO limits;

(12) Tare function;

(13) Pre-tare function;

(14) Simple counting function is applicable;

(15) Tare range is unlimited;

(16) AC power or rechargeable battery is applicable;

(17) Operation temperature: -5 -40.





Model : LWS-15K	Capacity/resolution: 15kg* 1g	Pan size: 280*280mm
Model : LWS-30K	Capacity/resolution: 30kg* 2g	Pan size: 420*520mm
Model : LWS-75K	Capacity/resolution: 75kg* 5g	Pan size: 420*520mm
Model : LWS-150K	Capacity/resolution: 150kg *10g	Pan size: 420*520mm
Model : LWS-300K	Capacity/resolution: 300kg *20g	Pan size: 420*520mm
