Product Description

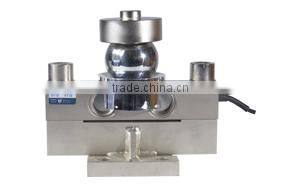

Truck scale /Weighbridge scale load cell
NO: HM9B 10 T ~100 T
FEATURES
Alloy steel,nickel-plated,welding-sealed,
Suitable for electronic vehicle scales,track
scales and other electronic weighing devices
CAPACITY 10t | ACCURACY C3 | MODEL HM9B-C3-10t-12B |
ELECTRICAL CONNECTION
Red Input(+) Black Input(-) Green Output(+) White Output(-) Transparence (Shield)
SPECIFICATIONS
Accuracy class | OIML R60 C3 | Temperature effect on span (%FS/10°C) | 0.014 |
Rated Output (mV/V) | 2.0+0.002 | Temperature effect on zero( %FS/10°C) | 0.017 |
Combined Error (%FS) | 0.017 | Temperature,compensated(°C) | -10--+40 |
Non-linearity (%FS) | 0.02 | Temperature,operating(°C) | -35---+65 |
Non-repeatability (%FS) | 0.02 | Excitation,recommended(V) | 5---12(DC) |
Creep (%FS/30min) | 0.02 | Excitation,permition(V) | 18(DC) |
Input Resistance(Ω) | 700+7 | Safe Overload(%FS) | 150 |
Output Resistance(Ω) | 700+7 | Ultimate Overload(%FS) | 300 |
Insulation Resistance(MΩ) | ≥5000(50VDC) | Protection Class | IP68 |
Zero Balance (%FS) | 1.5 | Cable Length (m) | 12 |
Remark | With load button | Cable spec | 4-wire shielded |
