Cost Price Flat Panel Solar Thermal Collector Hot Water Heater
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
High Tech Engineering Project Pressurized Solar Water Heater Collector China
-
Vacuum Tube Solar Collector Hot Water System CE ISO Certification
-
Pressurized Type and Water Heater Application Heat Pipe Solar Collector
-
High Quality Heat Pipe Manifold Solar Collector for Split Pressurized Solar Water Heater System
-
Green Vacuum Tube Solar Collector With Water Tank for Hotel,swimming Pool
-
Swimming Pool Four Seasons Features of Vacuum Tube Collector Solar Heating Mats
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Shinesea | |
| Model Number | HX-FP-100 | Type | Flat Panel | |
| Application | Solar Thermal | Pipe Material | Copper |
Product Description

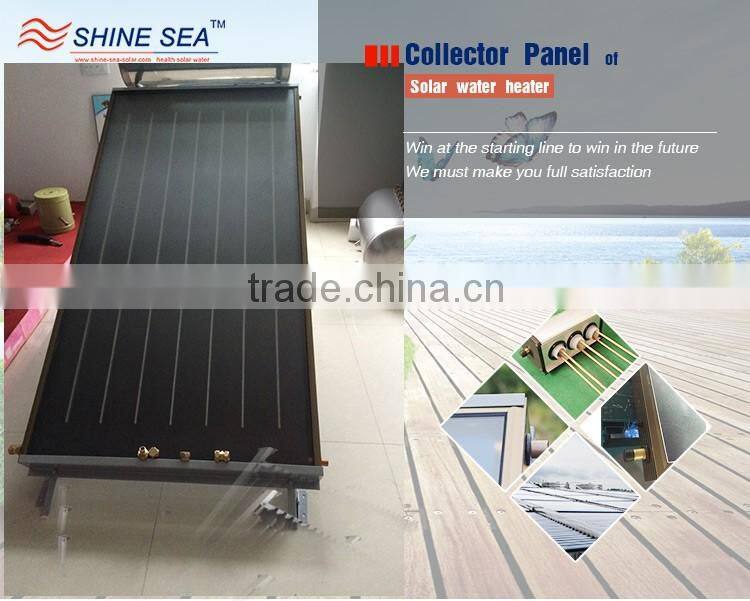

Cost price flat panel solar thermal collector hot water heater
Description | Model No.FP2-CT | Model No.FP2-CAT | Model No. FP2-CC | Model No. FP2-CAA | |
Diamension L*W*H | 2000x1000x80 mm | 2000x1000x80 mm | 2000x1000x70 mm | 2000x1000x70 mm | |
Gross Area | 2.00 m2 | 2.00 m2 | 2.00 m2 | 2.00 m2 | |
Absorber Area | 1.85 m2 | 1.85 m2 | 1.85 m2 | 1.85 m2 | |
Net Weight | 35 Kg | 35Kg | 35 Kg | 34Kg | |
Max. Pressure |
|
|
|
| |
Max Working Pressure | 0.6 Mpa | 0.6 Mpa | 0.6 Mpa | 0.6 Mpa | |
Connector Type | Staight Pipe Without Screw | Staight Pipe Without Screw | Staight Pipe Without Screw | Staight Pipe Without Screw | |

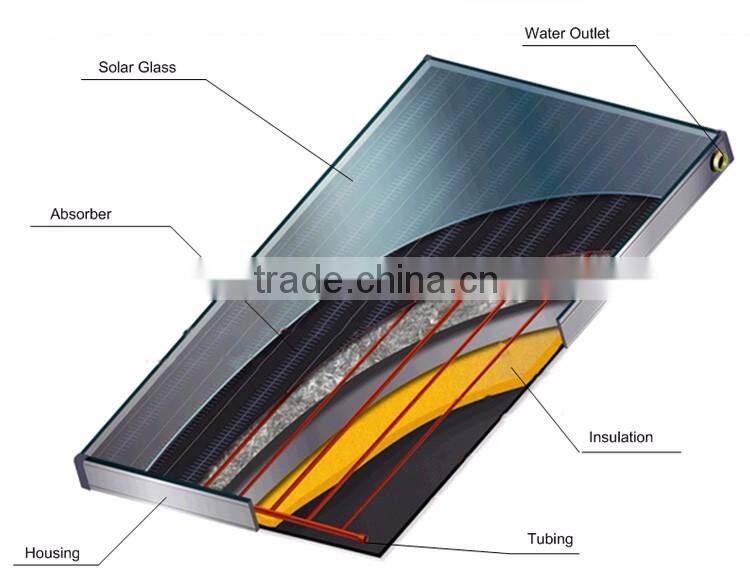

Absober | Dimension LxWxT | 1850 x 140 x δ0.3 mm | 1850 x 140 x δ0.3 mm | 1850 x 140 x δ0.15 mm | 1850x140x δ0.41 mm |
Materials | Red Copper & Aluminum Belt | Aluminum | Red Copper & Aluminum Belt | Aluminum | |
Surface Treatment | Blue Titanium Coating | Blue Titanium Coating | Black Chromed | Anodization | |
Construction Type | Fin & Tubes | Fin & Tubes | Fin & Tubes | Fin & Tubes | |
Absorptivity/Emissivity | 96%(+-2%)/5%(+-2%) | 96%(+-2%)/5%(+-2%) | 96%(+-3%)/9%(+-5%) | 95%(+-3%)/18%(+-5%) | |
Riser Tube Size/Material | Ø10 x 0.5 x 1886 mm 7pcs/ | Ø10 x 0.5 x 1886 mm 7pcs/ | Ø10 x 0.5 x 1888 mm 7pcs/ | Ø9.5 xδ0.4 x 1888 mm 7 | |
Header Tube Size/Material | Ø22 x 0.6 x 1060mm 2pcs | Ø22 x 0.6 x 1060mm 2pcs | Ø22 x 0.6 x 1060mm 2pcs | Ø22 x 0.6 x 1060mm 2pcs | |
We Huanxi is a leading manufacturer of solar water heater with over 10 years’ export experience.
Main market covers Mexico,Jordan,India,Vietnam,Brazil,Uruguay,Chile,Peru,etc.......

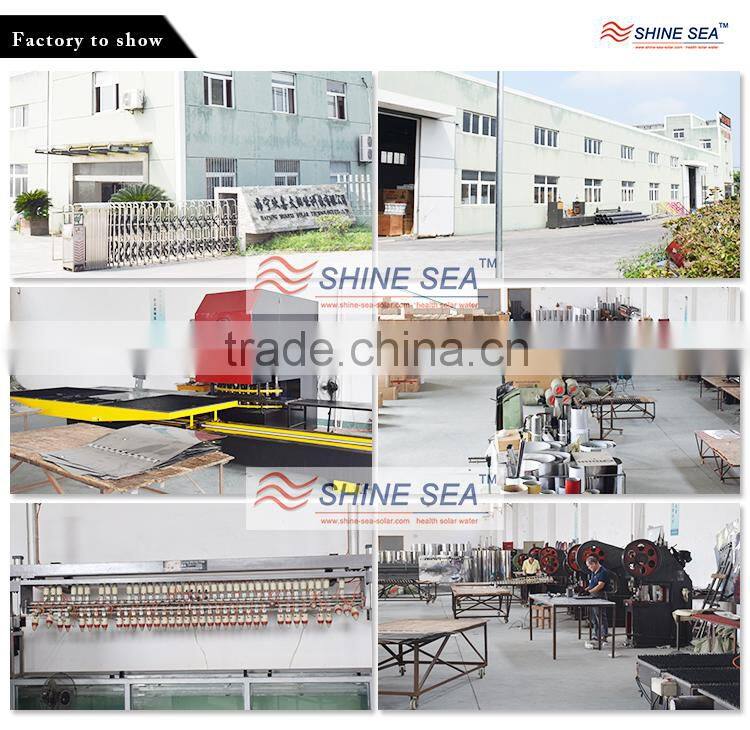

Covering an area of 15000 Square meters,owning a skilled technical team and advanced production
line,which assured us a huge production capacity with over 100000 SETS per year.

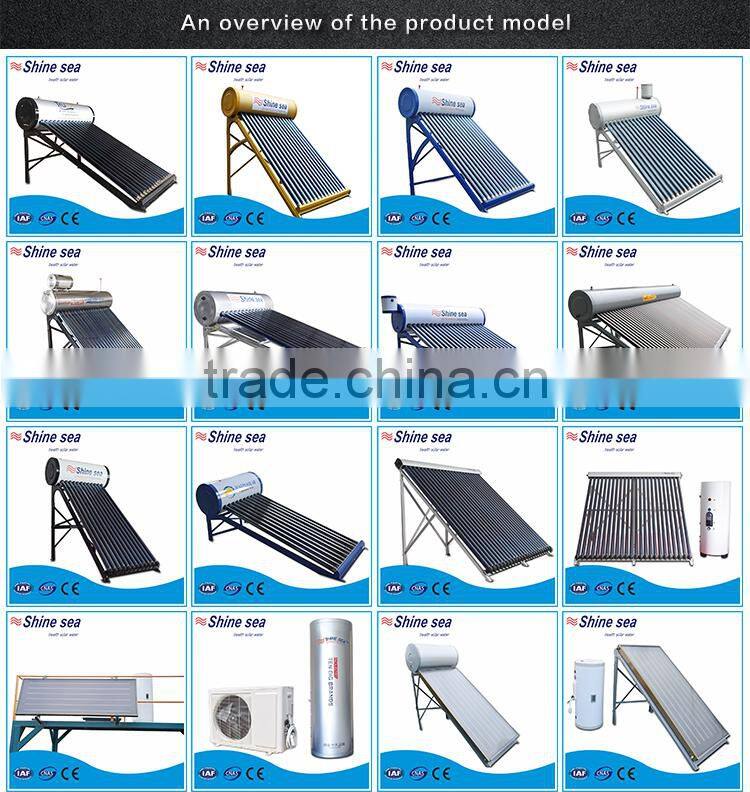

Products include Non-Pressure,pressurized solar water heater,flat plate solar water heater,
solar collector project with all variety of configuration.
Do welcome to join us for a same concept----Making a friendly environment,solar water heater,go GREEN!!!!
1.) Inquiry Response: Your Inquiry will be replied within 24 Hours
2.) Sample Order:3--7 Days for sample order
3.) Can do OEM Basing on your detailed Request
1- What is your Delivery Time?
LCL order/Sample order: 3--7days.
Full container order:7-10days.
2- What is your Guarantee Time?
3 years.
3- Can you accept OEM ?
YES, will do OEM Basing on all your detailed requirements.
4- What is your Payment Term?
We accept T/T,Escrow & West Union
5-What is your MOQ?
1 set
6-What is your Packing?
LCL order/Sample order in wooden box Package
Full container order in Standard quality export carton with PE Foam Protection
7-What is your FOB Port?
We accept FOB Shanghai & Ningbo
8.-What is your Monthly Production Capacity?
1000 sets
9-What is your Shipping Term?
By Sea/Air/Rail
Contact Us
- Haining Huanxi Energy Science Technology Co., Ltd.
- Contact nameLeo Zhang Chat Now
- Phone0086-573-8787-2805
- AddressNo.2,Shuangfeng Industrial Park 3rd Zone,Yuanhua Town,Haining City,Zhejiang Province,China, Jiaxing, Zhejiang
