Specifications
AC 3000 cfm backward curved centrifugal fan for ffu1.Size: 175mm to560mm
2.1 year warranty
3.low noise
4.CE,UL applroved

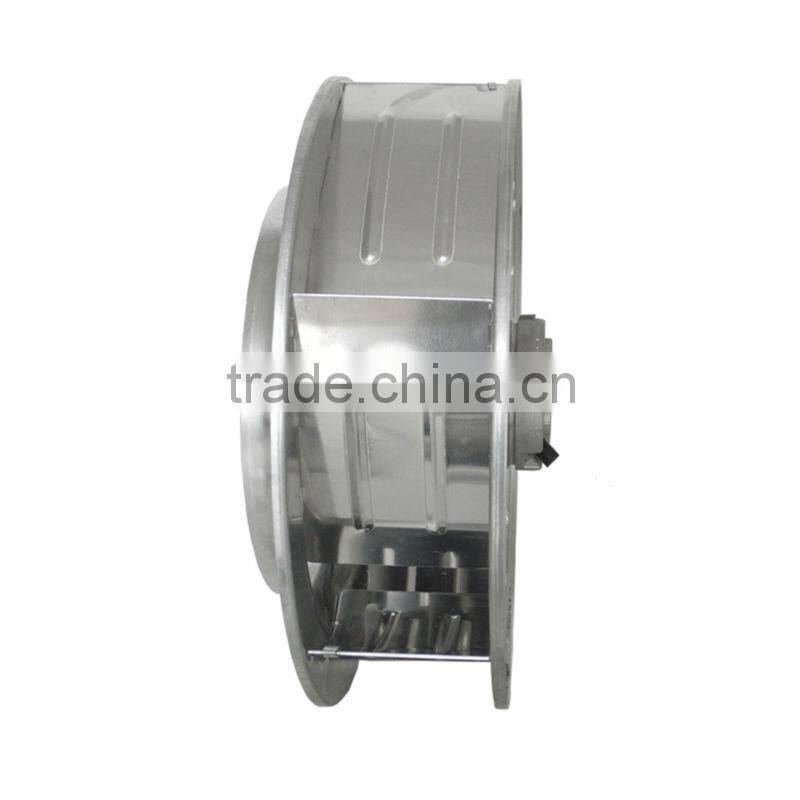

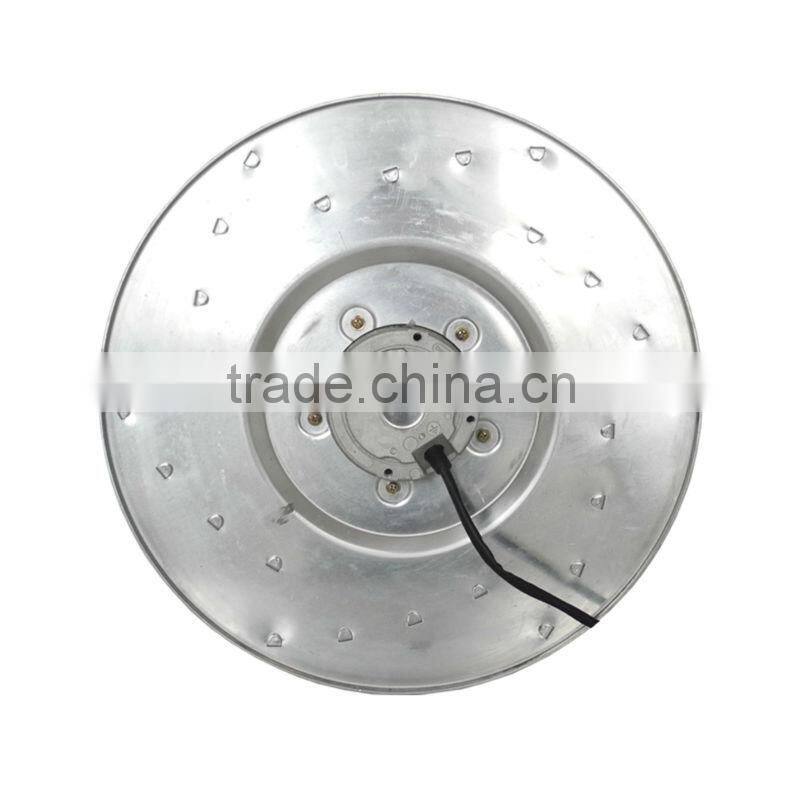

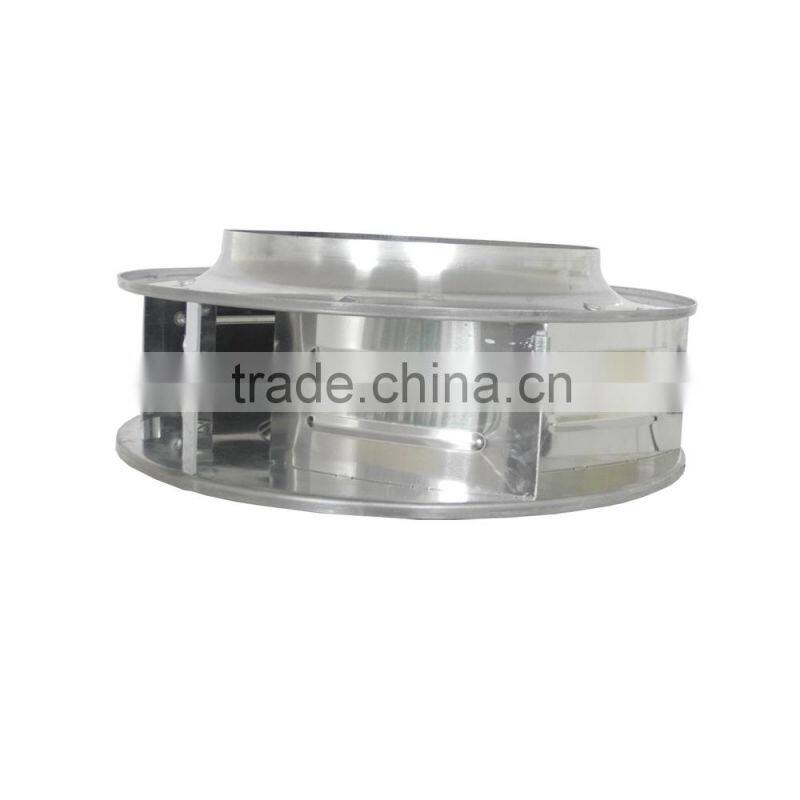

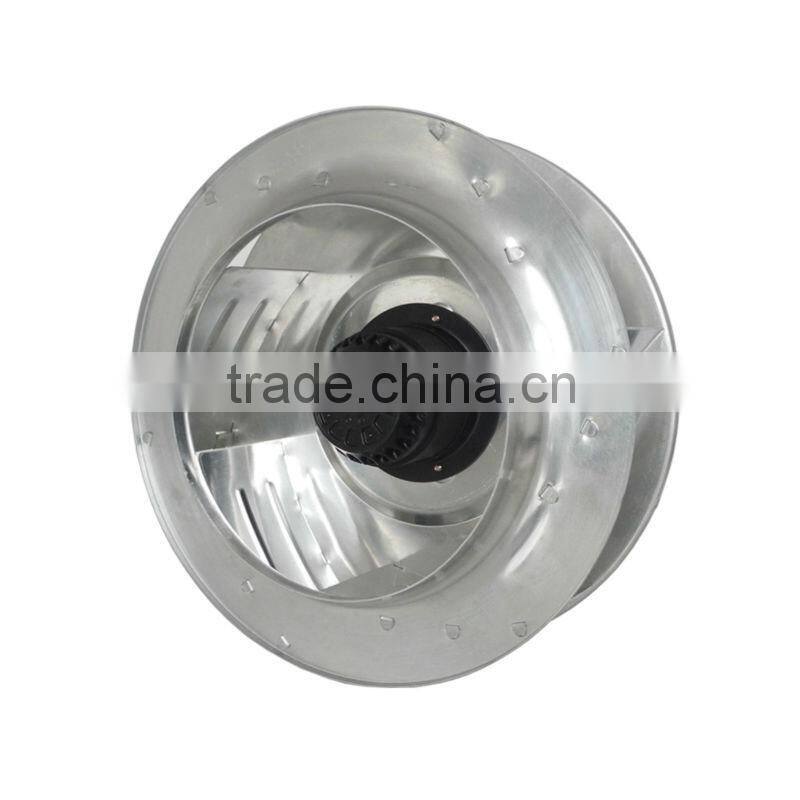

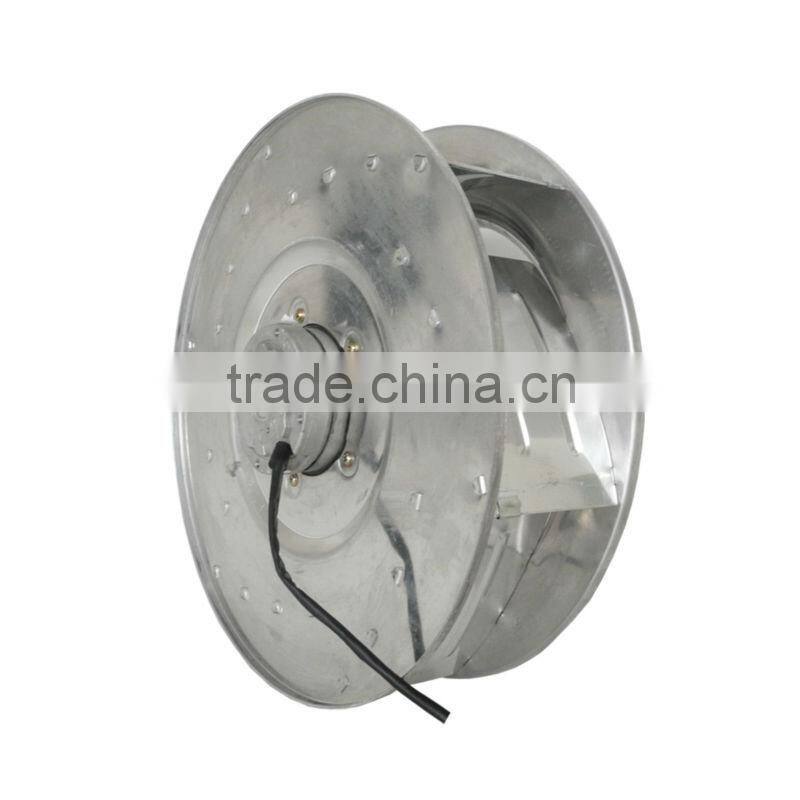

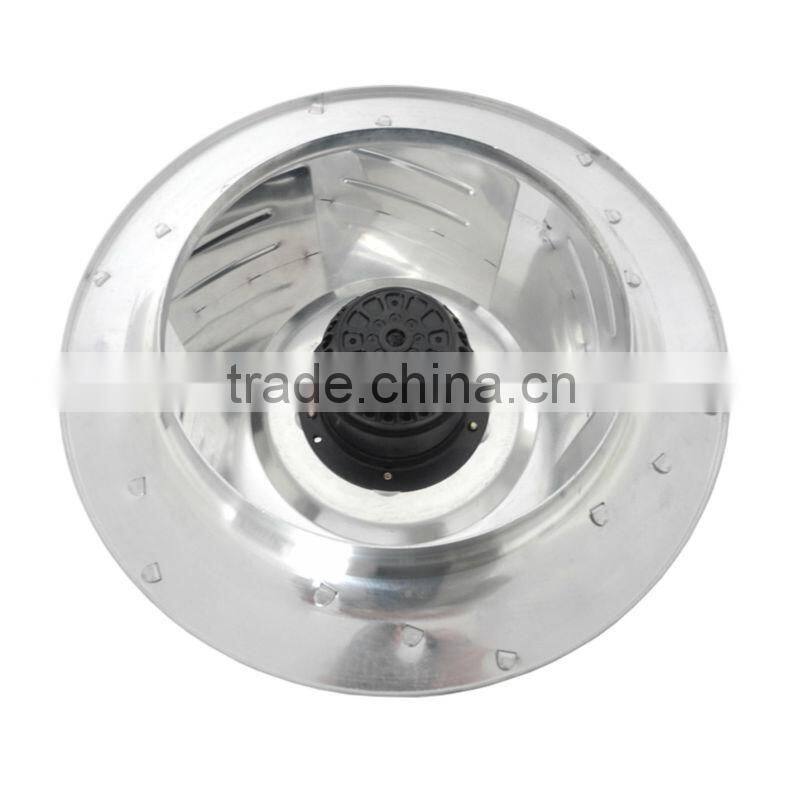

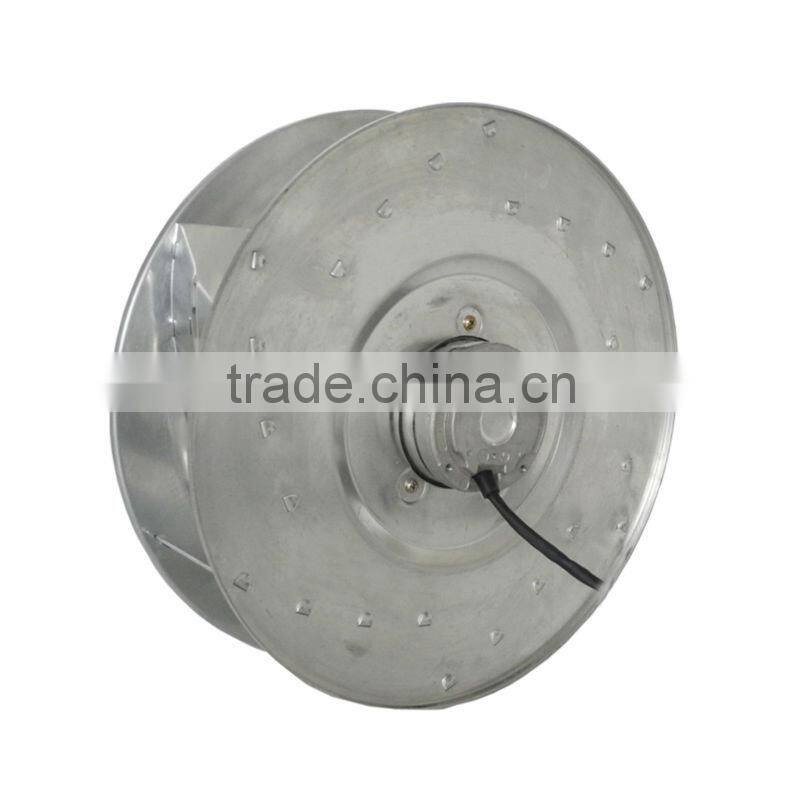

AC 3000 cfm backward curved centrifugal fan for ffu
1. An Overvew of Centrifugal Fan With Backward Curved Blades
(1)Description
Backward curved centrifugal fans are used primarily for intake suction and do not require a scroll housing. They have high hydraulic efficiency. They usually offer a quiet and compact air moving solution. The Permanent Split Capacitor motors provide reduced operating costs and longer service life. Ball bearing construction allows multiple mounting options. Backward centrifugal fans have low profiles that do not need scroll housing. Air is discharged 360° radially from the impeller wheel. These units operate very efficiently at high pressures.
(2)Product Features
1. Material: Impeller: sheet aluminum
Rotor: coated in black
2. Bearings: Maintenance-free Ball Bearings
3. Direction of rotation: Clockwise rotation viewing rotor
4. Approval: All models have reached UL approval, CE approval and CCC approval
5. Motor protection: All models are fitted with an internal Thermal Overload Protection Device.
(3)Typical applications
Exhausting industrial processes, roof and building ventilation, cleanroom and other sensitive HEPA filtering application, laboratory and research facility ventilation, air conditioner, heat exchangers, in-line duct blowers, range hood, fire place inserts, humidifiers, dehumidifiers, hand dryer.
2. Brief Introduction of Backward Centrifugal fan YWFB4E355
—Material: Impeller: sheet aluminum
Rotor: Coated in black
—Number of blades: 6
—Direction of rotation: Clockwise, seen on rotor
—Type of protection: IP54 or IP44
—Insulation class: B or F
—Mounting position: Shaft horizontal or rotor on bottom; rotor on top on request(Any)
—Condensate discharges: Rotor-side
—Mode of operation: Continuous operation (S1)
—Bearings: Maintenance- free ball bearings
—Motor protection: Design with thermal overload protector
—Cable exit: variable
—Product conforming to standard: CE
—Approval: UL, CCC

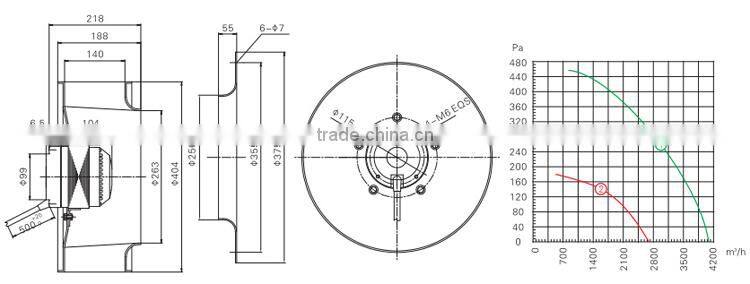

3. shape and the size of installation
4. performance parameters
Model |
Voltage V |
Frequency Hz |
Current A |
Input Power W |
Air Flow (m3/h) |
Speed RPM |
Weight Kg |
Capacitor uF |
Noise (dBA) |
Curve No. |
YWFB4E450 |
230 |
50 |
2.39 |
550 |
5600 |
1340 |
11 |
12 |
74 |
1 |
YWFB4D450 |
400 |
50 |
1.0 |
510 |
5100 |
1310 |
11 |
/ |
74 |
1 |
YWFB6E450 |
230 |
50 |
1.4 |
300 |
3900 |
900 |
8.7 |
10 |
60 |
2 |
YWFB6D450 |
400 |
50 |
0.9 |
330 |
4000 |
940 |
8.7 |
/ |
60 |
2 |
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.
We professionally manufacture various fans and motors,which widely used in ventilation,air condition,cooling
and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.
Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,being
the greast contribution",which establish the famous brand of "Fengda".We have gotten CE certificates and ISO9001
Quality Management System Certification.And our products are exporting to Europe and America,Middle East,Russia etc.
Single packing in one carton
1.Warranty:1 year warranty for all products.
2.Products Quality:100% products inspection before delivery.
3.Just in time delivery: Normally,lead time is 30 days.
4.Customized Service: As we have our own molding department,customized service can be provided.
5.Prompt customers services:E-mail will be replied in 24 hours.
1. Q: What information do you need to provide in order to get a question?
A: Generally,information about size,Air Flow,Voltage of required fans is needed in order to
select a right fan for you and provide you a quation.
2. Q: Can I have samples for testing before ordering products?
A: Yes,we sincerely suggest that customers should be have samples of required fans for testing because
the truly performace of fans can be fully demonstrated after testing is conducted.
3. Q:Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity.If annual usage quantities increase,please provide the information to our sales.We will provide you a furth discount.
4. Q:What is the warranty of products?
A: All of our products have 1 year warranty.Every product has its own production code.This code is
able to track the productiuon time.
1.Duct Fan
2.FFU
3.Ventilation System
4.Air Conditioner Unit
5.Heat Recvery Unit
6.Cabinet conditioner
