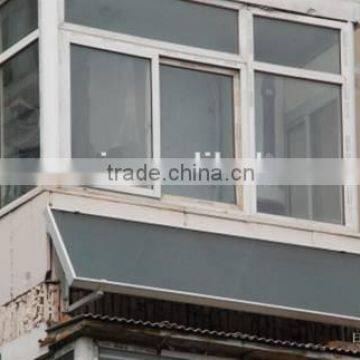

Quality Assured Flat Panel Balcony Solar Water Heater
- Shanghai Ningbo
- Credit Card
You May Like
-
Convenient Installation Balcony Split Solar Water Heater
-
High Quality Flat Panel Pressured Solar Water Heater 5 Years Warranty
-
Best Selling 100l Flat Panels Solar Water Heater
-
Elegant Look Compact Flat Panel Solar Water Heater
-
China Supplier Small Capacity Flat Plate Solar Water Heater
-
Hot Sale Split Panel Solar Water Heater for Mauritius Market
Product Details
| Type | Flat-Plate | Pressure | Pressurized | |
| Circulation Type | Direct / Open Loop (Active) | Heating System | Batch / ICS (Passive) | |
| Connection Type | Split | Installation | Freestanding | |
| Housing Material | Other, Color Steel | Certification | CE, Other, CE, ISO9001 | |
| Capacity | 100 | Place of Origin | Zhejiang, China | |
| Brand Name | Shinesea | Model Number | HX-FP-BT-100 |
Product Description

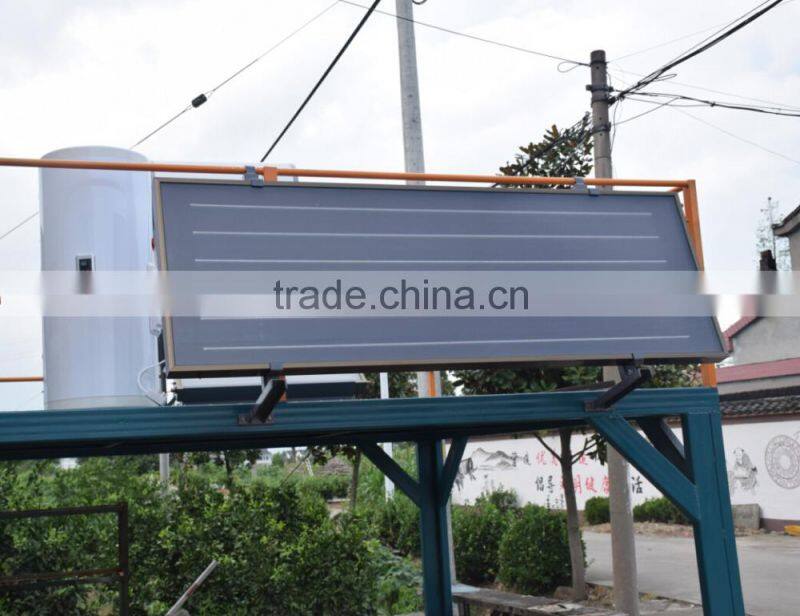

Quality assured flat panel balcony solar water heater
1.Patterned temper glass or low iron temper glass (4mm thickness) offers the best capability of durability, strength.
2.Blue sputtering coating has high absorption rate and heating efficiency.
3.Since there are no adhesive or mechanical joints, nothing will deteriorate with usage and high temperature.
4.Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
Flat plate solar water heater specification:
Solar Water Heater Tank part | |
Material Details | |
Inner tank material | SUS304-2B stainless steel with 1.0-2.0mm thickness |
Outer tank material | color steel with 0.5mm thickness or stainless steel with 0.5mm |
Hail resistance | 25mm |
Insulation material | 50-60mm foaming polyurethane |
Capacity | 100L--500L |
Installation angle | 20,38,40,45 |
Frame material | aluminium alloy/Galvanised Steel |
Reflector material | aluminium or stainless steel |
Optional electrical heater | 1.5~3.0KW |
| Flat panel solar water heater model | HX-FP-SP-100 |
| Copper Riser Tubes Spec. & Qty(mm) | Dia10 * 0.50 * 1886*8pcs copper |
| Copper Header Tubes Spec. & Qty(mm) | Dia 22 * δ0.6 * 1060 |
| Copper Absorber Fin Spec. & Qty(mm) | Bluetec 125 * δ0.15 ,8pcs, all cooper fin, ultrasonic welding |
| Spectrum Absorber Coating | Blue sputtering |
| Optical Performance | absorption ~95%,emission ~5% |
| Insulation Material | 50 mm fiber glass |
| Frame | 2.0mm thickness aluminum alloy frame |
| Glass | Pattern tempered glass,transmission >92%.3.2mm |
| Gross Area | 1.92m2 |
| Aperture Area | 1.85m2 |
| Heat Transfer Fluid | portable water and other heat transfer fluid |
| Backing Sheet | 0.5mm embossed aluminuml |
| Net Weight for solar collector (kg) | 35 |
| Gross Weight for solar collector (kg) | 40 |
| Working Pressure | 0.6Mpa |
| Conversion Factor | 0.737 |
| Heat transfer coefficient a1 | 4.597W/(m2k) |
Temperature dependent heat transfer coefficient a2 | 0.003W/(m2k) |
| Testing Pressure | 1.2Mpa for 5 minutes |
| Flat plate solar collector size | 1pcsx 2400x800x80mm |
| Tank capacity | 100L |
1.) Package: Standard carton package with PE foam protection.
2.) Shipping Period: 7—10 days after receiving deposit

1.) Inquiry Response: Your Inquiry will be replied within 24 Hours
2.) Sample Order:3--7 Days for sample order
3.)Can do OEM Basing on your detailed Request
