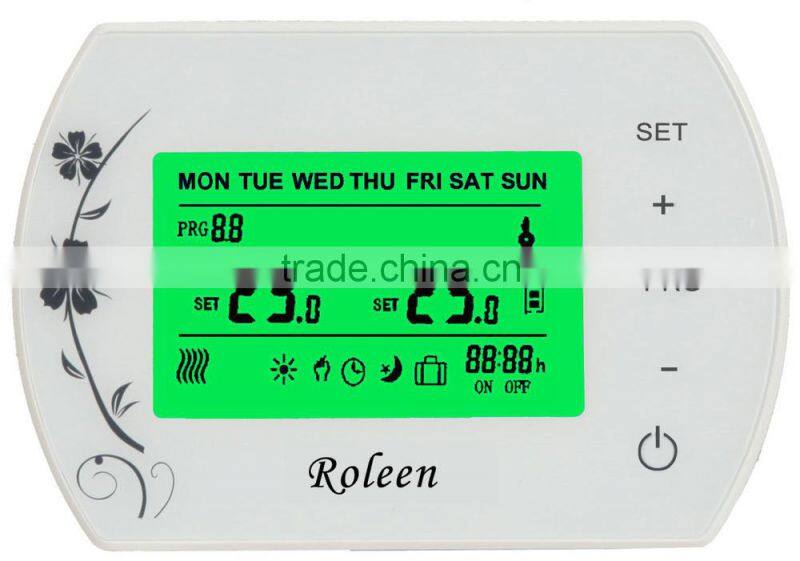

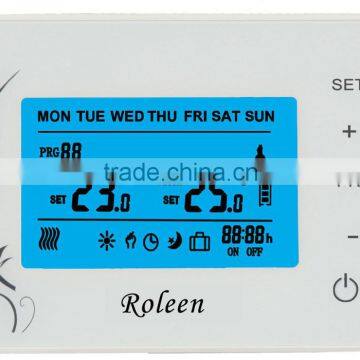

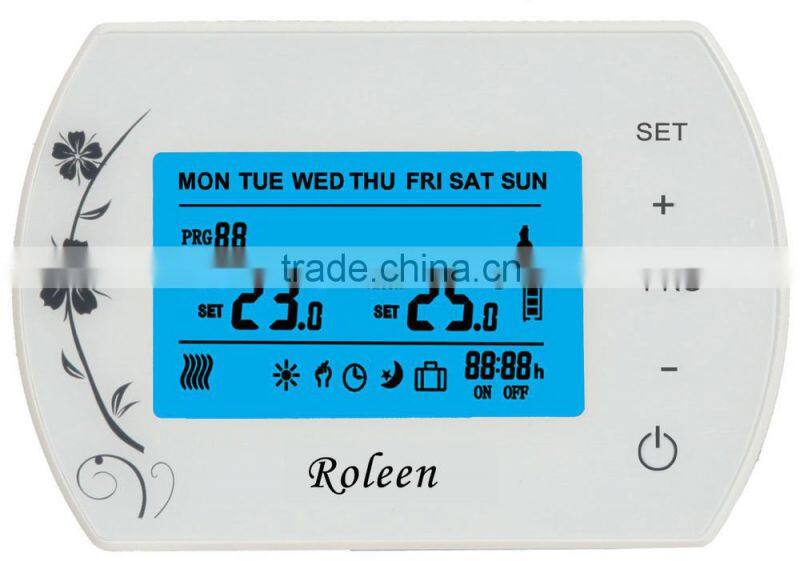

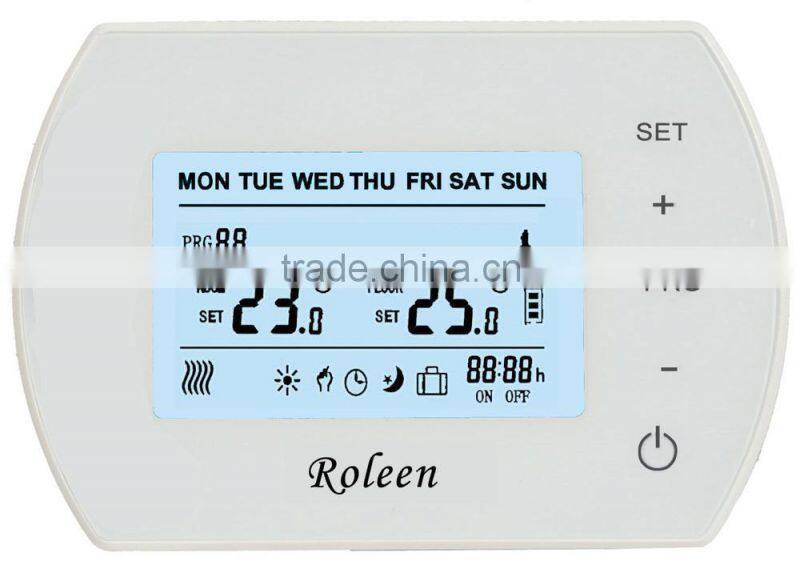

R309 Series Wall-mount 5+2 Day Wired Programmable Touch Screen Heating Thermostat
R309 Series Heating Thermostat is with stylish design, and take use of advanced technology of single-chip microcomputer. By comparing different temperature between ambient room temperature and set point, thermostat controls relays of heating equipments switching on or switching off to make the room constantly and energy-savingly.
A programmer allows you to set ‘On’ and ‘Off’ time periods ( 5 Weekdays, Saturday and Sunday, 6 Time Zone) to suit your own lifestyle. The pre-set floor temperature is to protect heating equipments from over-heat damage, to keep the whole heating system safety, reliable and energy-saving.
Application
R309 is used to control theroom temperature in Heating or Coolingsystems. Typically applications include: Homes,Residential buildings,Schools,Offices
The Controller can be usedtogether with following equipment or device:Thermal Valves or ZoneValves,Combi Boilers,Gasor Oil Burners,Fans,Pumps
Features
Advanced Technology, Good Anti-interference
5 Working Modes: Automatic Mode, Comfort Mode, Energy SavingMode and Frost Protection Mode
Programmable, 5 Weekdays+2 Weekends 6 Time Zones On/offSettings( 7 days 24 Hours Setting is customized)
Frost Protection, etc.
Buttons Lock for Child Proof
Universal mounting
Basic Specification
| Power Supply: | Thermostat:3V DC(2 x AA1.5 V) Receiver:AC90V~AC240V,50/60 Hz |
| Current Load: | 5A |
| Ambient Temp. Range: | 0~99.5℃ |
| Setpoint Range: | 5~35℃ |
Floor Setpoint: |
20~90℃ |
Accuracy/Tolerance : |
+/-1℃ |
| TimingTolerance : | <1% |
| Thermistor: | NTC10 Ω@25 ℃ |
| Storage Conditions Temp: | -10~60 ℃ |
| Humidity: | <90% r.h. |
