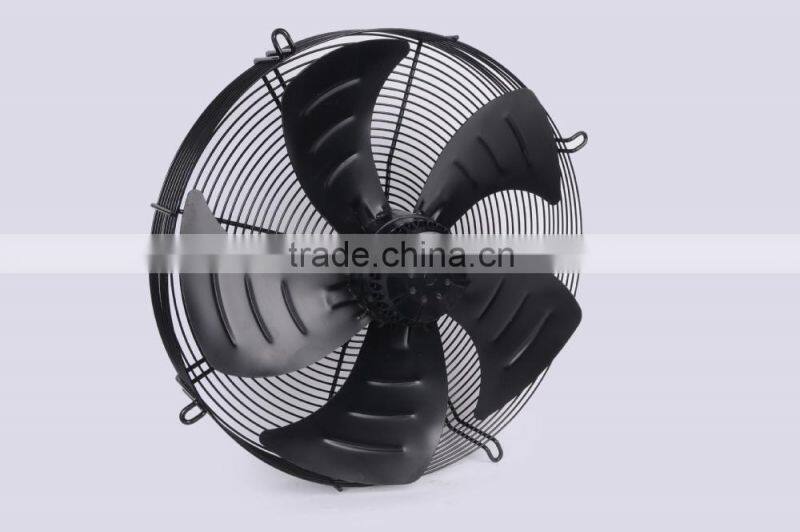

25 Inch UL Aproval 220V ac Single Phase Axial Fan With External Rotor Motor Fan

25 Inch UL Aproval 220V ac Single Phase Axial Fan With External Rotor Motor Fan photo-1
25 Inch UL Aproval 220V ac Single Phase Axial Fan With External Rotor Motor Fan photo-2
25 Inch UL Aproval 220V ac Single Phase Axial Fan With External Rotor Motor Fan photo-3
25 Inch UL Aproval 220V ac Single Phase Axial Fan With External Rotor Motor Fan photo-4
25 Inch UL Aproval 220V ac Single Phase Axial Fan With External Rotor Motor Fan photo-5
25 Inch UL Aproval 220V ac Single Phase Axial Fan With External Rotor Motor Fan photo-6
US$ 10 - 50 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Wall Fan
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Electric Current Type AC
Blade Material Stainless Steel
Mounting Wall Fan
Place of Origin Zhejiang, China
Brand Name FENGDA
Model Number YWF
Power 750W
Voltage 220/380V
Air Volume 12000
Speed 900/1310rpm
Certification CCC, CE, CSA, GS, ROHS, UL
After-sales Service Provided Overseas third-party support available

25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan



Product Description

 25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan



Model

Voltage

  V

Frequency

  Hz

Current

   A

Input Power

  W

Speed

   RPM

Air Flow

  m3/h

Capacitor

   uF

Noise

  dB(A)

Curve
YWF4D630380501.6750131012000  /781
YWF4E630220503.55750131011000  16782
YWF6D630380501.34509008850   /753
YEF6E630220502.554709008850  12753

  25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan 25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan

YWF series external rotor motors have two kinds ,single phase asynchronous capacitor fan motor and three phases

asynchronous fan motor.The Voltage of single phase motor is 120V,60Hz,220-240V,50/60Hz.The Voltage of three phases  motor is 380V,50Hz,or according to customer's requirements.



Fan diameter is from 200mm-900mm.



The using life is over 30000 hours.





Company Information

   FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.

We professionally  manufacture various fans and motors,which widely used in ventilation,air condition,cooling

and heating industry.

     We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally R &D team,high efficiency production lines and scientific  management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.

    Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,being

the greast contribution",which establish the famous brand of  "Fengda".We have gotten CE certificates and ISO9001

Quality Management System Certification.And our products are exporting to Europe and America,Middle East,Russia etc.

 25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan



25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan25 inch UL aproval 220V ac single phase axial fan with external rotor motor fan

Packaging & Shipping

 Single packing in one carton



 1.One year warranty

2.We will provide our best services for you





FAQ



1. Q: Do you provide warranty for the goods?


   A: Yes, we provide warranty for all the goods from us.



 2. Q: Could  FENGDA  provide technology support?

   A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.



 3. Q: Does  FENGDA  keep goods in stock or only trading?

   A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.



4. Q: Could you fill the invoice for customs as our requirement?
   A: Yes, if there's any requirement for it, please tell us. We'll do it.
