710mm outer rotor axial flow fan
- 50000 Piece / Pieces per Month
- NINGBO
- T/T Credit Card
You May Like
Product Details
Electric Current Type | AC | Blade Material | Stainless Steel | |
Mounting | Other, Axial fan | Place of Origin | Zhejiang, China | |
Brand Name | FENGDA | Model Number | YWF | |
Power | 1100W | Voltage | 220V or 380V | |
Air Volume | 16200 m3/h | Speed | 900RPM | |
Certification | CE, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description

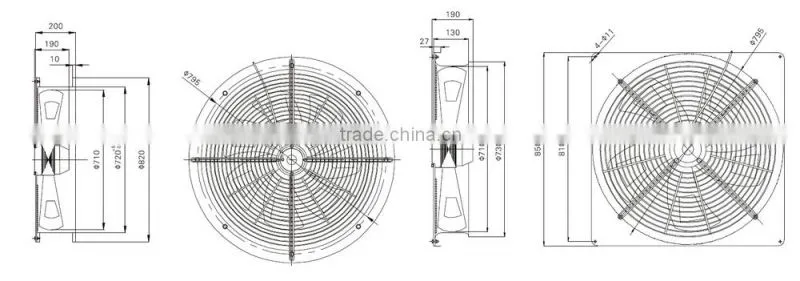

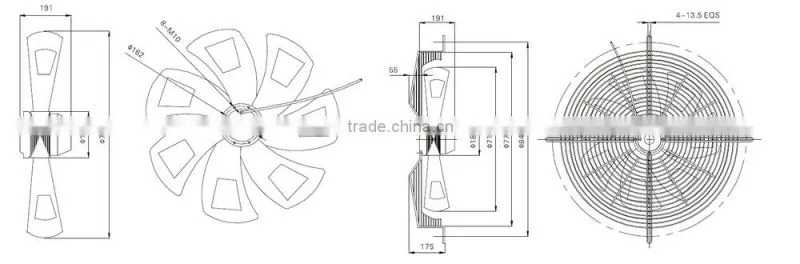

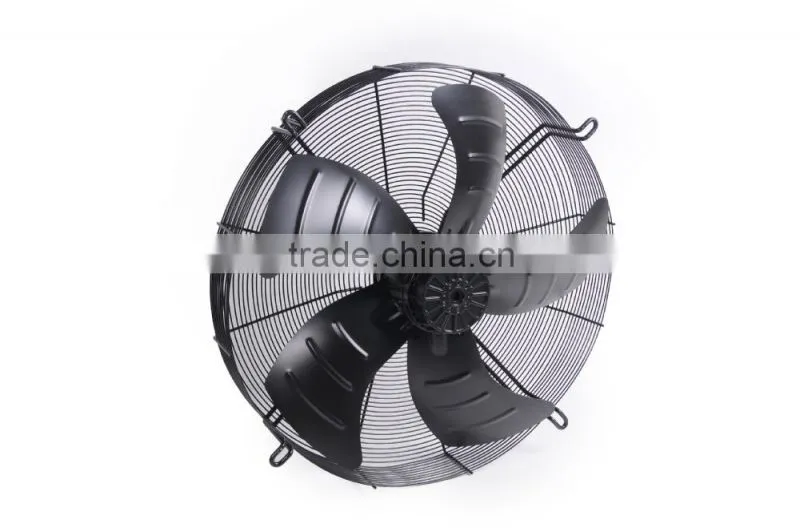

710mm outer rotor axial flow fan

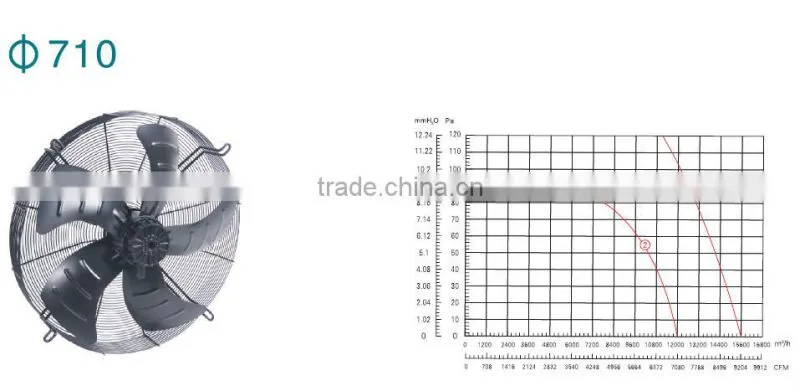

Model | Voltage V | Frequency Hz | Current A | Input Power W | Speed RPM | Air Flow m3/h | Capacitor uF | Noise dB(A) | Curve |
YWF6D710 | 380 | 50 | 2 | 1100 | 900 | 16200 | / | 80 | 1 |
380 | 50 | 1.25 | 670 | 650 | 12800 | / | 80 | 2 |
YWF series external rotor motors have two kinds ,single phase asynchronous capacitor fan motor and three phases
asynchronous fan motor.The Voltage of single phase motor is 120V,60Hz,220-240V,50/60Hz.The Voltage of three phases motor is 380V,50Hz,or according to customer's requirements.
Fan diameter is from 200mm-900mm.
The using life is over 30000 hours.
The using ambient temperature is from -30℃~60 ℃
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.
We professionally manufacture various fans and motors,which widely used in ventilation,air condition,
cooling and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying
on professionally R &D team,high efficiency production lines and scientific management ."Low noise,high
airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values
of noise, volume, temperature rising balance,lifetime are better than other factories.
Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,
being the greast contribution",which establish the famous brand of "Fengda".We have gotten CE certificates
and ISO9001Quality Management System Certification.And our products are exporting to Europe and America,
Middle East,Russia etc.
Single packing in one carton
1.One year warranty
2.We will provide our best services for you
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
