Semi Automatic Linear Edge Banding Machine With Low Price

FOB Price

US$ 5,000 - 15,000 / Set

2 Sets(Min. Order)

Port Qingdao
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	baijia	Model Number	jwb
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.high speed
2.stability
3.good quality and best price
4.good service

Company Profile

Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. We are an effective organization which is responding to the growing demand from the international

woodworking machinery market. We cooperate with reliable manufacturers which

provide qualified products and deal with the exporting business for them.

NE200 semi automatic polyvinyl chloride edge banding machine

This semi automatic polyvinyl chloride edge banding machine is applicable for the linear plane edge banding of medium density fiberboard(MDF), flake board, cabinetwork board, solid wood board and etc. The materials of the edge can be ABS, PVC, wood veneer, wood strip or melamine.

Specifications

semi automatic edge banding machine have CE certificate.It is designed for the linear edging of MDF, cabinetwork board etc.

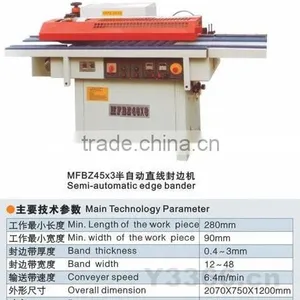

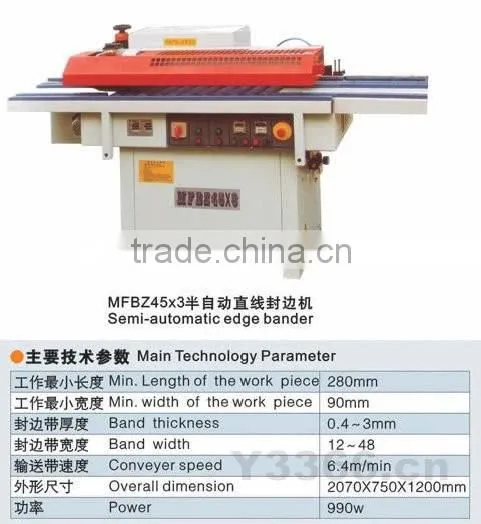

semi automatic edge banding machine

Item NO.:TZ-802

The function is gluing-fine finishing-buffing.

Thickness of tape: 0.4-3mm

Width of tape:12-45mm

Panel thickness:10-45mm

Min.panel width:80mm

Min.panel length:160mm

Panel feed speed:9.3m/min

Air pressure:0.7Mpa

Compressed air use amount:0.3m3/min
Edge-milling motor: 0.70kwx2, 18000rpm, 300Hz
Polishing motor: 180wx2, 1400rpm

Glue machine heater: 1.80kw
Labor conveyance motor: 1.1kw
Total power: 4.66kw
Machine dimensions: 2500x800x1700(LxWxH) mm
Weight: 1000kg
