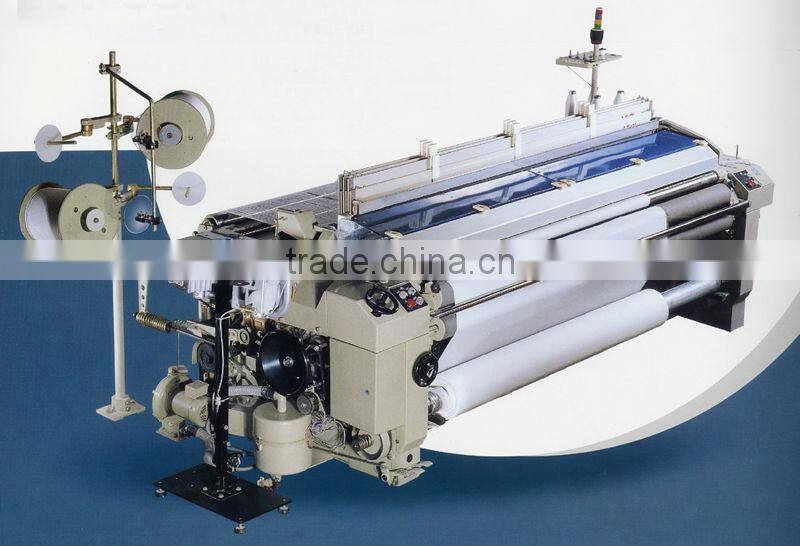

190Single Pump 2-nozzle Plain Shedding Water Jet Loom With Electronic Weft Feeder for Sale in Qingdao

water jet loom

Item

Specification

shedding system

plain shedding

Crank harness standard 4 heald frame

 (additive to 6 pieces)

cam shedding

10 piece the most

dobby shedding

16 piece the most

loom width specifications

150/170/190/210/230/240/260/280/320/360(Can be customized)

Effective work width

Maximum is standard width

(Adjustable range from standard width reduction 50-80 cm)

drive

start

Super starting motor moment drive

moter power

2.2/2.8/3.0/3.75/4.5/5.5kw

brake

Electromagnetic clutch brake

beating system

beating system

Crank shaft drive beating-up many reed feet

Beating-up dynamic range

66mm 76mm 86mm 96mm

into weft

into weft way

single nozzle:single pump single nozzle

double nozzle:single pump double nozzle

 (double pump double nozzle can choice)

pump

Spring pressure piston pump

nozzle

Clearance adjustable ring nozzle

 (stainless steel or ceramic needle can choose)

measuring & storing device

Mechanical transmission drum length measuring

(weft into automatic cycle)

double nozzle:electronic feeder

(can choose domestic and international famous brands)

weft feeler

Mechanical ground weft photoelectric induction ground weft

let-off system

let-off way

Automatic mechanical negative type continuous let off device

 (with standard)

The let-off plate size

800 mm standard

take up system

take up type

electronic take up type (standard)

Maximum cloth diameter

600 mm (cam, dobby open) 520 mm (crank open)

cutting system

Mechanical scissors device

Lubrication system

Main drive for oil bath way, centralized automatic refueling

weft density

Short fiber 5.83-233.24 filament: 2.2-135

selvage form

Planetary gear wring side mode
